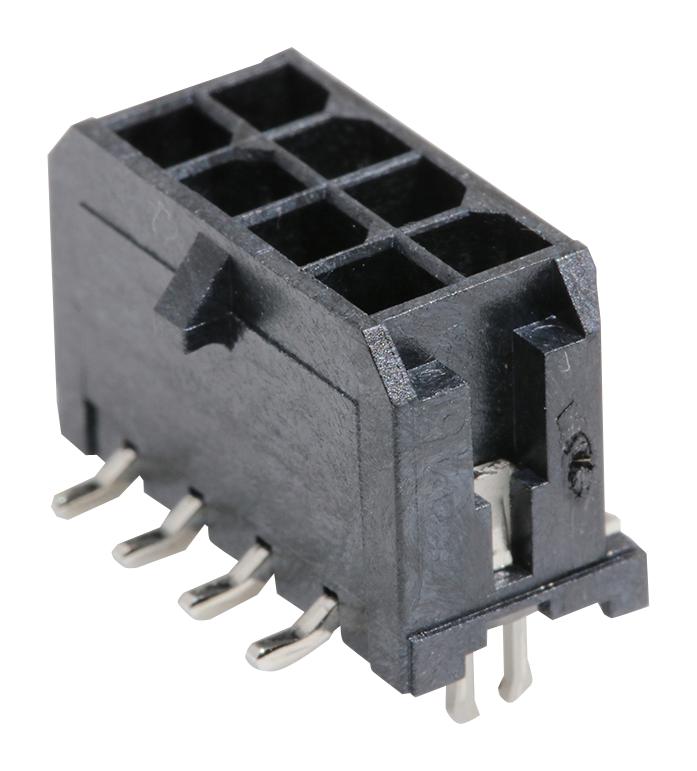

MOLEX 430450816 Power Header
The Micro-Fit 3.0 Vertical Header provides a reliable power and wire-to-board connection with a 3.00mm pitch, dual row, and 8 circuits. Made from high-temperature thermoplastic, it features gold-plated contacts, PCB press-fit, and a shrouded, stackable design suitable for high-current applications up to 8.5A and 600V. Its fluorescence resistance, reflow process compatibility, and durability of up to 30 mating cycles ensure performance in demanding environments. Certified compliant with UL, CSA, RoHS, and IEC standards, it is ideal for power distribution in electronic systems.
MOLEX 430450816 Power Header Specifications:
- Pitch: 3.00mm
- Number of circuits: 8
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High-temperature thermoplastic
- Flammability: UL 94V-0
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Durability (mating cycles max): 30
- Color - Resin: Black
- Surface Mount Compatibility: Yes
- Mated Height: 17.64mm
- PCB Thickness - Recommended: 1.60mm
- Packaging: Embossed Tape on Reel
- Shrouded: Yes
- Stackable: Yes
Buy the Molex Series Micro-Fit 3.0 Power Connector: 430450816
Secure your electronic projects with the Molex Power Header featuring 8 circuits, gold-plated contacts, and compatibility with high-temperature environments. Designed for power and wire-to-board connections, it offers high durability, UL and CSA certification, and RoHS compliance. Its compact, shrouded, and stackable design simplifies installation and ensures safe, reliable performance in demanding industrial and consumer electronic applications. Purchase online today to benefit from fast delivery, trusted quality, and superior electrical performance for your power distribution systems.
Buy Molex 430450816 now and experience unmatched reliability and high-current performance for your power distribution needs.
Frequently Asked Questions
Where can I buy MOLEX 430450816?
You can click on the BUY or RFQ button to purchase 430450816 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450816?
You can download the 430450816 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450816?
MOLEX
