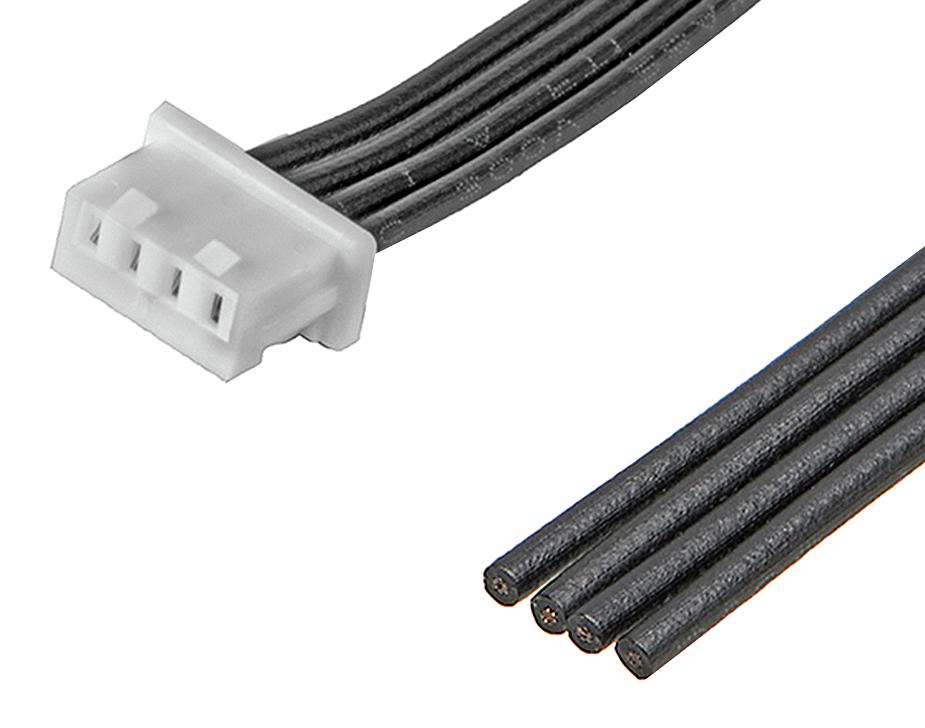

MOLEX 2181120400 PicoBlade Cable Assembly
This PicoBlade female-to-pigtail cable assembly from the 218112 series is a versatile, off-the-shelf solution designed for signal wire-to-wire and wire-to-board applications. With a 75mm length, single row, and natural color, it is compatible with various PicoBlade headers and plug housings. Made with phosphor bronze contacts plated in tin, it ensures reliable electrical connections. The assembly uses UL1061 discrete wires with polyester insulation, supporting crimp or compression termination for 28 AWG conductors. Its compact design simplifies prototyping and production tasks, making it ideal for electronic assemblies requiring durable, high-quality wire connections.
MOLEX 2181120400 PicoBlade Cable Assembly Specifications:
- Cable Length: 75.00mm
- Circuits: 4
- Color: Natural
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Wire Insulation Diameter: 0.50-1.00mm
- Wire Size: 28 AWG
- Connector to Connector: Yes
- Assembly Configuration: Overmolded
- Pitch - Mating Interface: 1.25mm
- Termination Interface: Crimp or Compression
- Supports: Signal, Wire-to-Board, Wire-to-Wire
- RoHS Compliance: China RoHS, REACH SVHC compliant
- UL Listing: UL 1061
- Number of Rows: Single
- Packaging: Bag
- Reference Drawing Number: 2181120400-000
Buy the Buy Molex PicoBlade Part Number 2181120400 Online
Purchase the Molex PicoBlade Cable Assembly online today and enjoy a reliable, durable, and easy-to-install connection solution for your electronic devices. This versatile assembly features a 75mm length, four circuits, and compatible with PicoBlade headers and plug housings, making it ideal for signal wire-to-wire and wire-to-board applications. Constructed with phosphor bronze contacts plated in tin and UL1061 certified wires with polyester insulation, it supports crimp or compression terminations. Easy to handle, this assembly is perfect for prototyping, testing, and production environments.
Order your Molex Series218112 2181120400 today and ensure reliable, high-quality wire connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2181120400?
You can click on the BUY or RFQ button to purchase 2181120400 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2181120400?
You can download the 2181120400 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2181120400?
MOLEX
