MOLEX 26481155 Wire-to-Board Connector
The Molex KK 396 Breakaway Header is a vertical, square pin electrical connector with friction lock, designed for wire-to-board applications. Featuring a 3.96mm pitch and rated for 7.0A and 250V, it is constructed with tin-plated metal and durable resin components. This environmentally compliant connector supports up to 15 circuits with a maximum of 20 circuits, with a PCB tail length of 437mm for easy mounting. Suitable for high-reliability electronic and industrial systems, it offers excellent durability with multiple mating cycles, ensuring long-term performance in various conditions.
MOLEX 26481155 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 3.96mm
- Current - Maximum per Contact: 7.0A
- Voltage - Maximum: 250V
- Material - Metal: Copper Alloy
- Material - Plating: Tin (Sn)
- Material - Resin: Polyester
- Color - Resin: Natural
- Net Weight: 6.080g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 437mm
- PCB Thickness - Recommended: Not specified
- Durability (mating cycles max): Not specified
- Flammability: UL, CSA Certified, Green compliant
- Operating Temperature Range: Not specified
- Shrouded: No
- Stackable: No

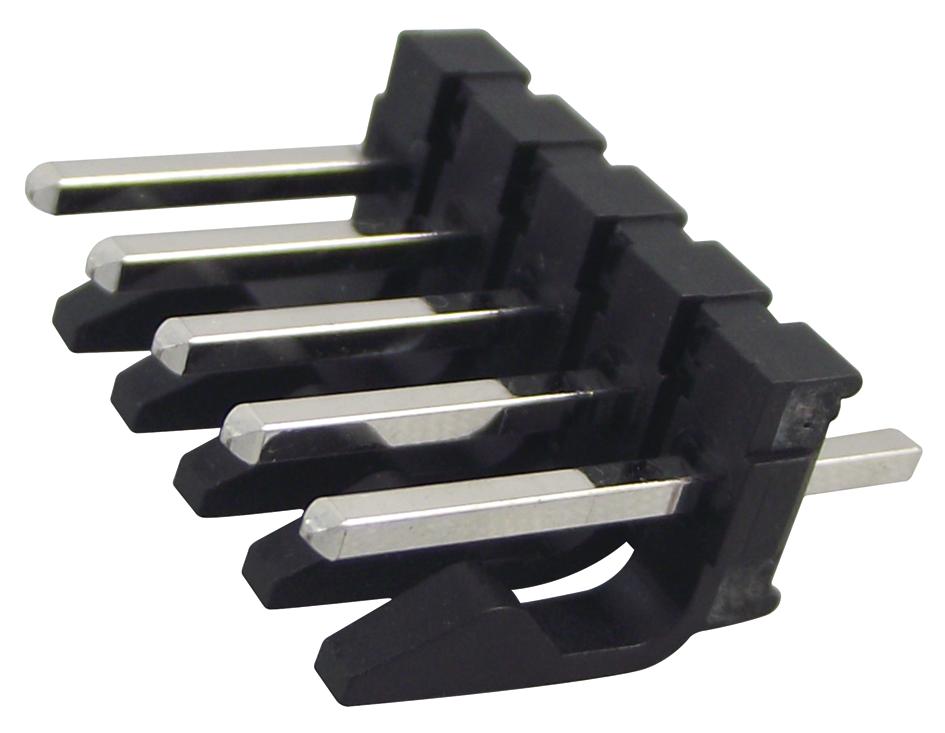

Buy the Molex Series KK KK 396 Breakaway Header: 26481155
Secure your electronic assemblies with the Molex KK 396 Breakaway Header, a durable, reliable connector rated for 7A and 250V. Its 3.96mm pitch and single-row design allow easy PCB mounting and re-mating cycles, making it ideal for industrial, automation, and consumer electronics. Constructed with tin-plated copper alloy and polyester resin, it ensures long-lasting performance. Featuring a PCB tail length of 437mm for flexible installation, this RoHS-compliant connector provides high electrical integrity and stability even in demanding environments. Order online today for fast delivery and quality assurance.
Buy Molex KK 396 Breakaway Header now and experience reliable, high-quality wire-to-board connectivity in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 26481155?
You can click on the BUY or RFQ button to purchase 26481155 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 26481155?
You can download the 26481155 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 26481155?
MOLEX
