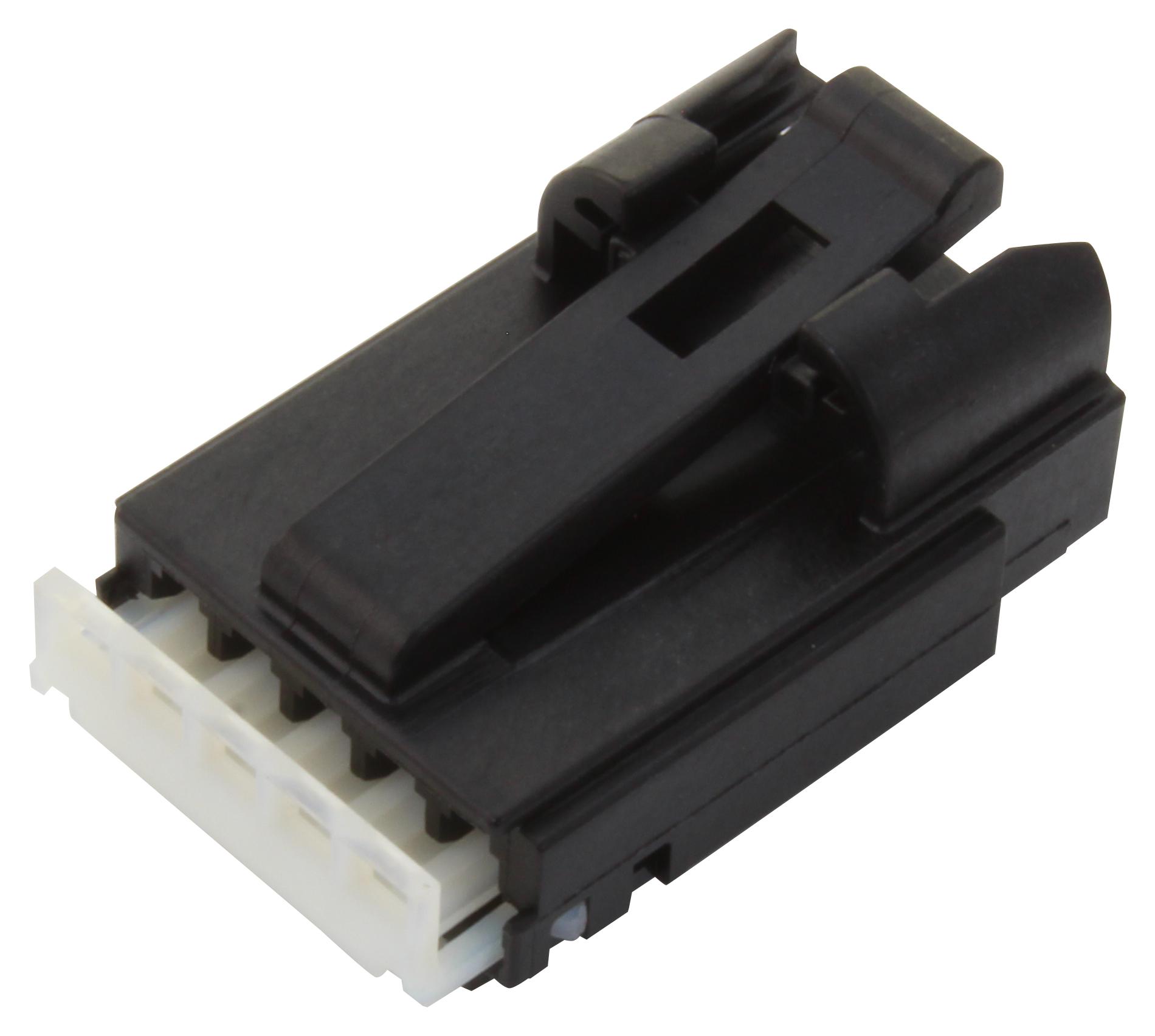

MOLEX 310721010 Power Connector
The 2.54mm H-DAC 64 receptacle assembly is a reliable, unsealed connector designed for power and data applications in various industrial environments. Featuring a single row, 5-way configuration with polarization A, it ensures secure mating and optimal electrical performance. Made from modified polystyrene and polyester, it is temperature rated from -40°C to +100°C, capable of supporting up to 11.0A per contact. This connector is RoHS, REACH, and EU ELV compliant, suitable for applications requiring durable, environmentally friendly components.
MOLEX 310721010 Power Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 1
- Circuits: 5
- Color - Resin: Black, White
- Gender: Receptacle
- Material - Resin: Modified Polystyrene, Polyester
- Temperature Range - Operating: -40°C to +100°C
- Current - Maximum per Contact: 11.0A
- Packaging Type: Bag
- Panel Mount: No
- RoHS, REACH, EU ELV and Low-Halogen compliant
- Assembly: Power, Wire-to-Board, Wire-to-Wire
- Lock to Mating Part: None
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Polarized to Mating Part: Yes
- Reference - Drawing Numbers: AS-31067-100-001, PK-30907-737, PK-31301-076
Buy the Molex 310721010 – Reliable Power and Data Connector for Industrial Applications
Purchase the Molex 310721010 power and data connector online today for reliable performance in industrial applications. With a 2.54mm pitch and 5 circuits, it ensures secure, high-quality connections. Made from environmentally friendly materials, it supports up to 11A per contact and operates from -40°C to +100°C. Its polarization and locking features provide added security, making it suitable for power and data systems needing durable, RoHS-compliant components. Buy now for a dependable connection solution that meets strict industry standards.
Get Molex 310721010 today—built for precision, durability, and secure power and data connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 310721010?
You can click on the BUY or RFQ button to purchase 310721010 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 310721010?
You can download the 310721010 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 310721010?
MOLEX
