MOLEX 152670225 FFC Jumper

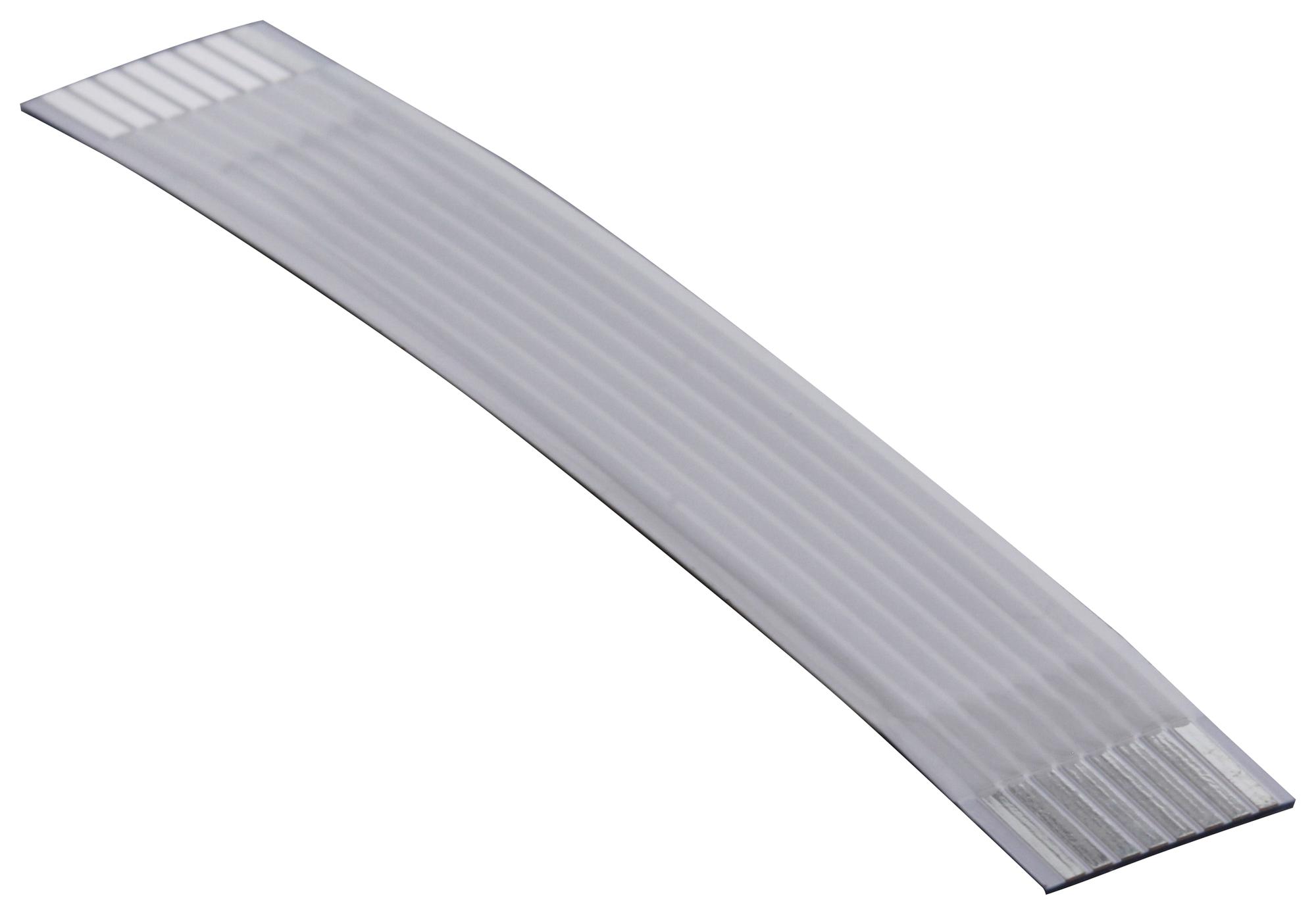

The Premo-Flex Cable Jumper is a flexible flat cable designed with a 1.00mm pitch and 8 circuits, suitable for low-profile electronic connections. It features same-side contacts (Type A), tin plating for corrosion resistance, and a cable length of 0.051 meters. Ideal for compact device interconnects, this cable supports operating temperatures from -40°C to +105°C, handling up to 1.2A and 60V AC. Compatible with easy-on FFC/FPC connectors, it is RoHS and China RoHS compliant, ensuring environmentally friendly and reliable performance in electronic assemblies.
MOLEX 152670225 FFC Jumper Specifications:
- Pitch - Mating Interface: 1.00mm
- Circuits (Loaded): 8
- Cable Length: 0.051m
- Material - Plating Mating: Tin
- Temperature Range - Operating: -40°C to +105°C
- Wire Size AWG: Not specified
- Current - Maximum per Contact: 1.2A
- Voltage - Maximum: 60V AC
- Material Info: Flat Flex Cable
- Packaging Type: Bag
- Reference - Drawing Numbers: PS-15267-001-001
- RoHS & China RoHS Compliant, Halogen-Free: No
- Certifications: RoHS compliant
- Status: Active
Buy the Molex Series Premo-Flex FFC Jumper: 152670225
Experience the high-quality reliability of Molex 152670225 Premo-Flex FFC Jumper. Designed with an 8-circuit configuration and 1.00mm pitch, this flexible cable offers optimal performance for space-constrained electronic devices. The 0.051m long cable features tin-plated contacts for corrosion resistance and supports up to 1.2A current and 60V AC voltage ratings. Its operating temperature range from -40°C to +105°C makes it suitable for various demanding environments, ensuring dependable connections in industry applications.
Get Molex 152670225 today—built for reliable flexible flat cable interconnects in compact electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 152670225?
You can click on the BUY or RFQ button to purchase 152670225 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 152670225?
You can download the 152670225 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 152670225?
MOLEX
