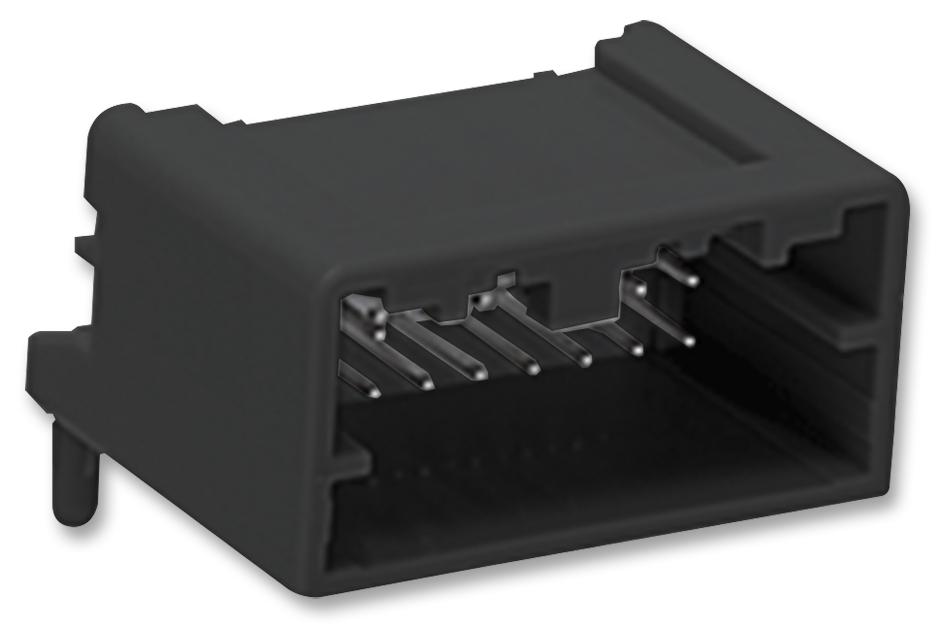

MOLEX 348260124 Mini50 Power Connector
The Mini50 Unsealed Right-Angle Header is a high-quality, dual-row, 12-circuit connector designed for power and signal applications. Made from durable high-temperature thermoplastic with brass contacts plated in tin over nickel, it features a compact right-angle design with a 2.80mm pitch. Suitable for PCB mounting with through-hole termination and operating from -40°C to +105°C. It is RoHS and ELV compliant, offering up to 4A maximum current and 500V DC voltage ratings. Ideal for wire-to-board connections in various electronic assemblies.
MOLEX 348260124 Mini50 Power Connector Specifications:
- Series: Mini50
- Number of Circuits (Loaded): 12
- Maximum Circuits: 12
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- Orientation: Right Angle
- Pitch - Mating Interface: 2.80mm
- PC Tail Length: 2.00mm
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V DC
- Durability (mating cycles max): Not specified but designed for high durability
- Packaging: Tray
- RoHS: Compliant
- ELV: Compliant
- Halogen-Free: Yes
- Guide to Mating Part: 34824 Mini50 Receptacle
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
Buy the Molex Series Mini50 Power Signal Connector: 348260124
Enhance your electronic projects with the Molex Mini50 Power and Signal Connector featuring 12 circuits, right-angle design, RoHS compliance, and durable materials. Engineered for reliable wire-to-board connections, it supports high current loads up to 4A per contact and operates within a temperature range of -40°C to +105°C. This high-quality, sealed connector comes with a tray package for easy handling and storage. Choose Molex for precision, reliability, and long-lasting performance in your manufacturing and repair needs.
Get Molex 348260124 today—built for precision and long-lasting durability in electronic assemblies.
