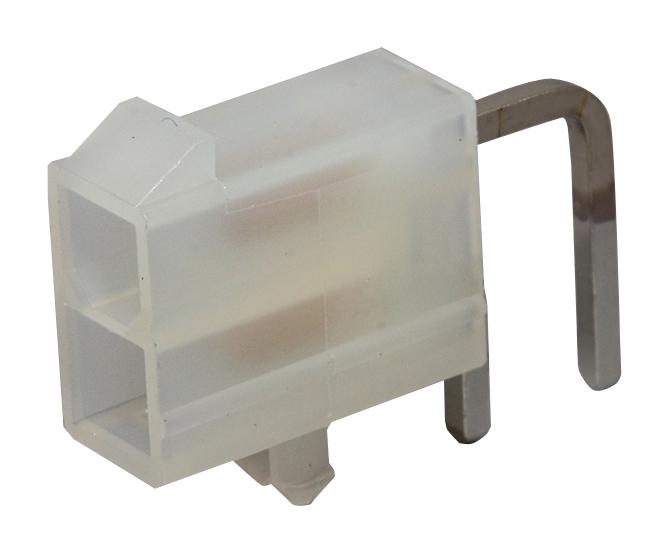

MOLEX 39301021 Power Connector
Mini-Fit Jr. power connector with dual row, right-angle design, featuring snap-in plastic peg PCB lock, 2 circuits, gold-plated contacts, and PA Polyamide Nylon 6/6 housing. Rated for 13A per circuit, voltage up to 600V, operating temperature -40°C to +105°C. Suitable for wire-to-board applications, with 94V-2 flammability rating, CSA and UL certification, and high durability up to 30 mating cycles. Gold and matte tin plating options ensure reliable electrical contacts and corrosion resistance. Compact, polarized, and shrouded design ensures proper alignment and secure connections, ideal for power distribution in industrial equipment and electronics.
MOLEX 39301021 Power Connector Specifications:
- Number of Circuits: 2
- Orientation: Right Angle
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Matte Tin
- Current Max: 13A per circuit
- Voltage Max: 600V
- Temperature Range: -40°C to +105°C
- Flammability: 94V-2
- Durability (mating cycles): 30
- Dimensions - Pitch Mating Interface: 4.20mm
- Dimensions - Pitch Termination Interface: 4.20mm
- Net Weight: 0.867g
- PCB Thickness - Recommended: Not specified
- Termination Interface: Through Hole
- Guide to Mating Part: 5557 Mini-Fit Jr. Receptacle Housing
- Polarized to PCB: Yes
- Shrouded: Fully
- Ingress Protection: Not specified
- Certifications: CSA, UL
- Temperature Range: -40° to +105°C
- Process Data: Max process temperature 240°C, process duration at max temperature (seconds): 5, max cycles at max temperature: 1
Buy the Molex 0039301021 – Reliable Power Connector for Industrial Applications
Enhance your electronic or industrial power systems with this high-quality power connector. Featuring dual circuits, gold-plated contacts, and a durable nylon housing, it ensures secure, reliable connections. Rated for 13A and up to 600V, it operates efficiently from -40°C to +105°C, meeting UL and CSA standards. Its polarization and shrouded design prevent improper mating, making installation safe and straightforward. Perfect for applications requiring high power capacity, durability, and compliance in demanding environments.
Buy Molex 0039301021 now and experience unmatched reliability and performance in power distribution for industrial and electronic equipment.
Frequently Asked Questions
Where can I buy MOLEX 39301021?
You can click on the BUY or RFQ button to purchase 39301021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39301021?
You can download the 39301021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39301021?
MOLEX
