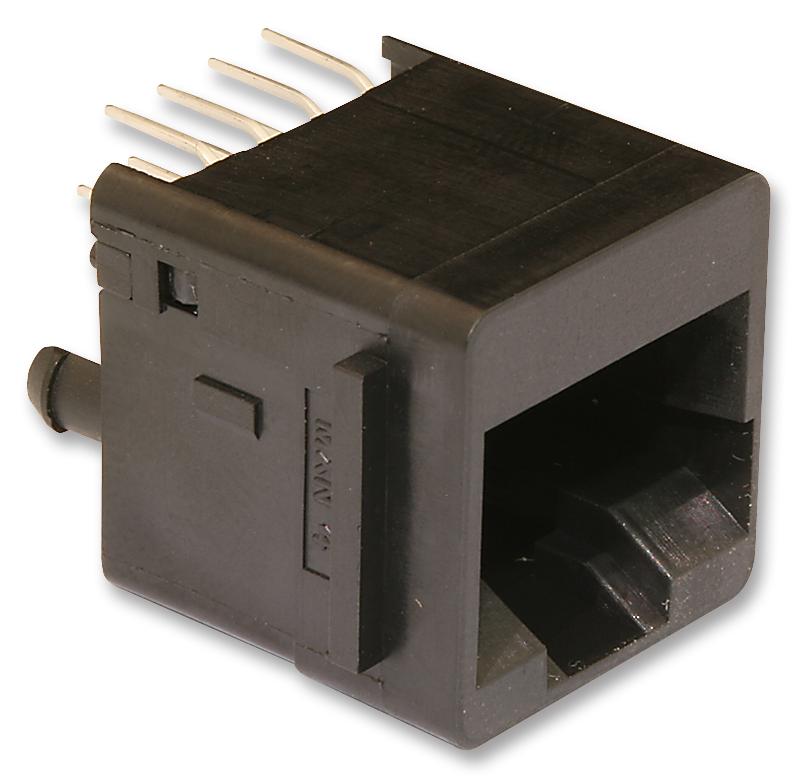

MOLEX 424108312 RJ45 Ethernet Jack
This modular jack is a vertical, flangeless RJ45 connector designed for power over Ethernet (PoE) applications. Crafted from durable phosphor bronze with gold and tin plating, it features an 8/8 port configuration, a height of 16.38mm, and supports up to 125V. Suitable for through-hole mounting with a recommended PCB thickness of 1.60mm, it ensures reliable connectivity with a maximum current per contact of 1.5A. RoHS compliant, it guarantees eco-friendly, high-performance networking in professional installations.
MOLEX 424108312 RJ45 Ethernet Jack Specifications:
- Product Family: Series 42410
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Color - Resin: Black
- Durability (mating cycles max): N/A
- Flammability: UL 94V-0
- Inverted / Top Latch: None
- Jack Height: 16.38mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 2.726 grams
- Orientation: Vertical (Top Entry)
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Pitch - Mating Interface: 1.27mm
- Pitch - Termination Interface: 1.27mm
- Plating min - Mating: 1.270µm
- Plating min - Termination: 2.540µm
- Port Configuration: 8/8
- Positions / Loaded Contacts: 8/8
- Surface Mount Compatible: No
- Temperature Range - Operating: -40°C to +80°C
- Termination Interface: Style: Through Hole
- Wire/Cable Type: N/A
- Current - Maximum per Contact: 1.5A
- Shielded: No
- Voltage - Maximum: 125V
- Process Temperature max: 235°C
- RoHS Compliant: Yes
- Halogen-Free: No
- Status: Active
Buy the Buy Molex Modular Jack Part Number 424108312 Online
Purchase the Molex RJ45 Ethernet Jack for robust PoE applications. This high-quality, through-hole modular connector features gold and tin plating, supports up to 125V, and is rated for 1.5A per contact. Designed for lasting durability with a height of 16.38mm, it offers excellent connectivity in network setups. Easy to install with PCB retention, it’s RoHS compliant and suitable for various professional networking projects, ensuring dependable performance and eco-friendly standards.
Order your Molex Series42410 RJ45 modular jack 424108312 today and experience reliable, high-quality Ethernet connectivity for professional networking projects.
