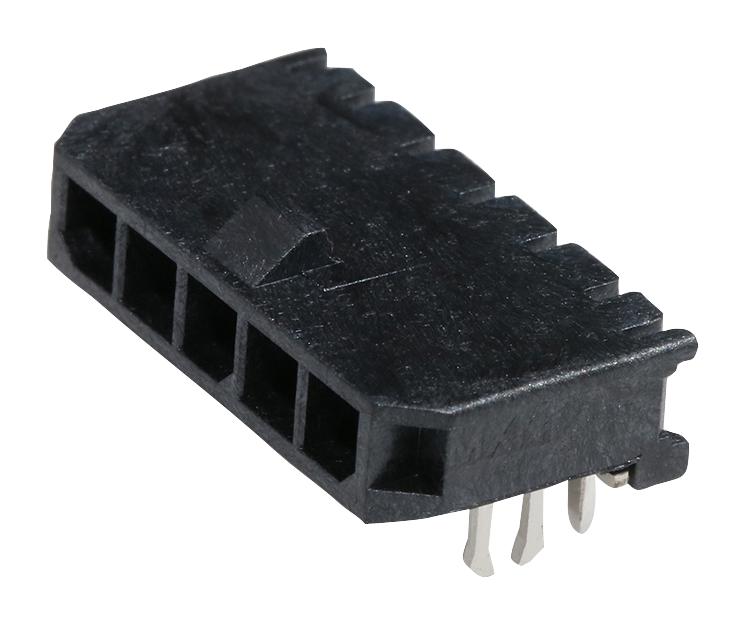

MOLEX 436500509 Micro-Fit 3.0 Header
The MOLEX 43650-0509 is a Micro-Fit 3.0 right-angle header, part of the 43650 series, designed for robust power and wire-to-board connections. This header features a 3.00mm pitch, a single row configuration with 5 circuits, and incorporates a PCB press-fit metal retention clip for secure mounting. The tin plating on both mating and termination interfaces ensures excellent solderability and conductivity. It is Glow-Wire Capable, meeting IEC 60335-1 safety standards, and is RoHS compliant, demonstrating commitment to environmental responsibility. Suitable for applications requiring high-temperature resistance and reliable performance.
MOLEX 436500509 Micro-Fit 3.0 Header Specifications:
- Product Family: PCB Headers
- Application: Power, Wire-to-Board
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Resin: High Temperature Thermoplastic
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability: REFLOW
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
