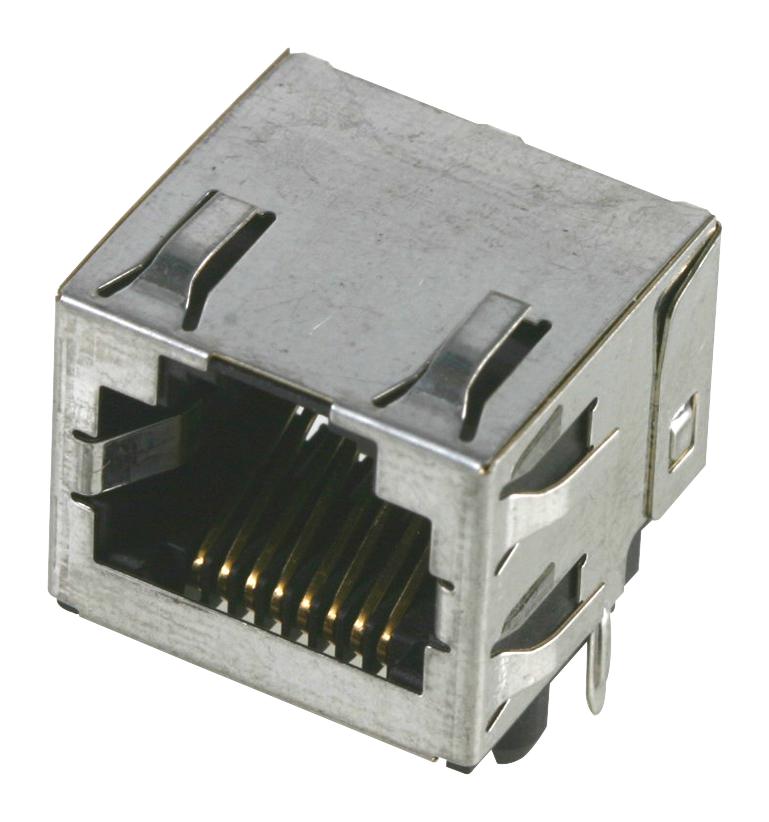

MOLEX 438600017 Modular Jack
This is a shielded modular jack designed for power over Ethernet (PoE) applications, featuring a right-angle, low-profile, inverted design with offset panel grounding tabs and lightpipes that withstand soldering temperatures of 160°C. Constructed from high-temperature thermoplastic and polycarbonate materials, it supports up to 6/6 positions, offers a maximum current of 1.5A per contact, and is rated for 150V AC (RMS). It complies with RoHS and ELV standards, making it suitable for durable, high-performance electronic connections in networking equipment.
MOLEX 438600017 Modular Jack Specifications:
- Component Type: Magnetic
- Series: 43860
- Product Family: Modular Jacks/Plugs
- Durability: N/A
- Flammability: UL 94V-0
- Color - Resin: Black, Clear
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic, Polycarbonate
- Boot Color: N/A
- Lightpipes/LEDs: Yes, withstand soldering temp of 160°C
- Jack Height: 13.54mm
- Inverted / Top Latch: Yes
- PCB Thickness - Recommended: 1.60mm
- Temperature Range - Operating: -40°C to +85°C
- Surface Mount Compatible: No
- Contact Max Current: 1.5A
- Voltage - Max: 150V AC (RMS)
- Grounding to PCB: Yes
- Grounding to Panel: Offset Panel Ground Tabs
- Shielded: Yes
- Packaging Type: Tray with Flange
- Port Configuration: 6/6
- Positions / Loaded Contacts: 6
- Solder Process Data: Wave Solder
- RoHS Compliance: Yes
- ELV Compliance: Not Low-Halogen
- Certifications: CSA, UL
- Reach Status: Not Contained
- Halogen-Free: Not Halogen-Free
- Product Name: Modular Jack for Ethernet networking applications
Buy the Buy Molex Modular Jack Part Number 438600017 Online
Purchase the Molex modular jack online for premium Ethernet network connections. Designed for durability and performance, it features shielding, a low-profile design, and high-temperature thermoplastic construction. Suitable for PoE applications, it supports 6/6 port configurations, withstanding soldering temperatures of 160°C for reliable assembly. Its compliance with RoHS and UL standards ensures safe, eco-friendly operation. Ideal for networking hardware, it guarantees secure, stable connections, reducing downtime and maintaining high performance in demanding electronic environments.
Buy Molex 438600017 now and experience unmatched reliability and performance in high-quality Ethernet connections.
