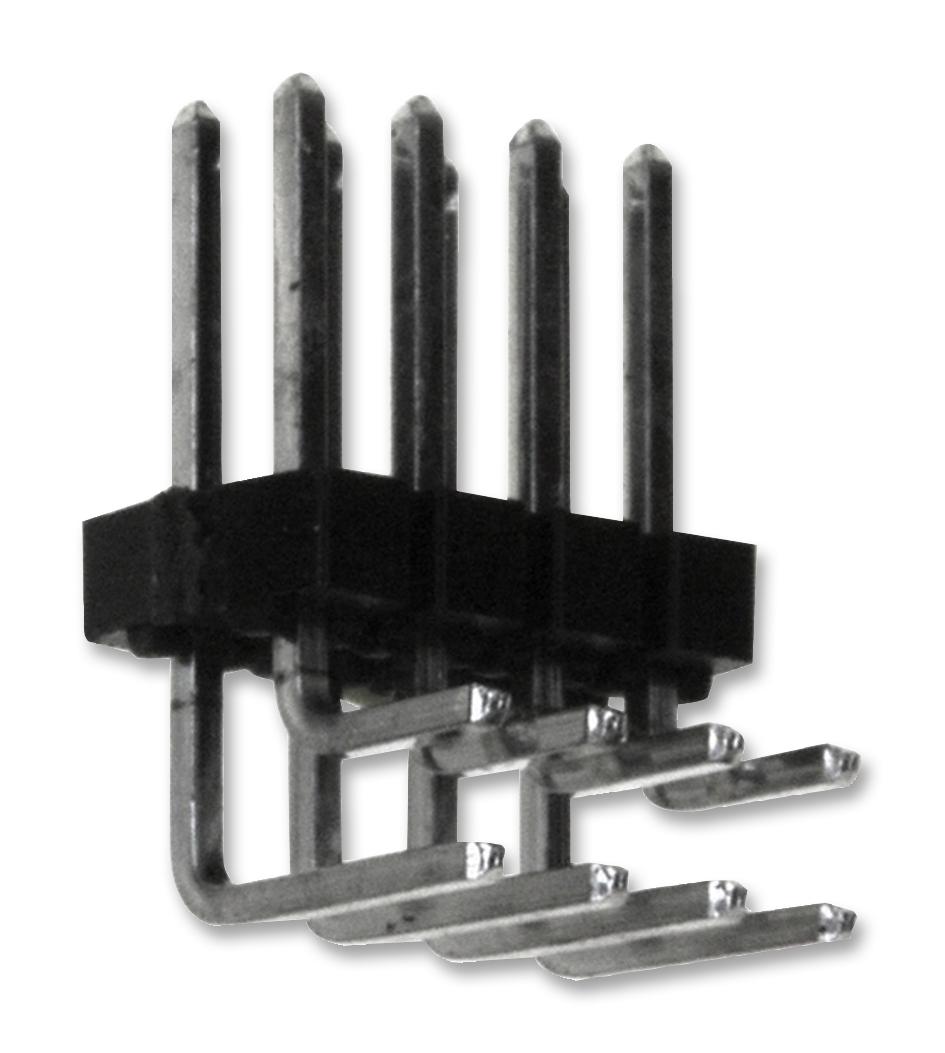

MOLEX 901220123 C-Grid Connector Header
This C-Grid III Interconnects header features a 2.54mm pitch with dual row, right-angle design, and 6 circuits. It is made of nickel-plated brass with a 94V-0 flammability rating, designed for wire-to-board connections. Suitable for operating temperatures from -55°C to +125°C, it supports a maximum voltage of 350V and current of 3A per contact. The component is RoHS and ELV compliant, with a tray packaging style, and ensures reliable mating and PCB retention, ideal for various electronic applications requiring compact, durable headers.
MOLEX 901220123 C-Grid Connector Header Specifications:
- Pitch: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 6
- Circuits (maximum): 6
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 0.498 grams
- Orientation: Right Angle
- First Mate / Last Break: No
- Temperature Range - Operating: -55°C to +125°C
- Voltage - Maximum: 350V
- Current - Maximum per Contact: 3.0A
- Solder Process Data: Lead-free, Wave Capable
- Packaging Type: Tray
- PCB Locator / Retention: None
- Lock to Mating Part: None
- Guide to Mating Part: None
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
Buy the Buy Molex C-Grid III Interconnects Part Number 0901220123 Online
Purchase the Molex C-Grid Connector Header online to ensure high-quality, reliable connections for your electronic assemblies. Featuring a 2.54mm pitch, dual-row, right-angle design, and 6 circuits, it offers versatility for wire-to-board applications. With nickel-plated brass, a temperature range from -55°C to +125°C, and compliance with RoHS and ELV standards, this component guarantees safety, durability, and efficient installation. Order now to benefit from fast shipping and expert support for your assembly needs.
Buy Molex 0901220123 now and experience reliable performance in compact, durable wire-to-board connections suitable for various electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 901220123?
You can click on the BUY or RFQ button to purchase 901220123 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901220123?
You can download the 901220123 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901220123?
MOLEX
