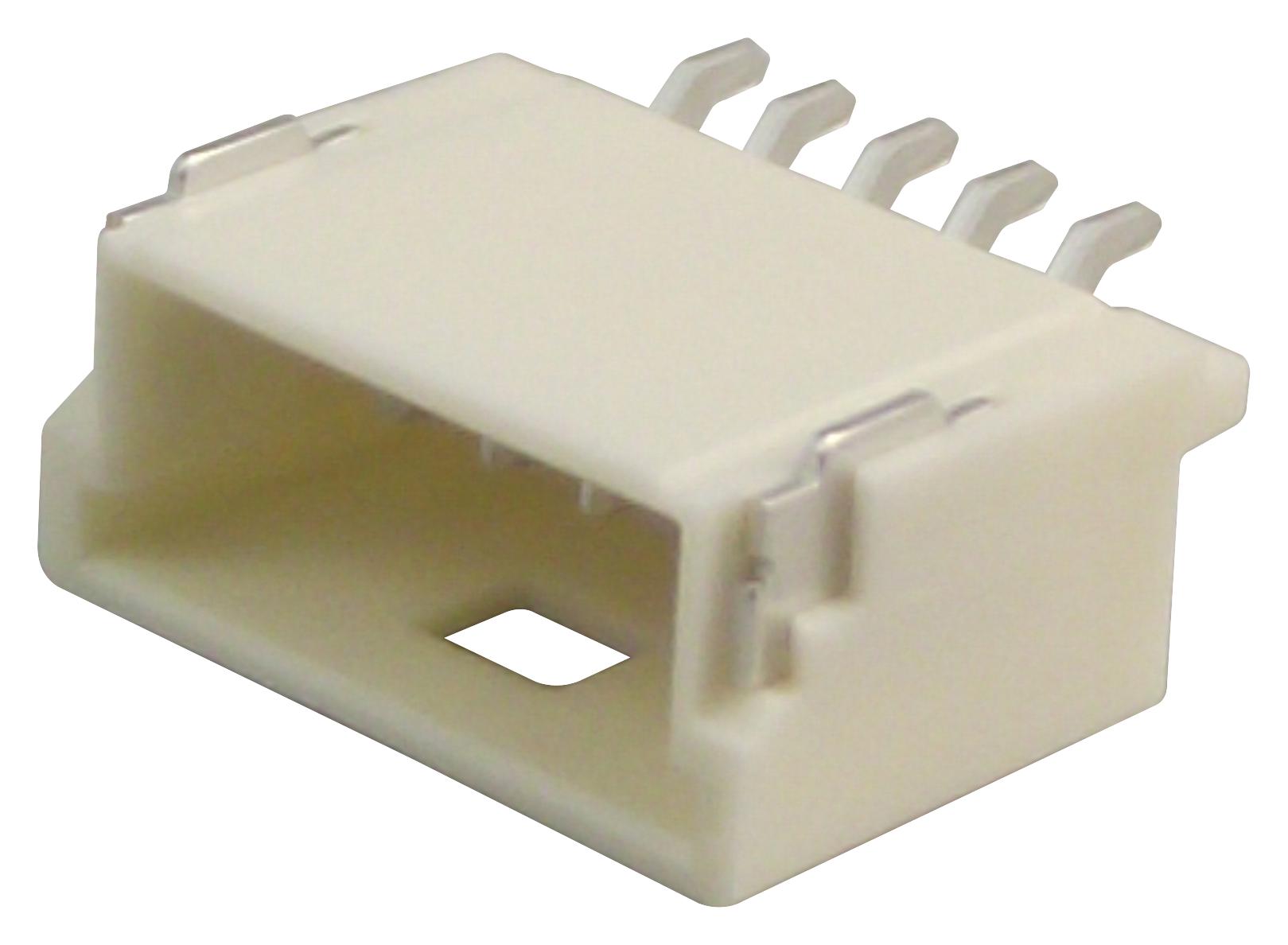

MOLEX 5015680307 Wire-to-Board Connector
The Pico-Clasp Wire-to-Board Connector is a compact, high-reliability, 1.00mm pitch surface mount connector designed for easy and secure electrical connections in space-constrained applications. Featuring a right-angle design, single row configuration, and tin plating, it supports up to 3 circuits with inner friction lock for added stability. Suitable for various electronic devices, it offers durability with up to 30 mating cycles and operates efficiently within a temperature range of -40°C to +105°C. Its lightweight nylon construction ensures easy handling and assembly in modern electronic systems.
MOLEX 5015680307 Wire-to-Board Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 3
- Maximum Circuits (Loaded): 3
- Color - Resin: Natural
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Durability: Up to 30 mating cycles
- Temperature Range - Operating: -40°C to +105°C
- Electrical Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- Orientation: Right Angle
- Packaging: Embossed Tape on Reel
- Lock to Mating Part: Yes
- PCB Locator: Yes
- PCB Retention: Yes
- Glow-Wire Capable: No
- Stackable: No
- Polarized to Mating Part: Yes
- Surface Mount: Yes
Buy the Buy Molex Pico-Clasp Wire-to-Board Connector Part Number 5015680307 Online
Order the Molex Pico-Clasp Wire-to-Board Connector with 1.00mm pitch, 3 circuits, surface mount design, and reliable tin plating. Its right-angle configuration facilitates easy placement in compact electronic systems, providing up to 30 mating cycles durability. Suitable for a wide range of applications, it ensures secure and stable connections with impressive temperature tolerance from -40°C to +105°C. Lightweight nylon housing simplifies handling and assembly, making it an excellent choice for electronics requiring compact, robust, and efficient wire-to-board connections.
Buy Molex 5015680307 now and experience reliable, space-efficient electronic connections with secure fit and high durability for your devices.
Frequently Asked Questions
Where can I buy MOLEX 5015680307?
You can click on the BUY or RFQ button to purchase 5015680307 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5015680307?
You can download the 5015680307 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5015680307?
MOLEX
