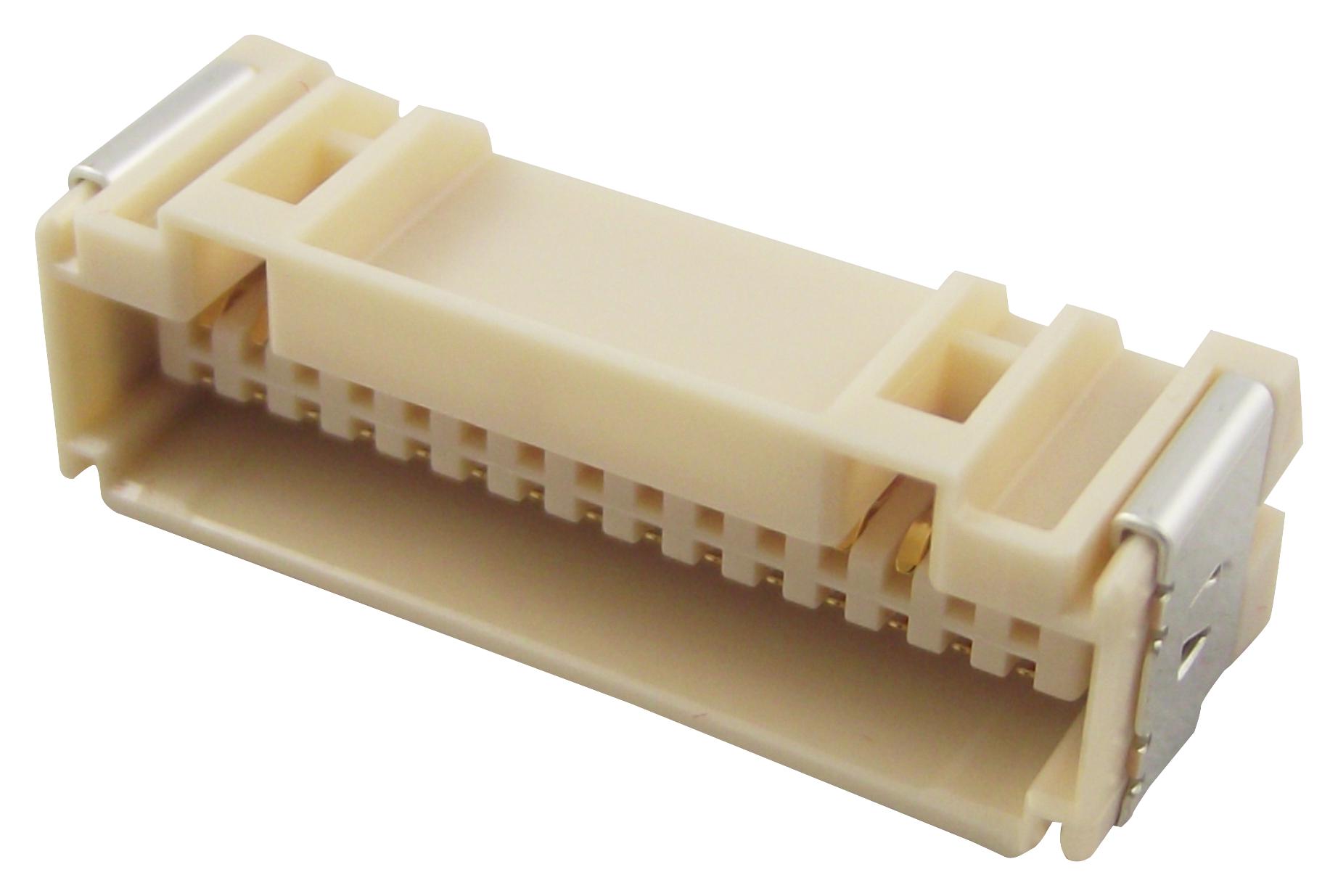

MOLEX 5020463070 Wire-to-Board Receptacle
The 5020463070 is a 1.25mm pitch Duo-Clasp wire-to-board PCB receptacle featuring dual row, right-angle design, and 0.10μm gold plating. It accommodates 30 circuits and provides secure, reliable connections for wire-to-board applications. The receptacle is constructed from durable copper alloy with tin-plated termination and polyamide resin, ensuring high performance and longevity. With an operating temperature range of -25°C to +85°C, it supports up to 1A current and 50V AC/DC voltage. Its compact design and stackable feature make it suitable for space-constrained electronic assemblies in various industries.
MOLEX 5020463070 Wire-to-Board Receptacle Specifications:
- Pitch: 1.25mm
- Number of Circuits: 30
- Maximum Circuits: 30
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Polyamide
- Color - Resin: Natural
- Durability - Mating Cycles Max: 30
- Operating Temperature Range: -25°C to +85°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- Lock to Mating Part: Yes
- Mated Height: 7.85mm
- Stackable: Yes
- Orientation: Right Angle
- Packaging Type: Embossed Tape on Reel
- Glow-Wire Compliant: No
Buy the Molex Series Duo-Clasp 1.25mm Pitch Wire-to-Board Receptacle: 5020463070
Order the Molex 5020463070 wire-to-board receptacle online today to ensure high-quality, reliable electrical connections for your electronic projects. Designed for durability and efficiency, this dual row, right-angle connector with 1.25mm pitch and 30 circuits is perfect for compact assemblies. The gold-plated contacts provide excellent conductivity, while the durable polyamide resin ensures longevity. Easy to install, stackable, and supported by RoHS compliance, it’s an ideal choice for engineers and technicians seeking premium connectors for PCB assembly in various industries.
Get Molex 5020463070 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 5020463070?
You can click on the BUY or RFQ button to purchase 5020463070 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5020463070?
You can download the 5020463070 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5020463070?
MOLEX
