MOLEX 5023820870 High-Density SMT Connector
The Molex CLIK-Mate 1.25mm pitch SMT connector series offers a reliable, space-efficient solution for high-density applications such as LCD TVs, gaming equipment, and data communication devices. Featuring a superior lock design for secure mating and low insertion force, it ensures easy installation and dependable connection. Available in vertical and right-angle configurations with 2-15 circuits, these connectors include tuning-fork contacts, reinforced solder tabs, and audible click mechanisms for secure, quick mating. The system supports currents up to 1A, voltage of 50V, and operates effectively from -25°C to +85°C, making it ideal for space-conscious electronic designs requiring robust performance.
MOLEX 5023820870 High-Density SMT Connector Specifications:
- Pitch: 1.25mm
- Current: 1.0A
- Voltage: 50V
- Contact Resistance: 20 millichms max.
- Dielectric Withstanding Voltage: 50V AC
- Insulation Resistance: 100 Megohms minimum
- Operating Temperature: -25 to +85°C
- Housing: PCB receptacles, embossed tape; Terminal: reel; Housing: bag
- Features: Dual positive lock, tuning-fork contact, low insertion force, reinforced solder tabs, pick-and-place flat area
- Configurations: Vertical and right-angle versions, 2-15 circuits
- Application: LCD TVs, gaming, data communication, high pin count assemblies

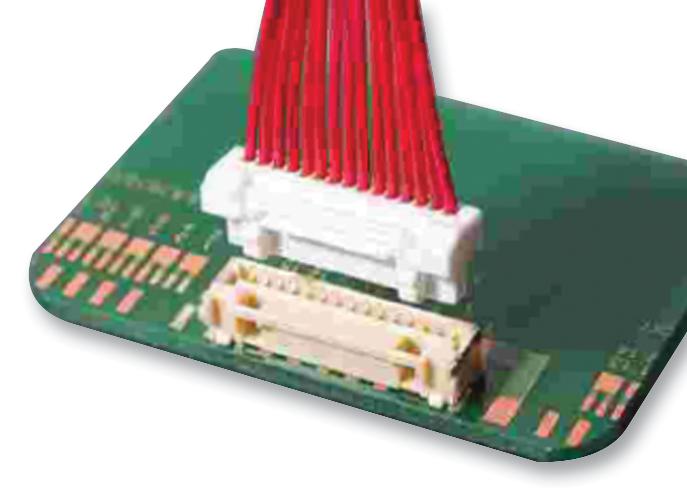

Buy the Molex 502382 U–2013 Reliable High-Density Connectors for Industrial Applications
Discover the Molex 502382 high-density SMT connector series, designed for space-efficient, reliable connections in electronics like LCD TVs and data communication equipment. Featuring a robust lock system, low insertion force, and quick mating, these connectors ensure secure connections and ease of use. Suitable for vertical and right-angle configurations, they support currents up to 1A and operate at temperatures from -25°C to +85°C. Perfect for high-pin-count applications requiring space savings and dependable performance, making assembly faster and more secure.
Buy Molex 502382 series connector now and experience unmatched reliability and space-saving performance for your electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 5023820870?
You can click on the BUY or RFQ button to purchase 5023820870 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023820870?
You can download the 5023820870 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023820870?
MOLEX
