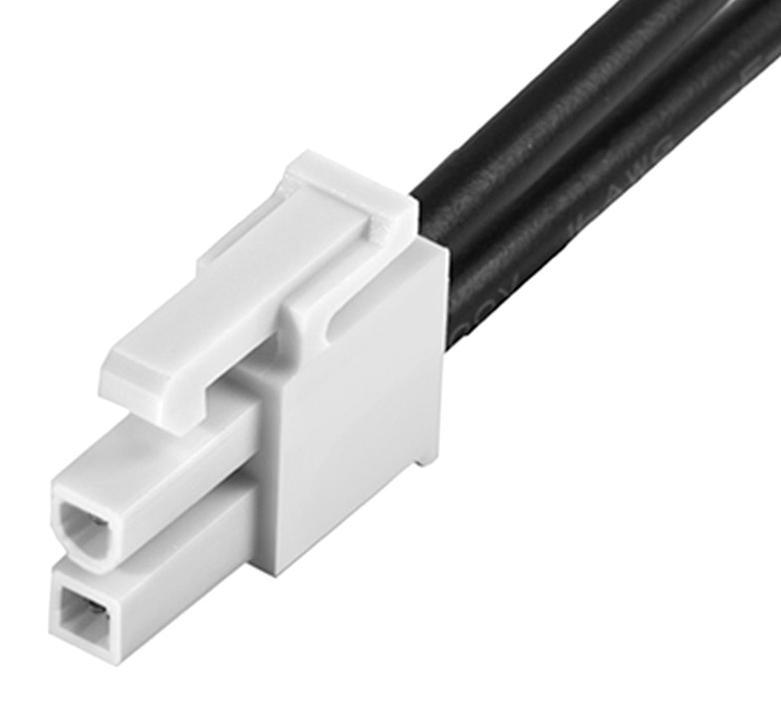

MOLEX 2153271021 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1021 is a Mini-Fit Jr. male-to-male off-the-shelf (OTS) cable assembly, ideal for wire-to-wire power applications. It boasts a dual-row configuration, a 150mm length, and tin plating for reliable electrical contact. Constructed with brass and nylon materials, this assembly is designed for durability and efficient power transmission in various industrial settings. It is RoHS compliant and features a halogen-free status.
Authorized Distributors
Source:Mouser Electronics
Part No:215327-1021
Stock:2128
Inv Date:05-30-2026
Price: Unit price: $2.1
Buy/RFQ:
Source:RS Americas, Inc
Part No:215327-1021
Stock:0
Inv Date:05-29-2026
Price: Unit price: $1.93
Buy/RFQ:
MOLEX 2153271021 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 10.196/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264590247
