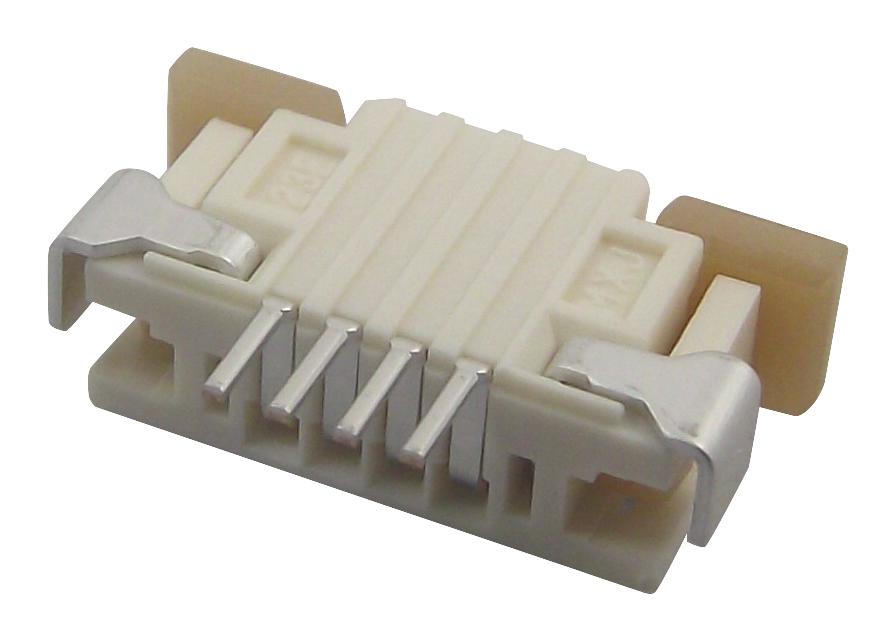

MOLEX 522710569 FFC-FPC Connector
The Molex FFC-FPC Connector with a 1.00mm pitch is a reliable SMT component designed for flexible flat cable and flexible printed circuit applications. Featuring a right-angle, bottom contact design with a 3.00mm mated height and gold plating, it ensures excellent electrical performance and durability through up to 30 mating cycles. Suitable for surface mount technology, this connector is compliant with RoHS standards and certified by CSA and UL. Its compact size and robust construction make it ideal for space-constrained electronic assemblies requiring stable and secure connections.
MOLEX 522710569 FFC-FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits: 5
- Mated Height: 3.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC (RMS)/DC
- Orientation: Right-Angle
- PCB Mounting: Surface Mount
- Packaging Type: Embossed Tape on Reel
- Contact Position: Bottom
- Agency Certification: CSA, UL
Buy the Buy Molex FFC-FPC Part Number 522710569 Online
Order the Molex FFC-FPC Connector with 1.00mm pitch today online and ensure a secure, reliable connection for your flexible circuits. This surface-mount, right-angle connector features gold-plated contacts, a durable construction rated for 30 mating cycles, and compliance with RoHS, UL, and CSA standards. Ideal for space-constrained electronic assemblies, it provides stable electrical performance under operating temperatures from -40°C to +85°C. Easy to install and handle, this connector guarantees quality and performance for your electronic projects.
Buy Molex 522710569 now and experience unmatched reliability and performance with a compact FFC-FPC connector for flexible circuit designs.
