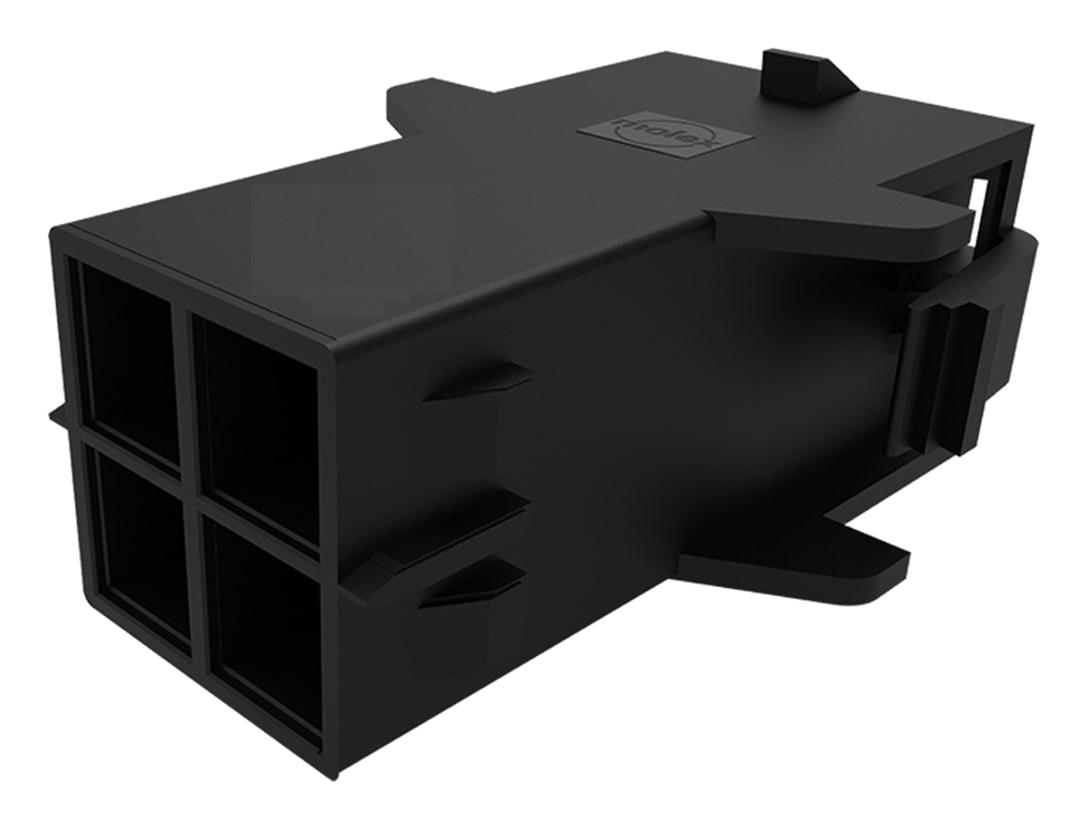

MOLEX 1054111102 Power Connector
Mega-Fit Power Connectors are designed for high-current power applications with a 5.70mm pitch, delivering up to 25.0A per circuit. They feature fully protected header pins and receptacle terminals, ensuring secure mating with positive locking housings. These connectors include durable, tin-plated contacts, tangless terminal designs for damage reduction, and a polarization peg for correct orientation. Suitable for home appliances, industrial machinery, and telecommunication equipment, they meet UL, CSA, RoHS, and glow-wire standards, providing reliable, high-current power connections in compact layouts.
MOLEX 1054111102 Power Connector Specifications:
- Voltage Rating: 600V
- Current Capacity: 25.0A per circuit
- Pitch: 5.70mm
- Material: High-conductivity copper with gold or tin plating
- Housing: UL 94 V-0, Glow Wire Material
- Contact Resistance: 6 millichms
- Operating Temperature: -40°C to +150°C
- Insulation Resistance: Min. 1000 Megohms
- Mating Force: Max. 6.8N (tin, initial)
- Unmating Force: Max. 6.5N (tin, initial)
- Header Pin Retention Force: Min. 89N per pin in vertical headers
- Physical Dimensions: Compatible with 1.60mm and 2.40mm PCB thickness
- RoHS Compliant: Yes
- Halogen Free: Yes
- Glow-Wire Capable: Yes
- Packaging: Bag, Reel, Tray
- Certifications: UL (E29179), CSA (LR-19980_A_000)
Buy the Molex Series Mega-Fit Power Connectors: 5.70mm Pitch Part 1054111102
Enhance your electrical assemblies with the durable and high-performance Mega-Fit Power Connector. Designed with a 5.70mm pitch and capable of carrying 25A per circuit, it offers secure locking, corrosion-resistant contacts, and compliance with international safety standards. Its design features fully isolated pins, tangless terminals, and a polarization peg for easy, correct mating. Ideal for home appliances, industrial equipment, and telecommunication systems, this connector ensures long-term reliability with low maintenance, making your projects safer and more efficient. Purchase online today for dependable power solutions.
Order your Molex Series Mega-Fit Power Connector with 5.70mm pitch today and ensure reliable, high-current power connections for your industrial and consumer projects.
Frequently Asked Questions
Where can I buy MOLEX 1054111102?
You can click on the BUY or RFQ button to purchase 1054111102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054111102?
You can download the 1054111102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054111102?
MOLEX
