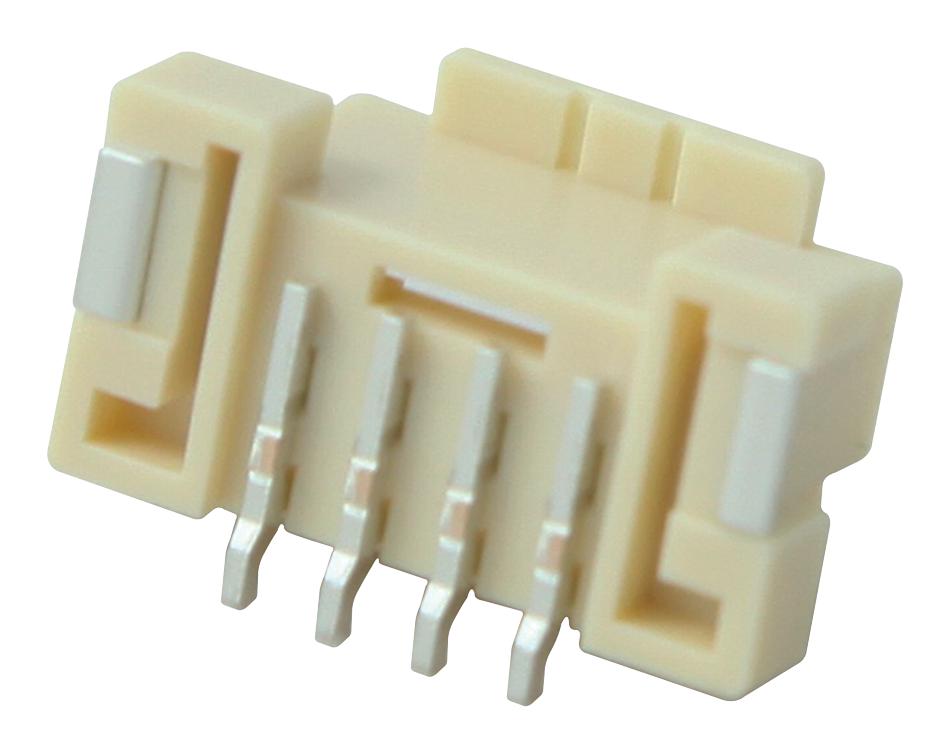

MOLEX 5600200430 Wire-to-Board Header
The DuraClik Wire-to-Board Header offers a reliable connection solution with a single row, vertical orientation, and 4 circuits. Featuring gold over nickel-plated contacts, it ensures excellent conductivity and corrosion resistance. Designed for use with the DuraClik series, this connector operates in temperature ranges from -40°C to +105°C or up to +125°C depending on the series. Made of durable polyamide resin with copper alloy metal components, it supports a maximum of 3.0A current per contact and a maximum voltage of 125V AC/DC, making it ideal for industrial and electronic applications requiring secure wire-to-board connections.
MOLEX 5600200430 Wire-to-Board Header Specifications:
- Series: DuraClik
- Number of Circuits: 4
- Circuits (Maximum): 4
- Color - Resin: Natural
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel
- Material - Resin: Polyamide
- Net Weight: 0.674 g
- Orientation: Vertical
- Temperature Range - Operating: -40°C to +105°C (DuraClik series), -40°C to +125°C (ISL and TPA series)
- Voltage - Maximum: 125V AC/DC
- Current - Maximum per Contact: 3.0A
- Packaging: Embossed Tape on Reel
- Flammability: UL Listed
- Certifications: RoHS, China RoHS, EU ELV, Halogen-Free
Buy the Molex Series DuraClik Wire-to-Board Header: 5600200430
Purchase the Molex Wire-to-Board Header series 5600200430 online today and enjoy a reliable connection with a robust design featuring 4 circuits, gold-plated contacts, and thermal stability up to 125°C. Ideal for industrial, automation, and electronic projects, this connector offers easy assembly and secure locking for long-term durability. Supported by RoHS compliance and UL certification, it ensures you get a high-quality component that meets all safety and environmental standards, simplifying your procurement and assembly process.
Buy Molex 5600200430 now and experience unmatched reliability and performance with durable, high-quality connections suited for industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 5600200430?
You can click on the BUY or RFQ button to purchase 5600200430 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5600200430?
You can download the 5600200430 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5600200430?
MOLEX
