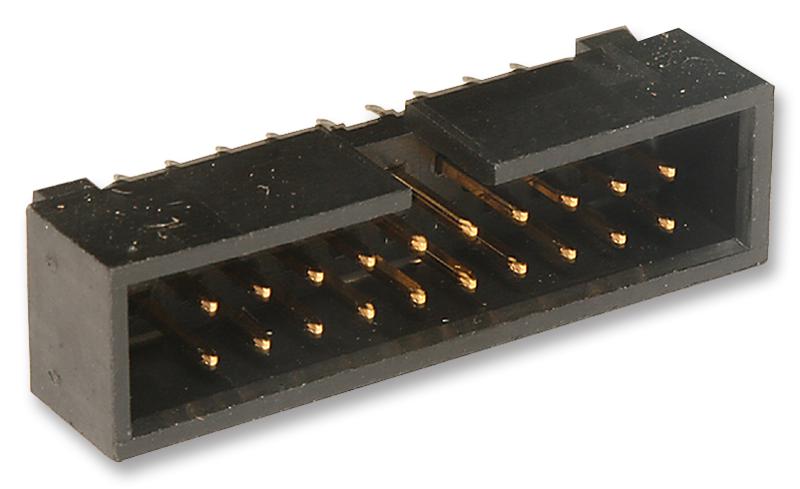

MOLEX 702462001 C-Grid Connector
This 2.54mm pitch dual-row board-to-board connector system features a shrouded, low-profile design with 20 circuits and gold-plated contacts for reliable connectivity. Its press-fit compliant pin allows flexible design integration, making it ideal for applications in automotive, consumer electronics, communications, lighting, and medical devices. The connector conforms to UL and CSA certifications, supports a maximum voltage of 250V DC, and operates within a temperature range of -55°C to +120°C. It includes pre-assembled FFC and IDT connectors, ensuring ease of assembly and robust performance in various environments.
MOLEX 702462001 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 20
- Circuits (Maximum): 20
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Contact Rating: 2.5A
- Operating Temperature Range: -55°C to +120°C
- Voltage Max: 250V DC
- PCB Thickness - Recommended: 1.60mm
- PC Tail Length: 3.43mm
- Surface Mount Compatible: No
- Shrouded: Yes
- Stackable: No
- Guide to Mating Part: None
- Lock to Mating Part: None
- Current - Max Per Contact: 2.5A
- Agency Certification: UL, CSA
- Packaging Type: Tray
- RoHS Compliant: Yes
- Halogen-Free Status: No
Buy the Molex Series C-Grid Connector: 702462001
Purchase the Molex C-Grid Connector with 2.54mm pitch and 20 circuits, designed for versatile applications including automotive, medical, and consumer electronics. It features gold-plated contacts, a shrouded, low-profile, dual-row design, and complies with UL and CSA standards for safety and reliability. Ideal for flexible designs, the connector supports up to 250V DC, operates from -55°C to +120°C, and includes pre-assembled FFC and IDT options. Trust Molex's quality for durable, high-performance electrical connections in your projects.
Get Molex 702462001 today—built for precision and long-lasting durability in board-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 702462001?
You can click on the BUY or RFQ button to purchase 702462001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 702462001?
You can download the 702462001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 702462001?
MOLEX
