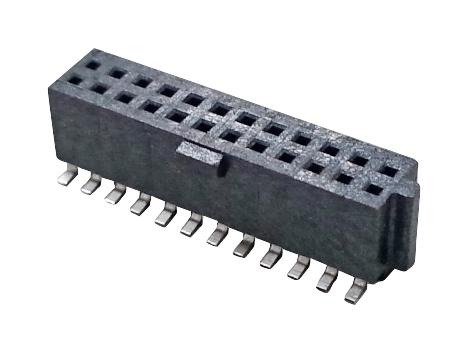

MOLEX 781202407 Board-to-Board Connector
The Slim-Grid Receptacle is a high-density board-to-board connector designed for reliable signal transmission with 24 circuits. Plated with 0.05um gold for enhanced contact durability and corrosion resistance, it supports surface-mount, vertical orientation, and lead-free assembly. The connector's black resin housing ensures durability and compliance with safety standards like UL and CSA. Suitable for applications demanding up to 14A per contact at 125V AC, it features a compact 1.27mm pitch, a maximum of 24 circuits, and an operating temperature range from -55°C to +105°C. It is RoHS compliant and halogen-free, ideal for modern electronics and industrial equipment.
MOLEX 781202407 Board-to-Board Connector Specifications:
- Circuits: 24
- Maximum Circuits: 24
- Color: Black
- Durability: 500 mating cycles
- Flammability: 94V-0
- Glow-Wire Capable: No
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Matte Tin
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 0.331 grams
- Number of Rows: 2
- Orientation: Vertical
- PCB Locator: No
- PCB Retention: None
- Packaging Type: Tube
- Pitch - Mating Interface: 1.27mm
- Operating Temperature Range: -55°C to +105°C
- Voltage Maximum: 125V AC
- Current Maximum per Contact: 14A
- UL and CSA certified
- RoHS and China RoHS compliant
- Halogen-Free: Yes
Buy the Buy Molex Slim-Grid Receptacle Part Number 781202407 Online
Enhance your electronic assemblies by ordering the Molex Slim-Grid Board-to-Board Connector with 24 circuits, gold-plated contacts, and a compact 1.27mm pitch. Designed for surface-mount, vertical applications, it offers high current capacity of 14A per contact at 125V AC, ensuring reliable signal transmission. Its durable construction supports up to 500 mating cycles and meets UL, CSA, and RoHS standards, making it a trusted choice for industrial, commercial, and consumer electronics requiring precise and dependable connections.
Order your Molex Slim-Grid Receptacle 781202407 today and ensure your electronic projects benefit from reliable, high-density connections with proven durability.
Frequently Asked Questions
Where can I buy MOLEX 781202407?
You can click on the BUY or RFQ button to purchase 781202407 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 781202407?
You can download the 781202407 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 781202407?
MOLEX
