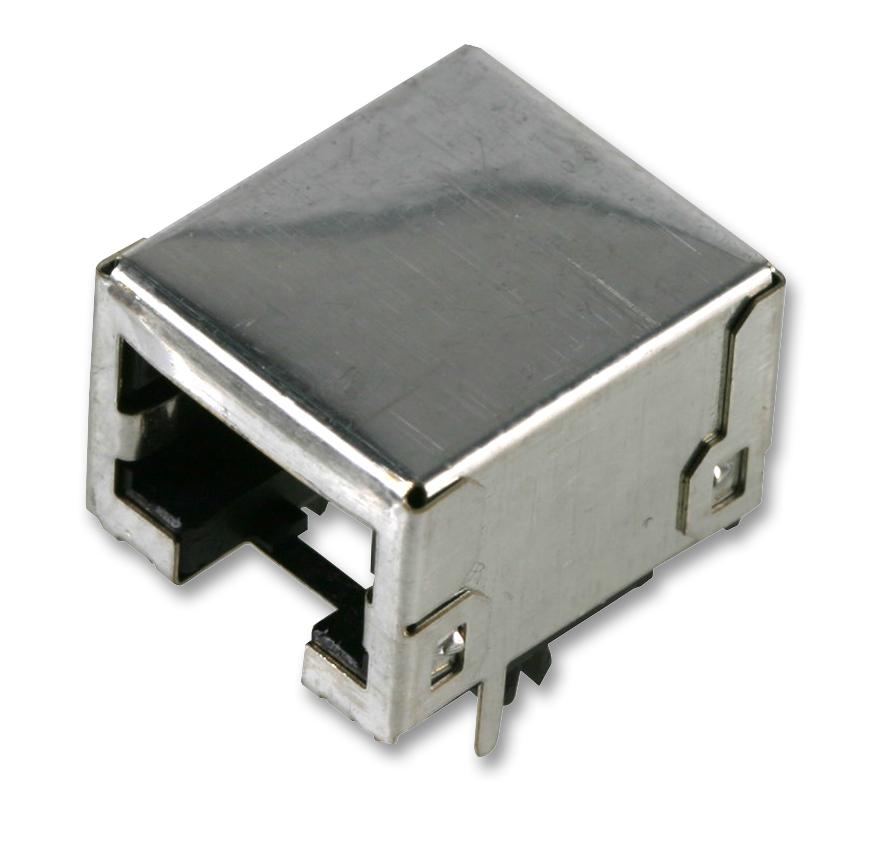

MOLEX 855055002 Ethernet Modular Jack
This modular jack is a Cat5e, right-angle, low-profile, shielded Ethernet connector designed for high-performance networking applications. It features a 8/8 port configuration, with durable construction capable of withstanding up to 2500 mating cycles. Built with phosphor bronze contacts plated in gold over palladium nickel and housed in a high-temperature thermoplastic body, it operates efficiently within a temperature range of -40°C to +85°C. The shielded design enhances electromagnetic compatibility, and the compact, low-profile form factor makes it ideal for space-constrained environments like data centers and networking panels.
MOLEX 855055002 Ethernet Modular Jack Specifications:
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Series: 85505
- Certification: UL, RoHS Compliant, EU ELV Not Relevant
- Color - Resin: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 2500
- Jack Height: 13.00mm
- Termination Interface: Through Hole
- Port Configuration: 8/8
- Wire/Cable Type: N/A
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 125V DC
- Operating Temperature Range: -40°C to +85°C
- Solder Process Data: Max process temperature 260°C, 5 seconds duration
- Shielded: Yes
- Size: Compact, right-angle design suitable for space-constrained applications
Buy the Molex Series 85505 Modular Jack: 855055002
Enhance your network setup with the Molex Series 85505 shielded Ethernet modular jack. Featuring an 8/8 port configuration, it offers durability up to 2500 mating cycles. Its right-angle, low-profile design ensures easy installation in tight spaces. Made with high-quality phosphor bronze contacts plated in gold over palladium nickel, housed in high-temperature thermoplastic, it performs reliably in temperatures from -40°C to +85°C. Ideal for high-speed, power-over-ethernet networking environments, this connector guarantees dependable connectivity and electromagnetic compatibility for future-proof data centers and communication infrastructure.
Order your Molex Series 85505 Modular Jack today and ensure reliable, high-performance Ethernet connections for your networking projects.
Frequently Asked Questions
Where can I buy MOLEX 855055002?
You can click on the BUY or RFQ button to purchase 855055002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 855055002?
You can download the 855055002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 855055002?
MOLEX
