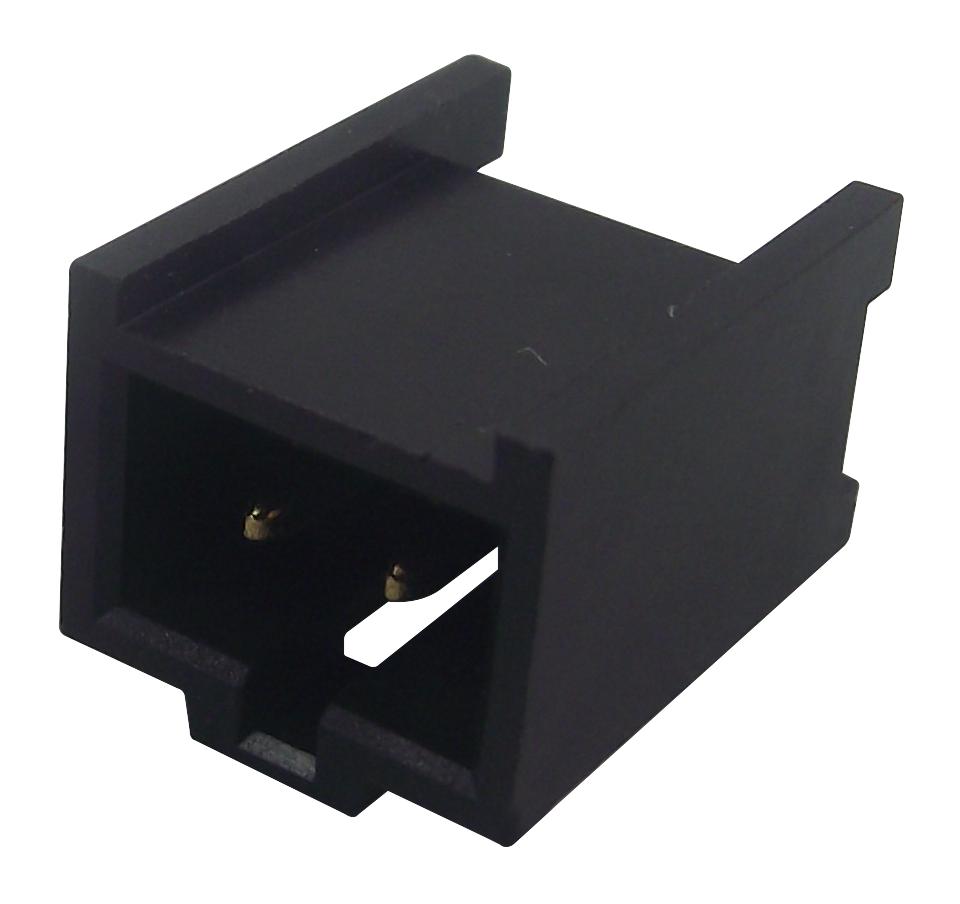

MOLEX 901361202 PCB Header
The 90136-1202 is a 2-circuit, single-row C-Grid III vertical PCB header with gold-plated brass contacts and through-hole termination. Made from polyester, it connects with 90123 and 90156 modular crimp housings, suitable for signal and wire-to-board applications. Designed to meet industry standards, it offers compatibility with wire and ribbon cable connectors. Features a box contact design, uniform locking system, and interchangeability across housing styles. It complies with DIN41651, HE-13/14, UL94V-0 flammability, rated for 3A per contact, 350VAC/DC, operating from -55°C to 125°C, ideal for automotive and consumer electronics.
MOLEX 901361202 PCB Header Specifications:
- Number of Circuits: 2
- Orientation: Vertical
- Color - Resin: Black
- Flammability: UL94V-0
- Voltage Rating: 350VAC/DC
- Current - Max per Contact: 3A
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Temperature Range - Operating: -55°C to +125°C
- PCB Tail Length: 2.90mm
- Pitch - Mating Interface: 2.54mm
- Solder Process Data: Lead-free
- Packaging: Tray
- Connector Type: Signal, Wire-to-Board
- Standards: DIN41651, HE-13/14, QF-50 compatibility
Buy the Molex 90136-1202 – Reliable Signal and Wire-to-Board Connectors for Industrial Applications
Discover the Molex 90136-1202 PCB header, engineered for high-performance signal and wire-to-board applications. With gold-plated brass contacts, a robust polyester body, and compatibility with industry standards, this 2-circuit, vertical connector assures excellent electrical integrity and thermal stability from -55°C to 125°C. Ideal for automotive, consumer electronics, and industrial equipment, it features UL94V-0 flammability, a voltage rating of 350VAC/DC, and a maximum current of 3A per contact. Easy to install and highly reliable, order online today to enhance your electronic assemblies with proven connectivity technology.
Buy Molex 90136-1202 now and experience unmatched reliability and performance in signal and wire-to-board connection solutions.
