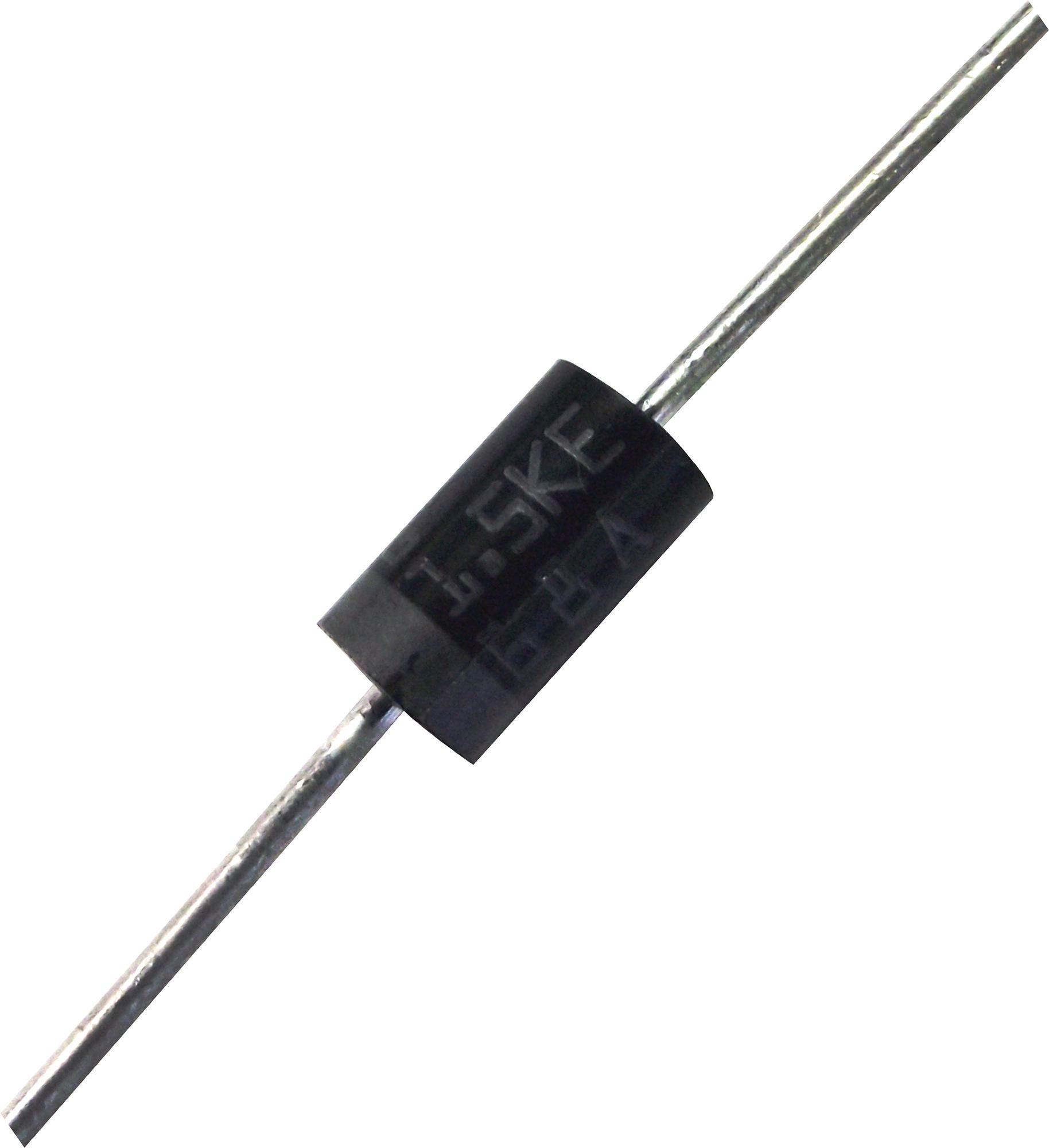

MULTICOMP PRO 15KEG250CA TVS Diode Bidirectional
The MULTICOMP PRO 1.5KEG250CA is a robust bidirectional transient voltage suppression (TVS) diode, engineered to safeguard sensitive electronic components from damaging voltage spikes and surges. Its glass passivated junction provides fast response time and excellent clamping capability. Suitable for a wide range of industrial applications including power supplies, automotive electronics, and telecommunications equipment, this diode ensures reliable circuit protection. The device is lead-free and encapsulated in a DO-201AE molded plastic case for durability and ease of mounting.
MULTICOMP PRO 15KEG250CA TVS Diode Bidirectional Specifications:
- Peak Power Dissipation at Ta= 25°C Tp= 1ms: 1500W
- Peak Forward Surge Current, 8.3mS Single Half Sine-Wave: 200A
- Steady State Power Dissipation at Tl = 75°C: 5W
- Maximum Instantaneous Forward Voltage: See Note 3
- Operating Junction Temperature Range: -55 to +150°C
- Storage Temperature Range: -55 to +175°C
- Reverse Breakdown Voltage Min: 214V
- Reverse Breakdown Voltage Max: 237V
- Reverse Breakdown Voltage at IT: 263V
- Max Reverse Leakage at Vr: 5μA
- Max Clamping Voltage at Ippm: 344.4V
- Max Peak Pulse Surge Current: 5A
- Max Voltage Temp: 0.11mV/°C
Buy the 1.5KEG250CA MULTICOMP PRO TVS Diode Bidirectional | myMectronic
Purchase the MULTICOMP PRO 1.5KEG250CA TVS Diode securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15KEG250CA?
You can click on the BUY or RFQ button to purchase 15KEG250CA from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15KEG250CA?
You can download the 15KEG250CA datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15KEG250CA?
MULTICOMP PRO
