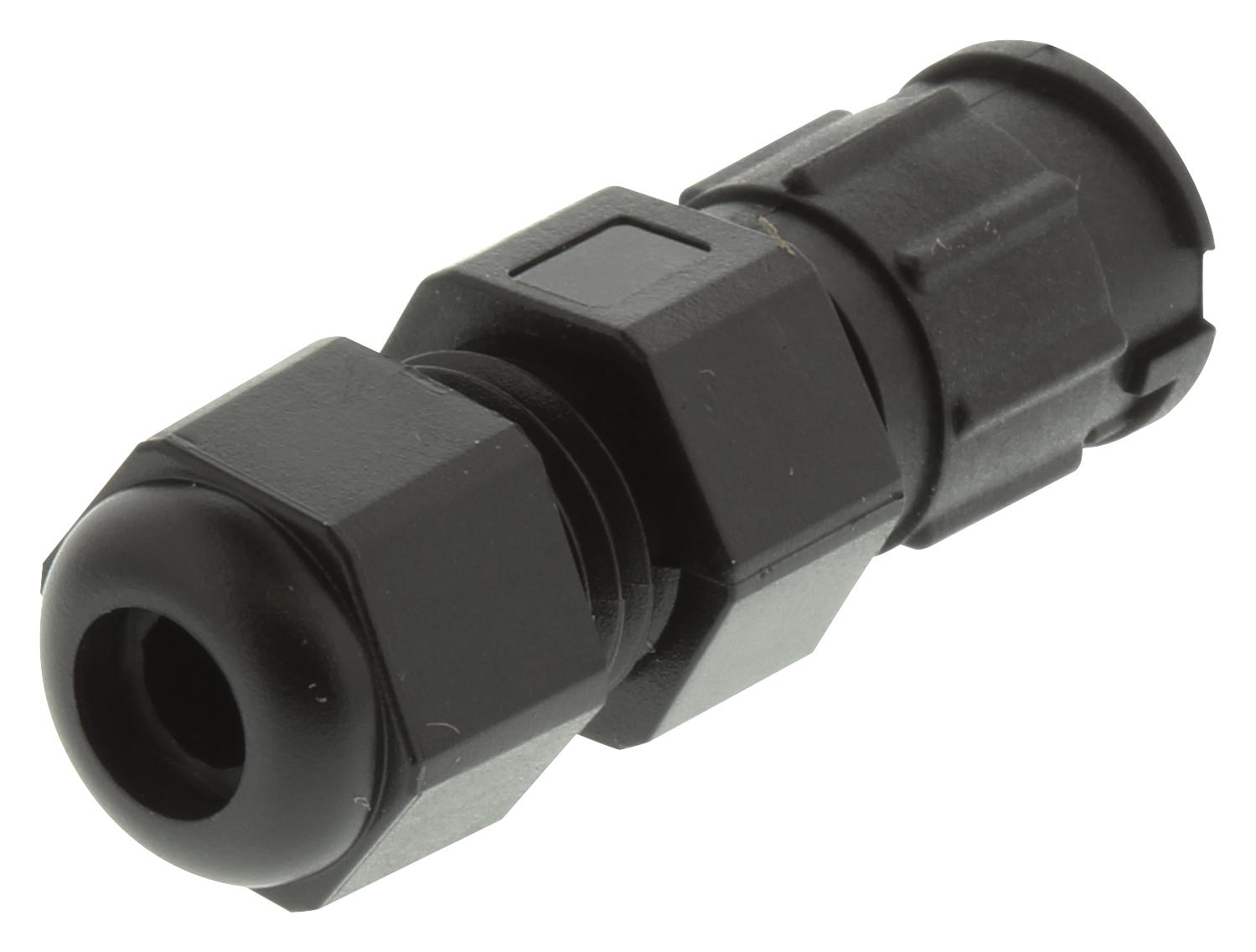

MULTICOMP PRO 2CT3033W04200H Industrial Wiring Connector
The Multicomp Field Wiring Male Connector with solder pin is designed for reliable in-line electrical connections, rated at 2A and suitable for wire ranges of 24 to 26 AWG. Made with a copper alloy contact plated in gold for optimal conductivity and corrosion resistance, the connector features a nylon+GF and PBT body with a waterproof IP67 rating. It supports 500 cycles durability, withstands temperatures from -40°C to +100°C, and provides a breakdown voltage of 2AC 500V. Ideal for industrial wiring requiring secure, weatherproof connections, the connector includes a liquid glue seal for added protection and easy installation.
MULTICOMP PRO 2CT3033W04200H Industrial Wiring Connector Specifications:
- Current Rating: 2A
- Contact Material: Copper Alloy, Gold Plated
- Body Material: Nylon+GF, PBT
- Cable OD Range: 4mm to 6.5mm
- Contact Resistance: 30mΩ (without cable)
- Insulation Resistance: 2100MΩ at DC 500V
- Durability: 500 cycles minimum
- Breakdown Voltage: 2AC 500V/1 minute
- Temperature Range: -40°C to +100°C
- Waterproof Rating: IP67 (immersion in 1m water for 30 minutes)
- Dimensions: Millimetres, includes sealing nut, gasket, and liquid glue for sealing
- Lock Type: Male pin
- Plating & Coating: Gold-plated over brass
Buy the Buy multicomp Field Wiring Male Connector Part Number 2CT3033W04200H Online
Purchase the multicomp Industrial Wiring Connector today to ensure secure and waterproof electrical connections for your industrial projects. Featuring gold-plated contacts, IP67 rating, and durable nylon+GF and PBT body, this connector supports 2A current with a wire range of 24 to 26 AWG. Its rugged design withstands -40°C to +100°C, offers 500 cycle durability, and includes a liquid glue seal for enhanced weatherproofing. Order now for fast, reliable online delivery and upgrade your wiring system with high-quality connectors designed for demanding environments.
Get multicomp 2CT3033W04200H today—built for reliable, waterproof industrial wiring connections with long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3033W04200H?
You can click on the BUY or RFQ button to purchase 2CT3033W04200H from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3033W04200H?
You can download the 2CT3033W04200H datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3033W04200H?
MULTICOMP PRO
