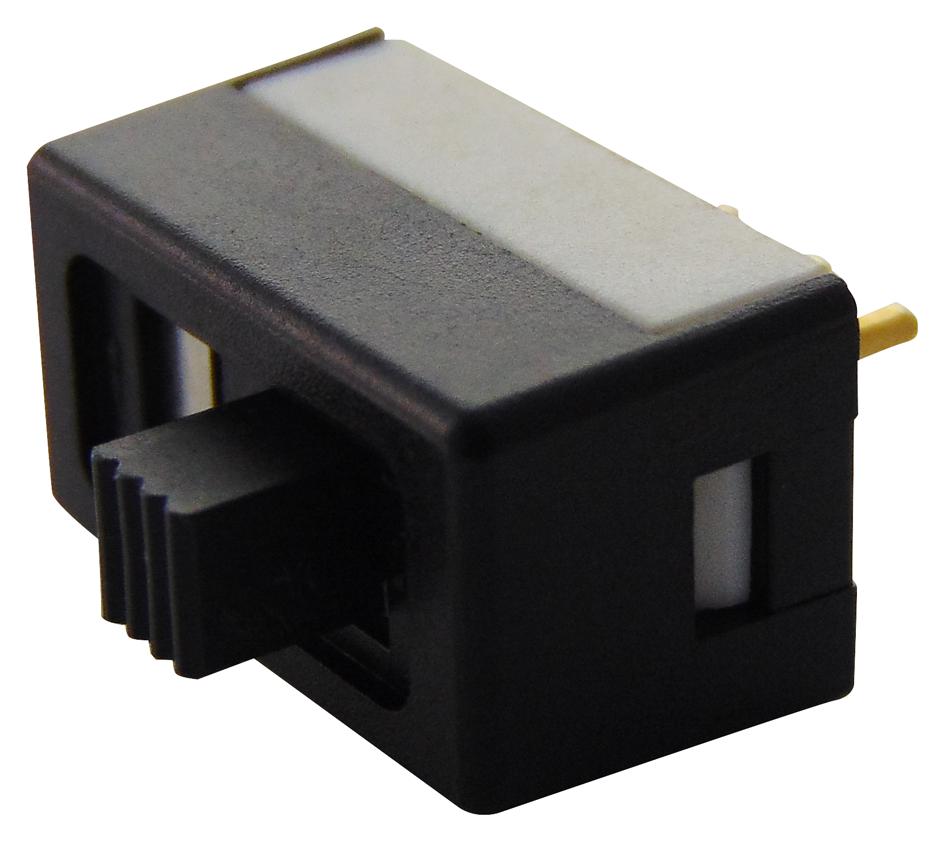

MULTICOMP PRO 6MS1S2M1RE Slide Switch SPDT On-On
The MULTICOMP PRO 6MS1S2M1RE is a miniature slide switch designed for diverse electronic applications. Constructed with nylon for the case, housing, and actuator, and featuring copper alloy contacts with gold plating, this switch offers durability and reliable performance. It operates with an SPDT (Single Pole Double Throw) configuration and an On-On function, providing a simple and effective switching solution. The switch is suitable for use in consumer electronics, industrial control panels, and other applications requiring a compact and robust switching mechanism. Its gold-plated contacts ensure low contact resistance and excellent signal transmission, while the nylon construction provides insulation and mechanical strength. The switch is rated for a maximum contact rating of 0.4VA at 20V and boasts a mechanical life of 20,000 cycles.
MULTICOMP PRO 6MS1S2M1RE Slide Switch SPDT On-On Specifications:
- Max. Contact Rating: 0.4 (VA) maximum at 20V maximum (AC or DC)
- Mechanical Life: 20,000 cycles
- Max. Initial Contact Resistance: 50mΩ
- Min. Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000V RMS at sea level
- Operating Temperature: -40°C to +80°C
- Minimum Load: 10mA, 50mV
- Breaking Capacity: 100mA, 30V DC with resistive load
- Case Material: Nylon, white
- Housing Material: Nylon, black
- Actuator Material: Nylon, black
- Contact/Terminal Material: Copper alloy, with gold plated
- Soldering Temperature: 260 ±5°C
- Soldering Duration: 5 ±1 seconds (PCB is 1.6 mm in thickness)
