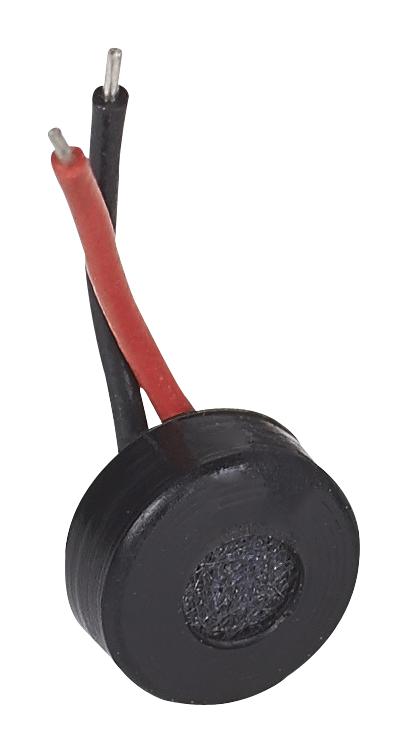

MULTICOMP PRO ABM716RC Omni Directional Microphone
The omni-directional leaded microphone is designed for high-quality audio capture in various applications. Operating within 50Hz to 16,000Hz frequency range, it offers a sensitivity of -44 ±3dB at 1kHz and an output impedance of 2.2kΩ. The device features a compact external diameter of 3mm and height of 6mm, with a temperature tolerance from -25°C to +70°C. It utilizes a wire terminal type, making it versatile for integration into audio systems and industrial equipment requiring reliable sound input with wide directional capabilities.
MULTICOMP PRO ABM716RC Omni Directional Microphone Specifications:
- Directivity: Omni directional
- Standard Operating Voltage: 2V
- Maximum Operating Voltage: 10V
- Maximum Current Consumption: 0.5mA
- Output Impedance: 2.2kΩ
- Frequency Range: 50Hz to 16,000Hz
- Sensitivity: -44 ±3dB at 1kHz
- Signal to Noise Ratio: 60dB
- Storage Temperature: -25°C to +70°C
- Operating Temperature: -20°C to +60°C
- External Diameter: 3mm
- External Height: 6mm
- External Width: 1.5mm
- Terminal Type: Wire
- Transducer Function: Microphone
Buy the Multicomp Microphone – Reliable Omni Directional Microphone for Industrial Applications
Order the Multicomp Omni Directional Microphone ABM716RC online now to enjoy reliable and high-quality audio input for your industrial, communication, or audio projects. Featuring wide frequency response, compact size, and long-lasting durability, this leaded microphone is ideal for various applications. Its omni-directional pickup pattern ensures high sensitivity and clear sound capture across different environments. Secure your supply today and experience top performance for recording, monitoring, or communication systems, all designed with the highest standards for professional use.
Get Multicomp Microphone ABM716RC today—built for precision sound capture and durable industrial performance.
