MULTICOMP PRO DXO571050T33TS SMD Oscillator

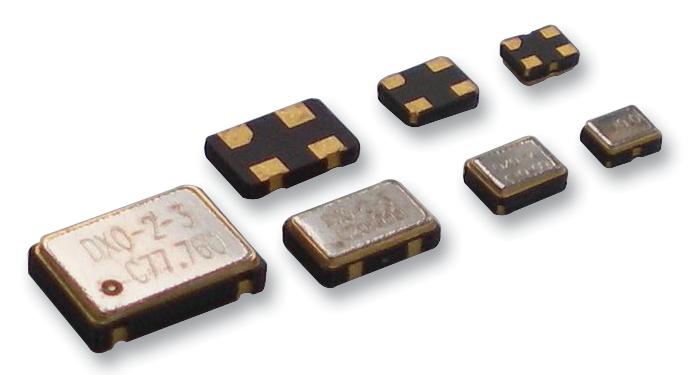

The SMD Clock Oscillator from the DXO57 Series offers a compact 5x7mm package suitable for surface-mount applications, providing stable frequency outputs from 1.5MHz to 80MHz. Available in 3.3V and 5V versions, it features low power consumption, HCMOS/TTL output, and a tri-state function for versatile microprocessor integration. Operating within -40°C to +70°C or +85°C temperature ranges, it ensures reliable performance across applications. Designed for cost-effectiveness and precision, this oscillator meets the demands of modern digital systems requiring accurate timing and low jitter.
MULTICOMP PRO DXO571050T33TS SMD Oscillator Specifications:
- Nominal Frequency Range: 1.5MHz to 80MHz
- Frequency Tolerance: ±50ppm (Options: +25, +100ppm)
- Operating Temperature Range: -40°C to +70°C or +85°C
- Storage Temperature Range: -40°C to +85°C
- Supply Voltage: 3.3V or 5V ±10%
- Current Consumption: 25mA, 40mA & 50mA
- Output Symmetry: 40% to 60% (standard), 45% to 55% (tight)
- Output Load: 15pF HCMOS or 10TTL
- Output Level 'L' (max.): 10% Vop (HCMOS), +0.4V DC (TTL)
- Output Level 'H' (min.): 90% Vop (HCMOS), +2.4V DC (TTL)
- Rise/Fall Time (10%-90% Vop): max. 10ms
- Start-up Time: max. 10ms
- Output Waveform: HCMOS/TTL compatible, Tri-State
- Dimensions: 5x7mm ceramic package
- Features: Ultra-thin, surface-mount, low power, cost-effective
Buy the Buy multicomp SMD Clock Oscillator Part Number DXO571050T33TS Online
Enhance your electronic projects with the multicomp SMD Oscillator DXO571050T33TS, a compact, high-precision timing solution suitable for microprocessors and digital systems. Featuring a 5x7mm ceramic package, it offers frequency ranges from 1.5MHz to 80MHz in 3.3V or 5V options. With low power consumption, HCMOS/TTL outputs, and a tri-state function, it ensures excellent performance for high-speed applications. Its cost-effective design makes it ideal for diverse industrial, consumer, and embedded system integrations, providing reliable operation across extended temperature ranges.
Get multicomp SMD Clock Oscillator DXO571050T33TS today—built for precision, reliability, and low power consumption in compact surface-mount packages.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DXO571050T33TS?
You can click on the BUY or RFQ button to purchase DXO571050T33TS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DXO571050T33TS?
You can download the DXO571050T33TS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DXO571050T33TS?
MULTICOMP PRO
