MULTICOMP PRO MC000186 Pluggable Terminal Block
Pluggable terminal blocks are versatile connectors used for quick and reliable wire connections in electrical and electronic circuits. Designed with an insulating polyamide body and made from phosphor bronze, brass, and steel components, these 16A rated blocks support wire ranges from 14 to 24 AWG and feature a pitch of 5.08mm. They are RoHS compliant, withstand insulation voltages up to 2000V AC, and operate within a temperature range of -40°C to +105°C. Suitable for various automation and wiring projects, they ensure secure, maintenance-friendly connections.
MULTICOMP PRO MC000186 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 7mm
- Wire Range: 14 AWG to 24 AWG
- Screw Torque: 4.5 Ib-inch
- Pitch: 5.08mm (0.2 Inch)
- Pole Diameter: Varies from 10.16mm (0.4 Inch) to 50.8mm (2 Inch)
- Insulating Body Material: Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin plated
- Cage Clamp Material: Brass, Ni plated
- Screw Material: Steel
- Pole Count Options: 2, 3, 4, 5, 6, 8, 10, 12 Way
- Part Numbers: MC000184, MC000185, MC000186, MC000187, MC000188, MC000189, MC000190, MC000191

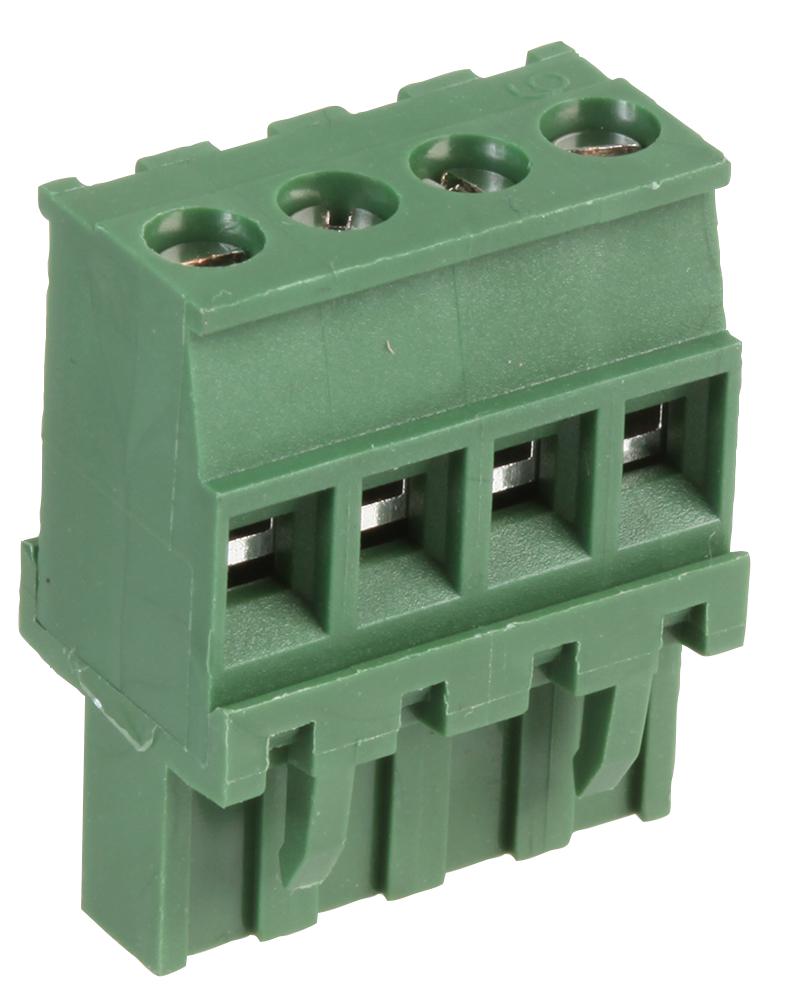

Buy the Buy multicomp Pluggable Terminal Blocks Part Number MC000186 Online
Experience seamless and secure wiring with our pluggable terminal blocks, rated at 16A and supporting wire ranges from 14 to 24 AWG. Designed with RoHS compliance and durable materials, these terminal blocks feature a 5.08mm pitch for easy plug-in connections, ideal for automation, control panels, and electrical systems. They withstand insulation voltages up to 2000V AC and operate efficiently between -40°C to +105°C, ensuring safety and reliability in challenging environments. Perfect for quick maintenance and versatile wiring solutions.
Buy multicomp MC000186 now and enjoy secure, reliable electrical connections for your automation and wiring projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000186?
You can click on the BUY or RFQ button to purchase MC000186 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000186?
You can download the MC000186 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000186?
MULTICOMP PRO
