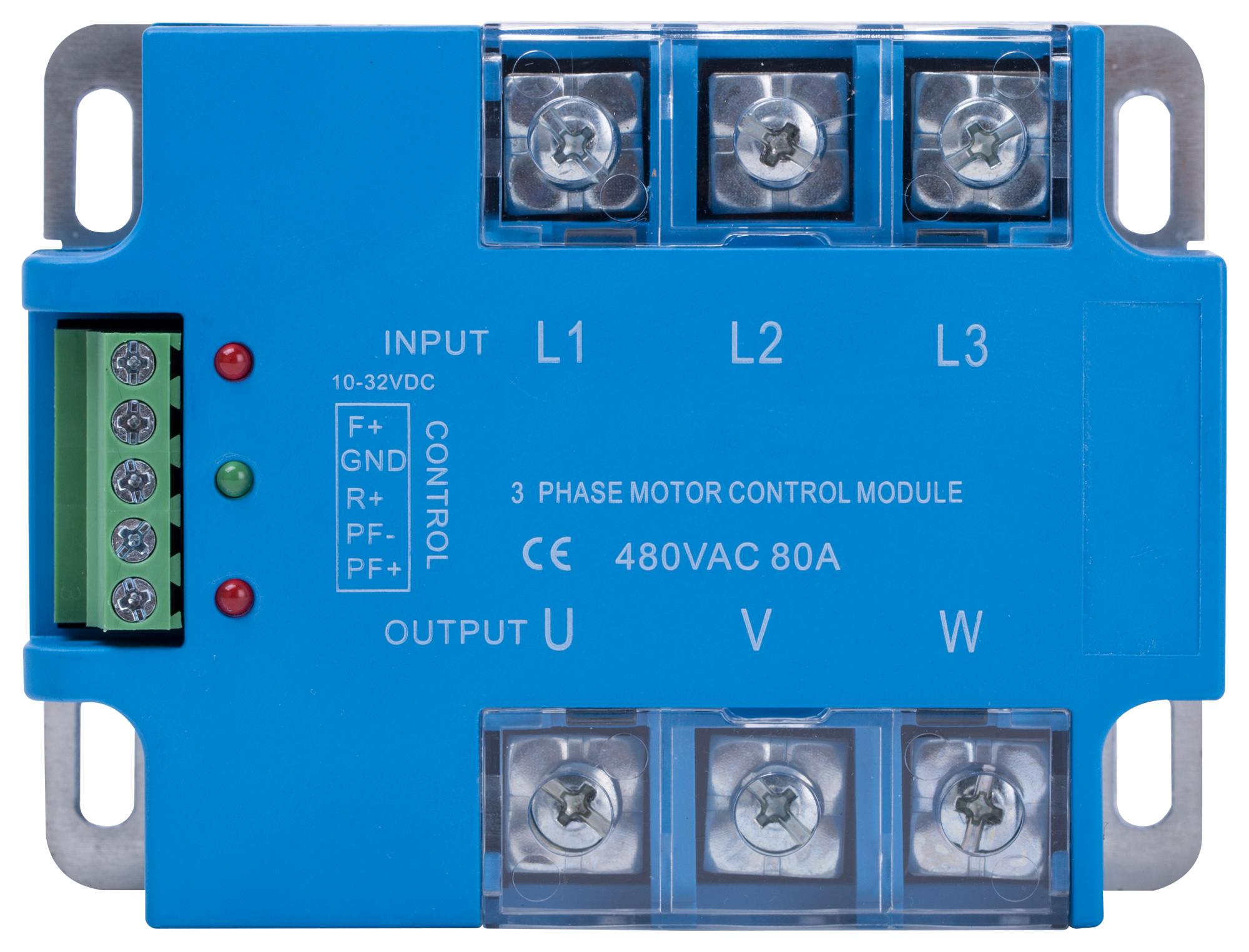

MULTICOMP PRO MC002295 Motor Reversing Module
The Multicomp Pro three-phase motor reversing module is designed for reliable industrial motor control applications. It features SCR output for handling heavy loads, a control voltage range of 10 to 32V DC, and dielectric strength of 24,000Vrms. The module includes internal RC protection, high EMC compliance, and automatic phase correction, making it suitable for reversing and controlling three-phase motors. With a compact design, it has a typical weight of 338g and operates within an ambient temperature range of -30°C to +80°C, ensuring durability in harsh environments.
MULTICOMP PRO MC002295 Motor Reversing Module Specifications:
- Control Voltage Range: 10 ~ 32VDC
- Minimum Turn-On Voltage: 10V DC
- Minimum Turn-Off Voltage: 4V DC
- Maximum Input Current: 25mA
- Load Voltage Range: 24 ~ 530V AC
- Maximum Transient Over voltage: 1200Vpk
- Minimum Load Current: 100mA
- Maximum Surge Current: 25A 250A [@10ms] 60A 600A
- Maximum Off-State Leakage: 5mA
- Maximum On-State Voltage Drop: 1.7Vrms
- Dielectric Strength Input-Output: >4000Vrms
- Ambient Operating Temperature: -30°C ~ +80°C
- Weight: 338g
Buy the Multicomp Series Motor Reversing Module: MC002295
Purchase your Multicomp Pro Motor Reversing Module MC002295 online today and benefit from fast delivery, trusted quality, and excellent performance for your industrial motor control projects. This high-performance three-phase reversing module features SCR output, a control voltage range of 10 to 32V DC, and built-in phase correction. Its robust design ensures durability in demanding environments, making it ideal for reversing heavy-duty motors. Get reliable operation with high dielectric strength and comprehensive protection circuits, enabling seamless integration into your systems with confidence.
Order your Multicomp Series MC002295 motor reversing module today and ensure reliable control for your industrial three-phase motors.
