MULTICOMP-PRO MC002812 USB Connector
The USB 3.1 Type C Receptacle is a waterproof, mid-mount DIP connector with a 0.3mm center height, designed for reliable connections in various electronic devices. It features 24 contacts, high-quality gold and nickel plating for durability, and supports currents up to 5A (VBUS and GND pins). Constructed from high temp plastic and stainless steel, it withstands temperatures from -40°C to 80°C. Its compact size and robust design make it suitable for space-constrained applications requiring durable, high-speed data transfer connections.
MULTICOMP-PRO MC002812 USB Connector Specifications:
- USB Connector Type: USB 3.1 Type C
- Number of Contacts: 24
- Mounting: Mid-Mount Through Hole
- Contact Current Rating: 5A (VBUS, GND), 0.25A/Pin (Others)
- Insulation Resistance: 100MQ Min. @250VDC
- Dielectric Withstanding Voltage: 100VAC Min.
- Low Level Contact Resistance: Initial 40mQ Max; after 50mQ Max
- Operating Temperature: -40°C to 80°C
- Mating Force: 5~20N
- Unmated Force: 8~20N (Initial), 6~20N (After 10000 Cycles)
- Material: Plastic housing, stainless steel shell, gold and nickel plating
- Plating Thickness: Terminal - A 0.12mm Gold, B 40u
- Nickel; MID Plate 0.15mm Stainless Steel
- Dimensions: Millimetres, suitable for compact electronic modules
- RoHS Compliant

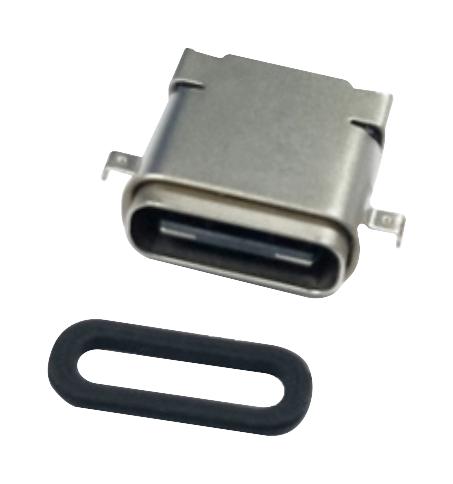

Buy the Multicomp Series Waterproof USB 3.1 Type C Receptacle: MC002812
Enhance your electronic designs with the waterproof USB 3.1 Type C Receptacle, designed for space-efficient, reliable high-speed data transfer. Features 24 contacts with gold and nickel plating for long-term durability, supporting 5A currents for fast charging and data. Its mid-mount DIP configuration with a 0.3mm center height ensures fitment into confined spaces, making it ideal for rugged environments, portable devices, and industrial applications. Trust this high-quality connector for dependable performance, ease of installation, and compliance with RoHS standards, and purchase online today for seamless integration into your project.
Buy Multicomp waterproof USB 3.1 Type C Receptacle MC002812 now and experience robust high-speed data connectivity in compact, durable design.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002812?
You can click on the BUY or RFQ button to purchase MC002812 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002812?
You can download the MC002812 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002812?
MULTICOMP-PRO
