MULTICOMP-PRO MC002948 BNC PCB Mount Connector
This straight BNC PCB mount jack receptacle offers reliable coaxial connections for high-frequency applications up to 6GHz. Constructed with brass bodies and beryllium copper center contacts, it ensures durability and signal integrity. The connector features a through-hole design for PCB mounting, with PTFE insulation for excellent dielectric properties. It complies with MIL-STD-348B interface standards, supports operating temperatures from -55°C to +165°C, and has a maximum voltage rating of 500V. Ideal for RF and testing equipment requiring stable, high-performance coaxial connections.
MULTICOMP-PRO MC002948 BNC PCB Mount Connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Coaxial Termination: Through Hole
- Connector Mounting: PCB
- Frequency Range: DC-6GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 500V Max.
- VSWR: 1.3 Max.
- Bodies: Brass per JIS-C3604, Nickel plated
- Centre Contact: Beryllium Copper, Gold plated
- Insulation Material: PTFE
- Operating Temperature: -55°C to +165°C
- Interface: MIL-STD-348B compliant
- Material: Brass and Beryllium Copper
- Finish: Nickel for body, Gold for contact
- Mounting: Through hole for PCB
- Dimensions: Millimetres (Inches)

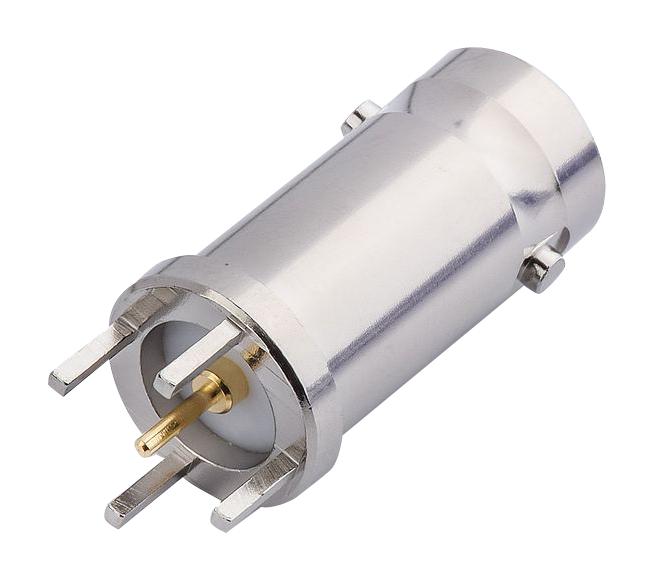

Buy the Buy Multicomp Pro Straight BNC PCB Mount Part Number MC002948 Online
Discover the reliable performance of the BNC PCB Mount Connector from Multicomp Pro. Designed for frequencies up to 6GHz, it features durable brass construction, gold-plated contacts, and PTFE insulation for optimal RF performance. With MIL-STD-348B compliance and operating temperature range of -55°C to +165°C, it is perfect for professional applications requiring high durability. Easily mount this through-hole connector on your PCB, ensuring stable coaxial connections that withstand rigorous use and provide excellent signal quality in demanding environments.
Buy Multicomp Pro MC002948 now and ensure high-quality, stable RF connections for your PCB applications with lasting durability and performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002948?
You can click on the BUY or RFQ button to purchase MC002948 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002948?
You can download the MC002948 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002948?
MULTICOMP-PRO
