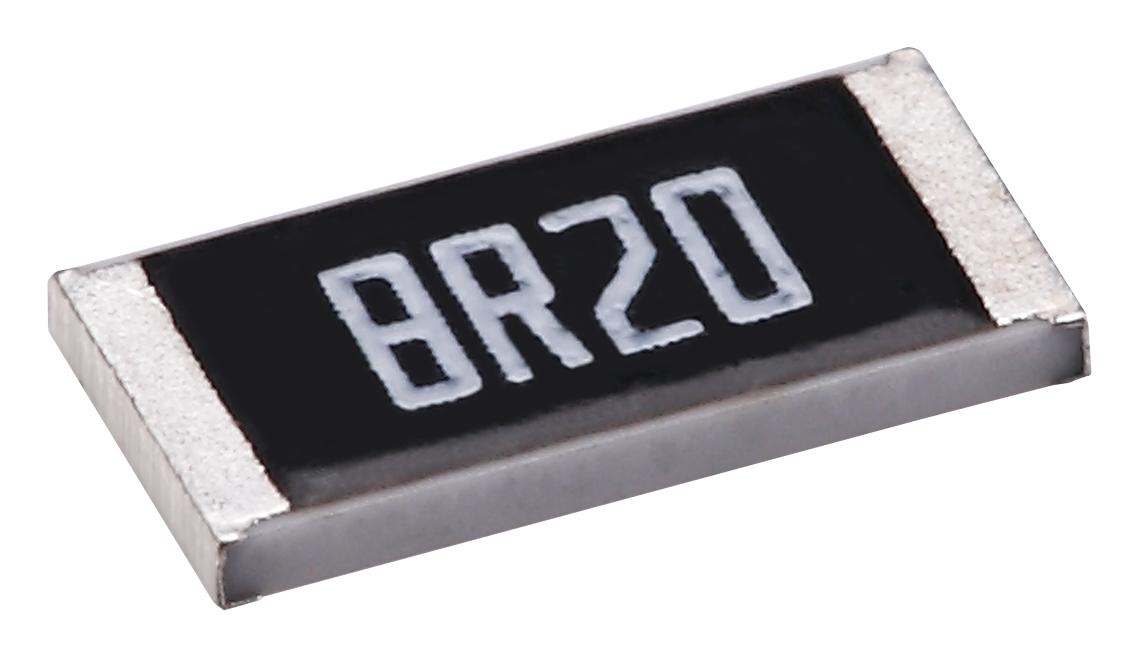

MULTICOMP PRO MC003480 Precision Resistor
High-precision thin film chip resistor with 0.1% tolerance, very low TCR, and compact 0201 size. Suitable for precision applications requiring stable resistance values. Features include alumina substrate, multiple electrodes, barrier layer, resistor layer, overcoat, and precise marking. Dimensions in millimeters: length 0.58 +0.05, width 0.29 +0.05, thickness 0.23 +0.05, with case D1 0.12 and D2 0.15. Designed to meet RoHS compliance and stringent environmental and electrical standards, ensuring reliability in demanding electronic circuits.
MULTICOMP PRO MC003480 Precision Resistor Specifications:
- Size: 0201 (0603)
- Tolerance: 0.1%
- Resistance Range: 49.90Ω to 33kΩ (various models)
- TCR: Low, specific values not provided
- Max Power Rating: 1/32 W at 55°C ~ +155°C
- Max Operating Voltage: 15V (standard), overload voltage 2.5 * (P * R) or max, whichever is lower
- Resistance Tolerance: ±0.1%
- Temperature Coefficient (TCR): +25/-55/+25/+125/+25°C (per MIL-STD-202 Method 304)
- Environmental Resistance: >9999 MΩ insulation resistance, endurance >7000 Ω AR±0.5% at 70+2°C for 1000 hrs
- Short Time Overload: AR ±0.2% for 5 seconds, apply 2.5× voltage or max overload voltage
- Damp Heat with Load: AR±0.3% at 40°C, 90-95% RH for 1000 hours
- Solderability: Minimum 95% coverage at 245°C for 3 seconds
- Resistance to Soldering Heat: AR±0.1% at 260°C for 10 seconds
- Dielectric Withstand Voltage: Max overload voltage for 1 minute
- Low Temperature Operation: AR-0.2% at -65°C for 1 hour, then 45 minutes recovery
- High Temperature Exposure: AR±0.5% at +155°C for 1000 hours
- Packaging: Reel with 10,000 units, paper tape specifications in millimeters as specified
- Reflow Soldering Cycles Allowed: 3 times
Buy the Multicomp Series 0201 Precision Resistor: MC003480
Purchase the high-precision thin film resistor MC003480 online today to ensure your electronic circuits perform reliably. With 0.1% tolerance, low TCR, and RoHS compliance, this 0201 size component is perfect for compact, high-accuracy applications. Designed with durable materials and environmental resistance, it guarantees stability over time. Whether you need it for aerospace, medical, or precision instrumentation, buying online provides quick access to quality components at competitive prices, delivered directly to your doorstep for seamless project progression.
Order your Multicomp Series 0201 MC003480 today and give your electronic projects the dependable precision they deserve.
