MULTICOMP PRO MC20429 Standard LED
This 5mm round standard LED with an integrated 12V resistor offers reliable illumination with high intensity and a compact design. Featuring a red AlGaAs chip and diffused lens, it operates efficiently within a temperature range of -25°C to +80°C. The LED provides a luminous intensity of 30 mcd at 20mA, with a peak emission wavelength of 660 nm. It is RoHS compliant, has a maximum power dissipation of 80 mW, and includes a built-in resistor for simple installation. Suitable for various signaling and indicator applications, it guarantees performance in rugged environments.
MULTICOMP PRO MC20429 Standard LED Specifications:
- Lens Diameter: 5 mm
- Source Colour: Red
- Chip Material: AlGaAs
- Lens Colour: Diffused
- Peak Emission Wavelength: 660 nm
- Forward Voltage: 2 - 2.5 V at 20mA
- Forward Current: 20 mA
- Peak Forward Current: 100 mA (1/10 Duty Cycle, 0.1ms Pulse)
- Power Dissipation: 80 mW
- Reverse Voltage: 5 V
- Operating Temperature Range: -25°C to +80°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Viewing Angle: 60°
- Light Intensity: 30 mcd at 20mA
- Solder Lead Spacing: Measured where leads emerge from the package

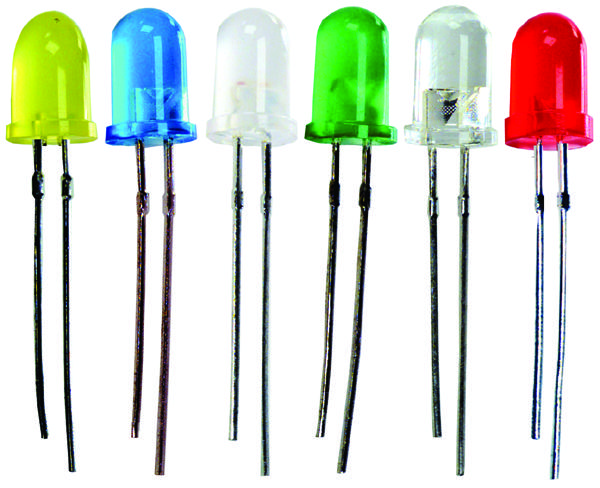

Buy the Buy Multicomp 5mm Round Standard LED Part Number MC20429 Online
Enhance your projects with the reliable and easy-to-install 5mm red LED featuring an integrated 12V resistor. Perfect for signaling, indicator lights, and simple illumination applications, this LED offers high intensity, durability, and consistent performance. Its compact size makes it suitable for a wide range of electronic devices and DIY projects. RoHS compliant and designed for rugged use, the MC20429 ensures easy installation and dependable operation in various environments. Order online now and add this essential component to your kit with confidence.
Order your Multicomp series MC20429 red LED with built-in resistor today and ensure reliable, efficient illumination for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC20429?
You can click on the BUY or RFQ button to purchase MC20429 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC20429?
You can download the MC20429 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC20429?
MULTICOMP PRO
