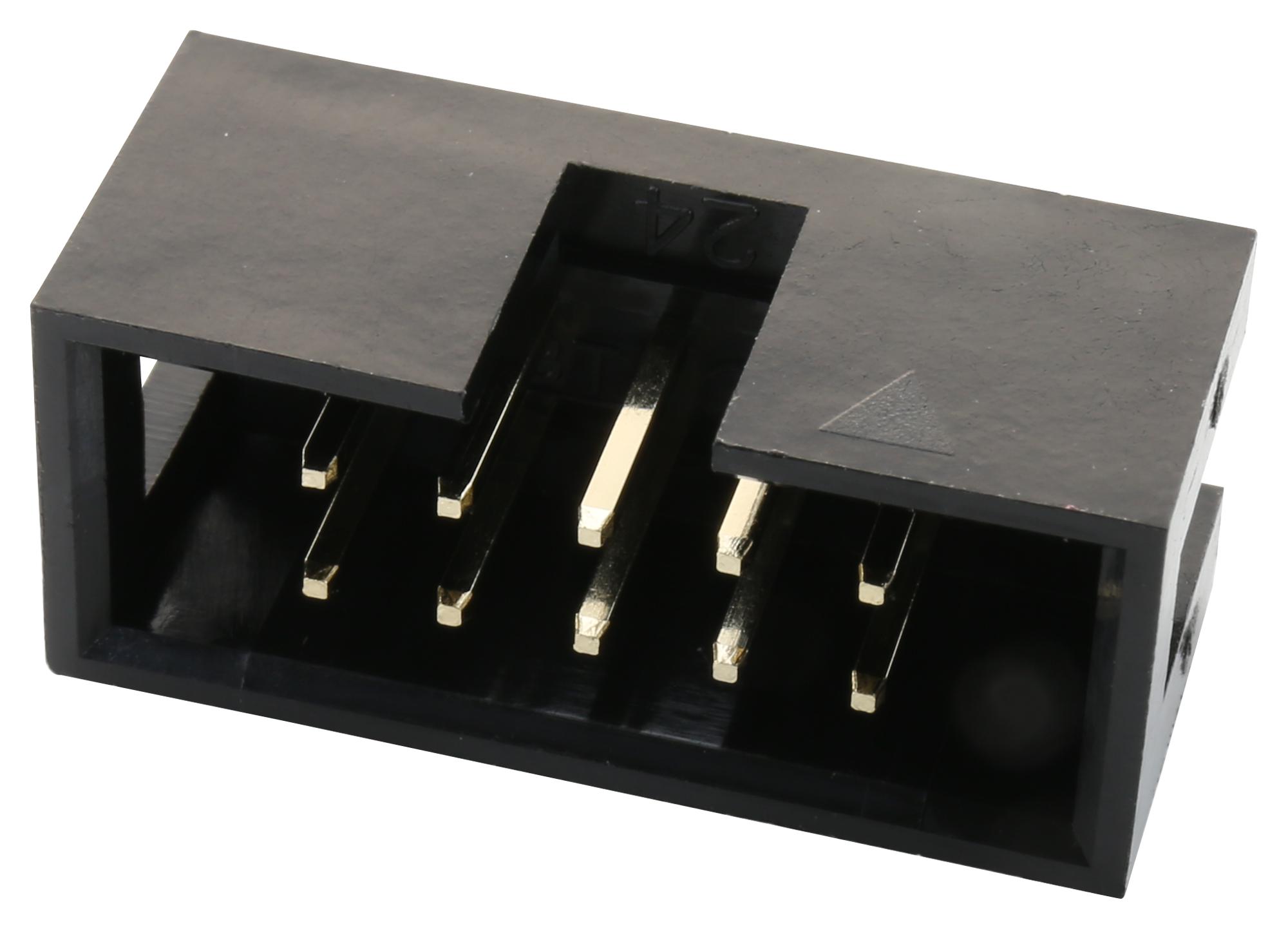

MULTICOMP PRO MC2541000STDIP Vertical PCB Header
This 2.54mm box header from Multicomp Pro is a double-row, vertical through-hole connector suitable for various industrial and electronic applications. Constructed with high-quality copper alloy contacts, gold-plated for reliable conductivity, and housed in UL94V-0 flammability-rated PBT insulators. It supports current ratings up to 8A AC/DC, with voltage ratings of 250V, and withstands voltage up to 600V AC for one minute. Operating temperature ranges from -40°C to +105°C. Precise dimensions ensure easy compatibility in dense PCB layouts, making it an ideal choice for industrial electronic assemblies.
MULTICOMP PRO MC2541000STDIP Vertical PCB Header Specifications:
- Contact Material: Copper Alloy
- Finish: Gold Plated
- Insulator Material: PBT (UL94V-0)
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Withstand Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Dimensions: Varies with number of positions, typical length approximately 15.28mm to 71.16mm, width ranging from 5.08mm to 60.96mm, height from 12.96mm to 68.84mm
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
Buy the Multicomp Pro MC2541000STDIP – Reliable 2.54mm Vertical PCB Headers for Industrial Applications
Experience the reliability and precision of the Multicomp Pro Vertical PCB Header series. Designed with high-quality copper contacts and durable insulating materials, these headers are perfect for demanding industrial and electronics projects. They feature gold-plated contacts for excellent conductivity, supporting current ratings up to 8A and voltage up to 250V. Suitable for dense PCB layouts, their robust design withstands temperatures from -40°C to +105°C. Buy online today to ensure secure, stable connections and enhance your system’s performance with trusted, high-quality connectors.
Order your Multicomp Pro series MC2541000STDIP today and give your projects the dependable quality they deserve with high-current, durable PCB headers.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2541000STDIP?
You can click on the BUY or RFQ button to purchase MC2541000STDIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2541000STDIP?
You can download the MC2541000STDIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2541000STDIP?
MULTICOMP PRO
