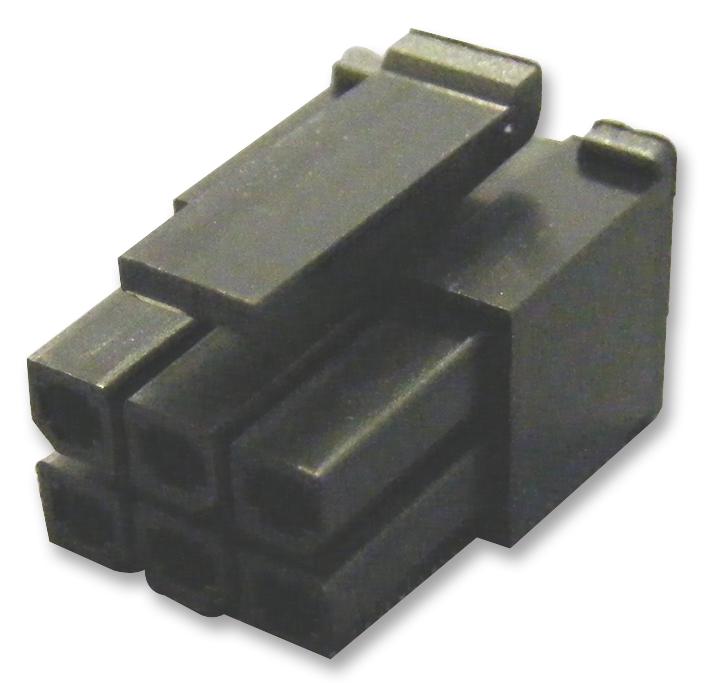

MULTICOMP PRO MC34589 Wire-to-Wire Connector
This advanced 4.2mm wire-to-wire dual row connector series from Multicomp Pro offers reliable electrical connections for various electronic and industrial applications. Designed with a robust nylon 66 housing and tin-plated brass and phosphor bronze contacts, these connectors support current ratings up to 9A and voltage ratings of 100V AC/DC. Compatible with wire sizes from 26AWG to 16AWG, they withstand temperatures from -40°C to +105°C. Available in multiple circuit configurations, they ensure secure, durable, and easy-to-install connections for efficient project assembly.
MULTICOMP PRO MC34589 Wire-to-Wire Connector Specifications:
- Current Rating: 9A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: ≤20mΩ
- Insulation Resistance: ≥1,000MΩ
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Wire Size: 26AWG to 16AWG
- Housing Material: Nylon 66
- Contact Material: Phosphor Bronze or Brass Tin Plated
- Maximum Panel Thickness: 2mm
- Circuit Configurations: 2 to 20 circuits with varying dimensions
- Dimensions: Millimetres, with detailed sizes for each circuit number
- Max. Panel Thickness: 2mm
- Plug Dimensions: Vary based on circuit number, detailed in datasheet
Buy the Buy Multicomp Pro Series2259 2257 Part Number MC34589 Online
Secure your electronic assemblies with the reliable Multicomp Pro Wire-to-Wire Connector series. Offering durable nylon housing, tin-plated contacts, and a variety of circuits, these connectors support current up to 9A and voltage up to 100V. Designed for easy installation with wire sizes from 26AWG to 16AWG, they withstand temperatures from -40°C to +105°C, ensuring performance in harsh environments. Conveniently available online for quick procurement, these connectors guarantee dependable electrical connections essential for industrial and automation projects.
Order your Multicomp Pro Series2259 MC34589 today and ensure reliable, compact wiring connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34589?
You can click on the BUY or RFQ button to purchase MC34589 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34589?
You can download the MC34589 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34589?
MULTICOMP PRO
