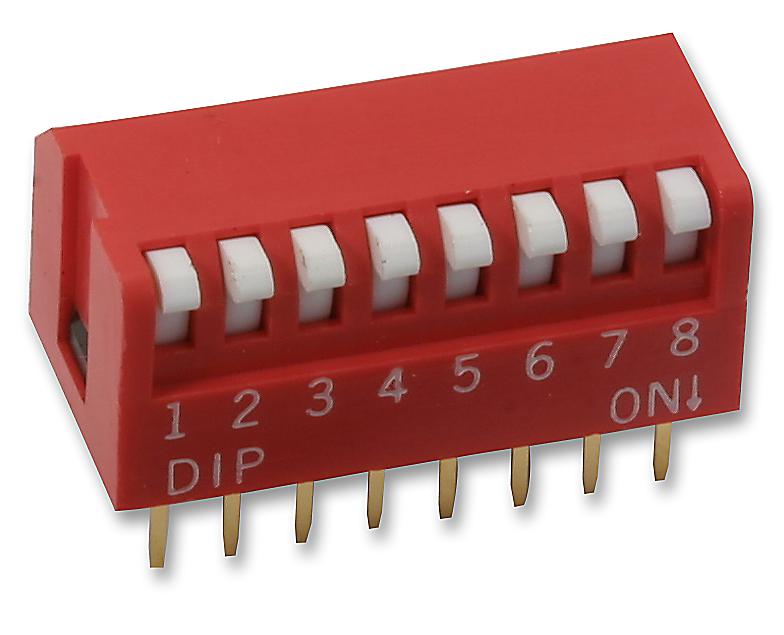

MULTICOMP-PRO MCNDP08V Piano Type DIP Switch
This 8-position DIP switch features a piano-type, SPST-NO configuration with push-down operation and a red cover, designed for industrial control, computer peripherals, and versatile control applications. Made with thermoplastic PBT, brass, and copper alloy components, it offers reliable contact resistance and dielectric strength, with a rated operating temperature of -40°C to +85°C. It supports up to 2000 cycles, ensuring durability in demanding environments, and complies with RoHS standards, making it suitable for a variety of electronic control uses.
MULTICOMP-PRO MCNDP08V Piano Type DIP Switch Specifications:
- Lever: Thermoplastic PBT UL 94V-0 - White
- Slider: Thermoplastic PBT UL 94V-0 - White
- Cover: Thermoplastic PBT UL 94V-0 - Red
- Contact: Copper Alloy, Gold Plated
- Terminal: Brass, Gold Plated
- Base: Thermoplastic PA66 UL 94V-0 - Black
- Contact Rating: Non-Switching 50mA, 50V DC; Switching 25mA, 24V DC
- Contact Resistance: 50mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 400gf max.
- Travel: 225°
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temp: Max 350°C for 5 seconds
- Vibration & Shock Resistance: MIL-STD-202F compliant
- Solderability: >75% coverage in 5 seconds immersion
Buy the Multicomp Series Piano DIP Switch: MCNDP08V
Purchase the Multicomp Series MCNDP08V DIP switch online today to ensure high durability, reliable switching, and efficient performance. Designed for industrial control, computer peripherals, and versatile electronic applications, this 8-position switch features a push-down mechanism, robust thermoplastic construction, and gold-plated contacts for optimal conductivity. Its rated operating temperature of -40°C to +85°C guarantees consistent operation in demanding environments, while its 2000 cycle lifespan ensures long-term usability. Get your trusted DIP switch now for seamless integration into your control systems and projects.
Order your Multicomp Series MCNDP08V high-quality DIP switch today and ensure reliable, durable switching performance for your electronic projects.
