MULTICOMP PRO MCPMR01TJ0104A50 Power Metal Resistor
The Power Metal Fixed Resistors are robust and reliable electronic components rated at 1W with a 5% tolerance, suitable for various high-power applications. Constructed with a ceramic rod body, Cu-Ni alloy resistance wire, and steel end caps, these resistors feature a sea-blue insulated non-flame coating for safety and durability. They operate across a temperature range of -55°C to +155°C with a maximum working voltage of 350V and overload voltage of 400V. Designed for consistent performance, these resistors are ideal for circuits requiring precise power dissipation and thermal stability.
MULTICOMP PRO MCPMR01TJ0104A50 Power Metal Resistor Specifications:
- Power Rating: 1W at 70°C, derated above 70°C
- Resistance Range: 0.560Ω to 1MΩ
- Tolerance: ±5%
- Max. Working Voltage: 350V
- Max. Overload Voltage: 400V
- Operating Temperature Range: -55°C to +155°C
- Dielectric Withstanding Voltage: 350V
- Materials: Ceramic rod body, Cu-Ni alloy resistance wire, Steel end caps
- Coating: Insulated, non-flame paint (Sea-Blue)
- Resistance Coefficient: +350 to +400 PPM/°C depending on resistance value
- Dimensions: Diameter approximately 0.54mm, Length approximately 25mm
- Construction: Resistance wire wound on ceramic rod, welded steel terminal ends
- RoHS Compliant: Yes

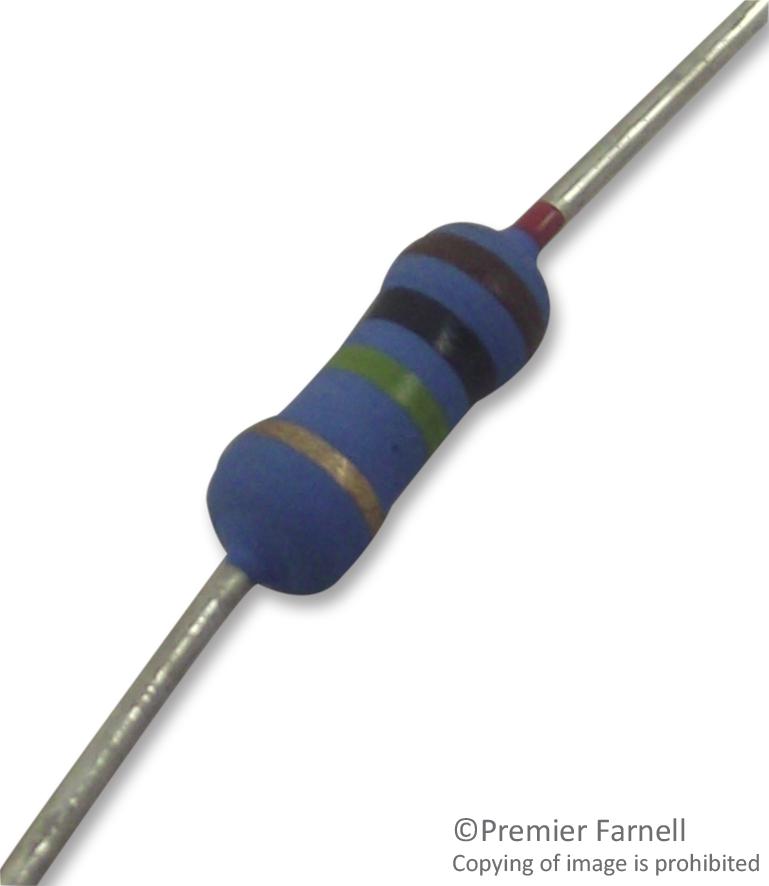

Buy the Buy Multicomp Power Metal Fixed Resistors Part Number MCPMR01TJ0104A50 Online
Order the Power Metal Fixed Resistors from Multicomp online today for their dependable performance in demanding power applications. With a power rating of 1 watt, these resistors are designed for precision and thermal stability. They feature ceramic bodies, Cu-Ni alloy resistance wire, and steel end caps for durability and consistent operation. Their temperature range from -55°C to +155°C, combined with voltage ratings up to 350V, makes them suitable for high-temperature environments. Buy online now to ensure your circuits perform reliably and efficiently.
Buy Multicomp Power Metal Fixed Resistors MCPMR01TJ0104A50 now and experience unmatched reliability and thermal stability for high-power electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPMR01TJ0104A50?
You can click on the BUY or RFQ button to purchase MCPMR01TJ0104A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPMR01TJ0104A50?
You can download the MCPMR01TJ0104A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPMR01TJ0104A50?
MULTICOMP PRO
