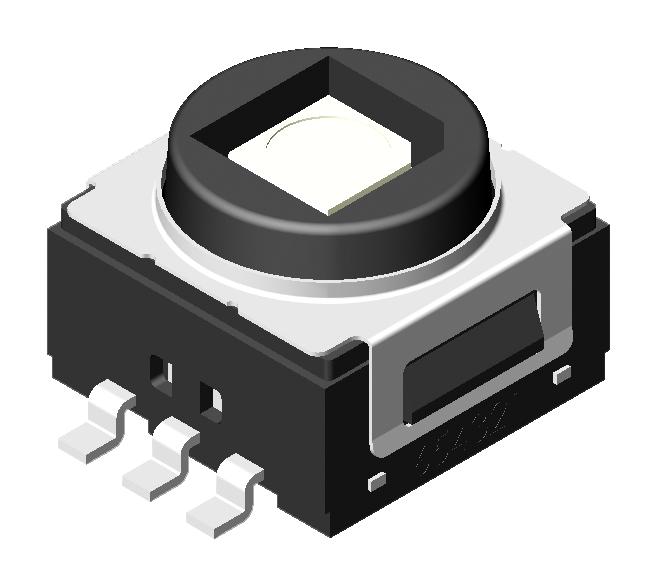

MULTICOMP PRO MP000740 Illuminated Tact Switch
This surface mount illuminated tact switch features a Single Pole Single Throw (SPST) configuration with a contact rating of 50mA at 32V DC. Designed for durability, it offers 300,000 operation cycles, an operating force of 400gf, and a travel of 0.45mm. Suitable for automotive, network, telecommunications, medical, and industrial control applications, it complies with RoHS standards. The switch is available in various LED colors including green, blue, white, yellow, amber, and red, and can be supplied on tape and reel for automated assembly. Its high insulation resistance and dielectric strength ensure reliable performance in demanding environments.
MULTICOMP PRO MP000740 Illuminated Tact Switch Specifications:
- Contact Rating: 50mA, 32V DC
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min at 100V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Force: 400gf
- Travel: 0.45mm
- Operating Life: 300,000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +85°C
- Dimensions: Millimeters, suitable for SMD mounting
- LED Colors: Green, Blue, White, Yellow, Amber, Red
- Compliance: RoHS, Lead-free
- Application areas include automotive, networking, telecom, medical, industrial controls
Buy the Multicomp Pro MP000740 – Reliable Illuminated Tact Switch for Industrial Applications
Order the illuminated tact switch from Multicomp Pro today for your industrial, automotive, or medical device projects. This high-quality SMD switch offers 50mA contact rating at 32V DC, with a lifespan of 300,000 cycles. Its compact size, multiple LED colors, and excellent insulation resistance make it ideal for demanding environments. Easy to integrate into your designs, it ensures reliable switching performance, durability, and compliance with RoHS standards. Purchase online now to secure fast delivery and premium technical support for your automation solutions.
Buy Multicomp Pro MP000740 now and experience unmatched reliability with durable operation cycles and versatile LED options for industrial and medical equipment.
