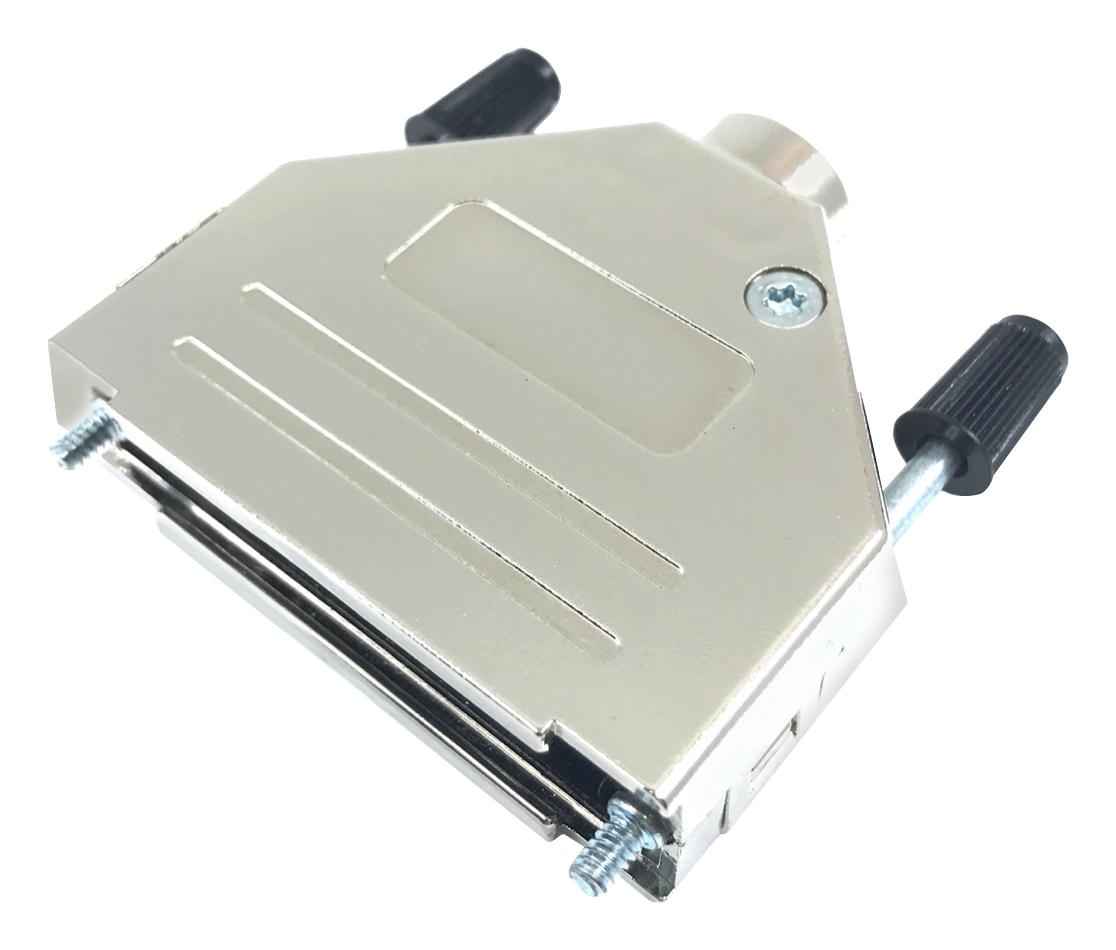

MULTICOMP PRO MP002016 D-Sub Connector with Backshell
The D-Sub connector with backshell is a reliable and versatile solution designed to minimize electromagnetic and RF interference. Available in sizes 9, 15, 25, and 37, it features long UNC 4-40 jackscrews for secure connection and accepts round foil and braided cables. Made from durable materials like steel, nickel-plated shells, and ABS or polycarbonate backshells approved for high temperature ranges from -40°C to 105°C. The solder connectors have a temperature tolerance of -55°C to +105°C, with gold over nickel contact plating, insulation resistance over 1000M, and withstand voltage of 1kV for 1 minute. Suitable for applications requiring EMI shielding and reliable connections in various electronic assemblies.
MULTICOMP PRO MP002016 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated; Steel, Tin-plated shells; PBT, UL94 V-0 insulators
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate, 3mm to 13mm diameter
- Locking Screws: UNC 4-40 long jackscrews, black color
- Cable Outlet: Straight
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 minute
- Contact Pins: Copper alloy, gold over nickel plating
- Stamped Contacts: Class 3, minimum 100 inserts
Buy the Buy multicomp D-Sub Connector with Backshell Part Number MP002016 Online
Purchase the multicomp D-Sub Connector with Backshell today for secure, EMI-shielded connections perfect for industrial, commercial, and electronics applications. Designed with durable materials, it offers excellent temperature resistance from -55°C to +105°C, with options in sizes 9, 15, 25, and 37, compatible with round foil and braided cables. Features long UNC 4-40 jackscrews for secure fitment, straight cable outlet, and robust construction approved per industry standards including VDE and FCC. Enhance your electronic assembly with this versatile, reliable connector for optimal signal integrity and environmental resilience.
Get multicomp MP002016 today—built for durability with EMI shielding and secure metalized plastic backshell for reliable electronic connections.
