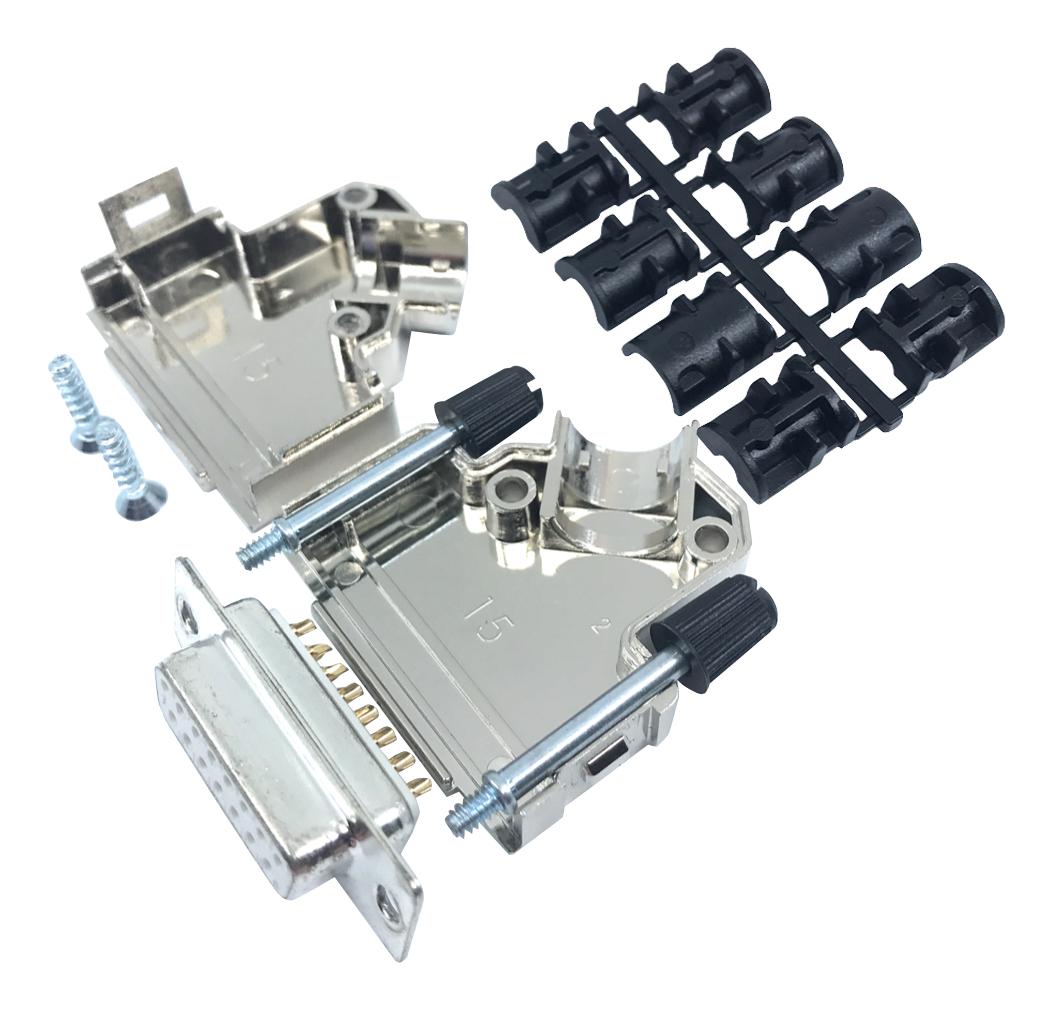

MULTICOMP PRO MP002052 D-Sub Connector with Backshell
This D-Sub connector with backshell offers reliable shielding and secure connections, minimizing electromagnetic interference for industrial, automation, or electronic applications. It features a 45° angled outlet, long UNC 4-40 jackscrews, and accepts round foil and braided cables. Made from durable materials like steel, Ni-plated ABS, and UL94 V-0 rated insulators, it provides excellent voltage withstand and insulation resistance, suitable for various environments from -40°C to +105°C. Perfect for ensuring secure, interference-free connections in complex electronic systems. Compatible with DE-9, DA-15, DB-25, DC-37 connector formats with metalized plastic backshells.
MULTICOMP PRO MP002052 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated steel, Polycarbonate UL94 VO, PBT UL94 V-0
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, accepts 3mm to 13mm diameter cables
- Locking Screws: Long UNC 4-40 jackscrews, black color
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Contact Pins: Copper alloy with selective gold over nickel plating
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
- Cable Outlet: Angled
- Shell Material: Steel, tin-plated
- Connector Types: DE-9, DA-15, DB-25, DC-37 with metalized plastic backshells
- Part Numbers: MP002020, MP002021, MP002022, MP002023
Buy the Multicomp Series D-Sub Interference Shielding Connector: MP002052
Purchase the Multicomp Series D-Sub connector with backshell MP002052 online for superior EMI shielding and secure connections. Designed for industrial, automation, and electronic applications, it features an angled outlets, durable steel shell, and UL ratings. Easy to install with long UNC 4-40 jackscrews, it accommodates cables from 3mm to 13mm diameter. Its robust construction provides excellent insulation resistance and withstands voltages up to 1 kV, functioning reliably from -40°C to +105°C. Ensure your system remains interference-free with this high-performance connector.
Get Multicomp Series D-Sub connector MP002052 today—built for reliable, interference-free connections in industrial and electronic environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002052?
You can click on the BUY or RFQ button to purchase MP002052 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002052?
You can download the MP002052 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002052?
MULTICOMP PRO
