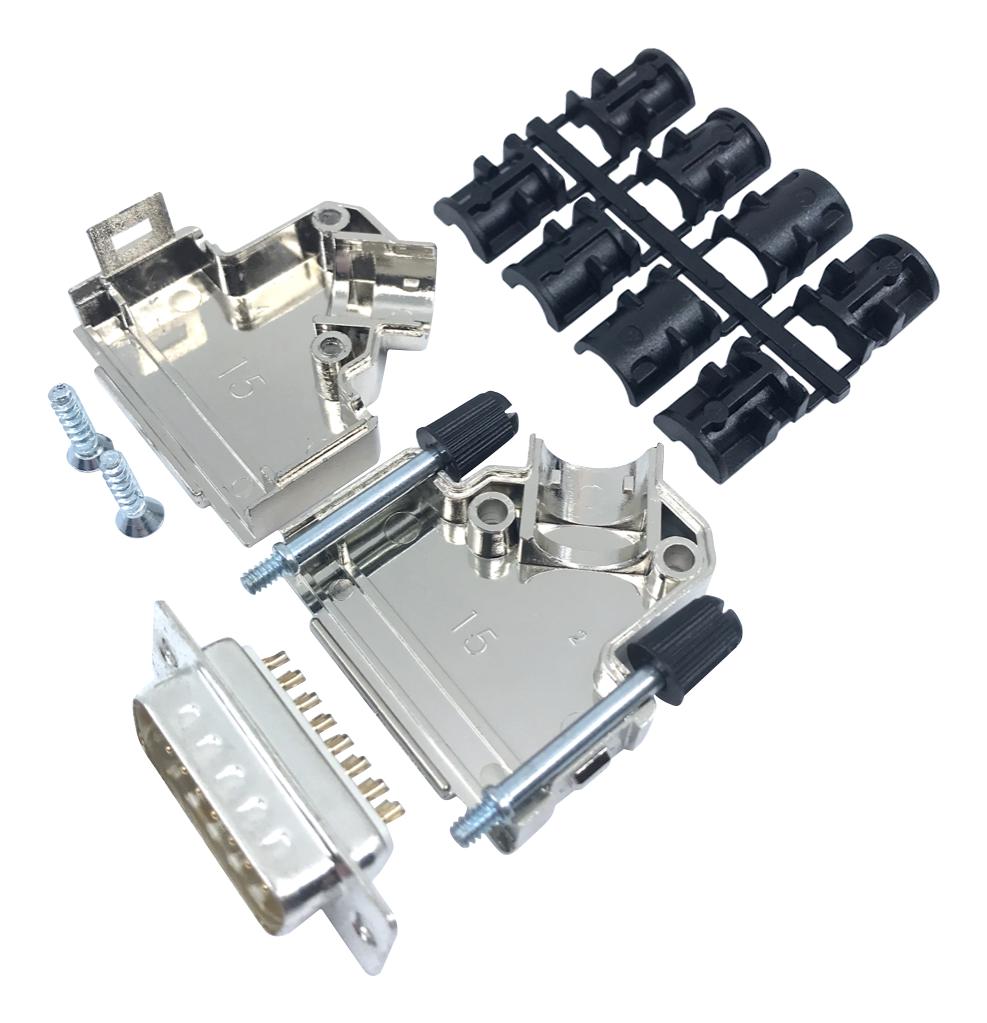

MULTICOMP PRO MP002053 D-Sub Connector
This angled D-Sub connector with backshell provides secure and reliable connections for electronic and communication systems. Designed with high-quality materials like steel and nickel-plated contact pins, it minimizes interference and ensures durability across a temperature range of -55°C to +105°C. Suitable for round foil and braided cables with a diameter of 3mm to 13mm, it features long UNC 4-40 jackscrews for easy assembly without special tools. The connector supports high attenuation levels (>40 dB) and complies with international standards, making it ideal for professional and industrial applications.
MULTICOMP PRO MP002053 D-Sub Connector Specifications:
- Material: ABS with Ni-plated steel shell
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate, UL94 V-0
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40
- Jackscrew Colour: Black
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator: PBT, UL94 V-0
- Contact Pins: Copper alloy with Gold over Nickel plating
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 2.1 kV for 1 minute
- Dimensions: Vary by part number, see detailed diagram
Buy the Multicomp Series D-Sub Connector: MP002053
Purchase the Multicomp Series D-Sub Connector MP002053 online for reliable, high-quality connections suitable for industrial and electronic systems. Crafted with durable materials, it offers excellent EMI shielding, easy assembly, and compatibility with round foil and braided cables from 3mm to 13mm in diameter. Its robust design includes long UNC 4-40 jackscrews for secure attachment, and it meets international standards. Perfect for professional applications requiring noise reduction and dependable performance in demanding environments.
Get Multicomp Series D-Sub Connector with Backshell MP002053 today—designed for robust, EMI-shielded connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002053?
You can click on the BUY or RFQ button to purchase MP002053 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002053?
You can download the MP002053 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002053?
MULTICOMP PRO
