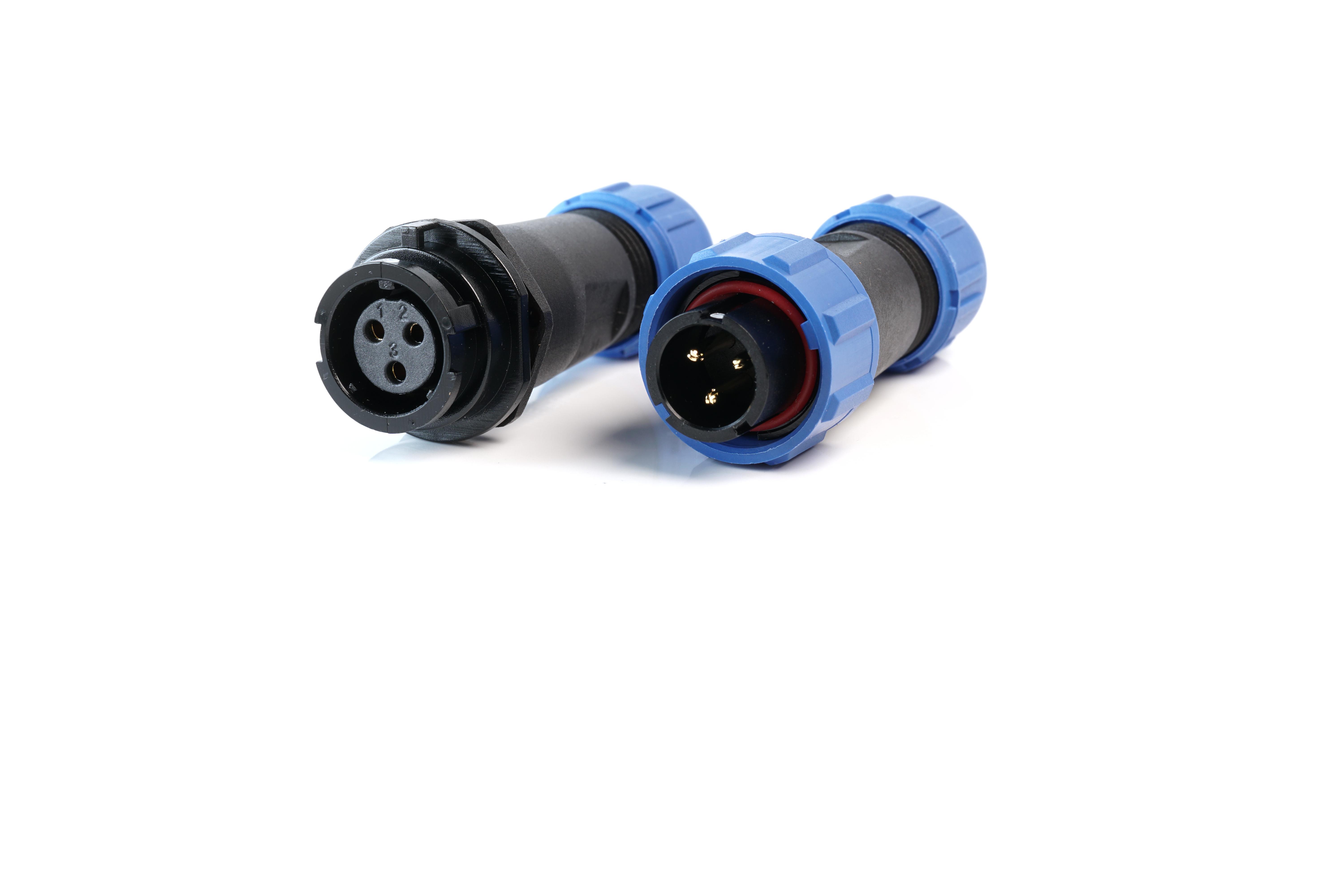

MULTICOMP PRO MP002642 industrial connector
The MP-T13 IP67 series are durable, weather-sealed connectors with bayonet coupling, suitable for indoor and outdoor use. They offer panel, cable, and inline mounting options, fitting a 13mm cut-out. Designed with solder termination and brass contacts with gold plating, these connectors support 2, 3, 4, 5, and 7 pole configurations. They meet IP67 standards, resist dust and water ingress, and are ideal for automation, process control, medical devices, security, testing, and industrial automation. An IP67-rated protective cap is also available for additional environmental protection, ensuring reliable connections in harsh conditions.
MULTICOMP PRO MP002642 industrial connector Specifications:
- IP67 rated dust and water resistance
- Bayonet coupling for quick connection
- Material: Nylon66 shell, PPS insert
- Contact Material: Brass with gold plating
- Termination: Solder
- Support for 2, 3, 4, 5, and 7 poles
- Rated Current: Up to 13A
- Rated Voltage: Up to 250V
- Suitable for cable diameter 4mm to 6.5mm
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Insert Material: PPS, max temp 260°C
- Dimensions compatible with 13mm panel cutout
- Includes protective dust cap for receptacles
Buy the Buy Multicomp Series MP002642 IP67 Connectors Part Number MP002642 Online
Purchase the Multicomp Series MP002642 IP67 connector online today for robust, weatherproof connections in industrial, automation, and outdoor environments. Featuring quick bayonet coupling, various mounting options, and high IP67 sealing, this connector offers reliability, durability, and versatile cable and panel mounting to meet your project needs. Designed with brass contacts, gold plating, and solder termination, it supports multiple poles and ensures secure connections in harsh conditions. Add the IP67-rated dust cap for extra environmental protection and enjoy fast, hassle-free ordering from authorized distributors for prompt delivery.
Order your Multicomp Series MP002642 IP67 connector today and ensure reliable outdoor and industrial connections with quick bayonet coupling.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002642?
You can click on the BUY or RFQ button to purchase MP002642 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002642?
You can download the MP002642 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002642?
MULTICOMP PRO
