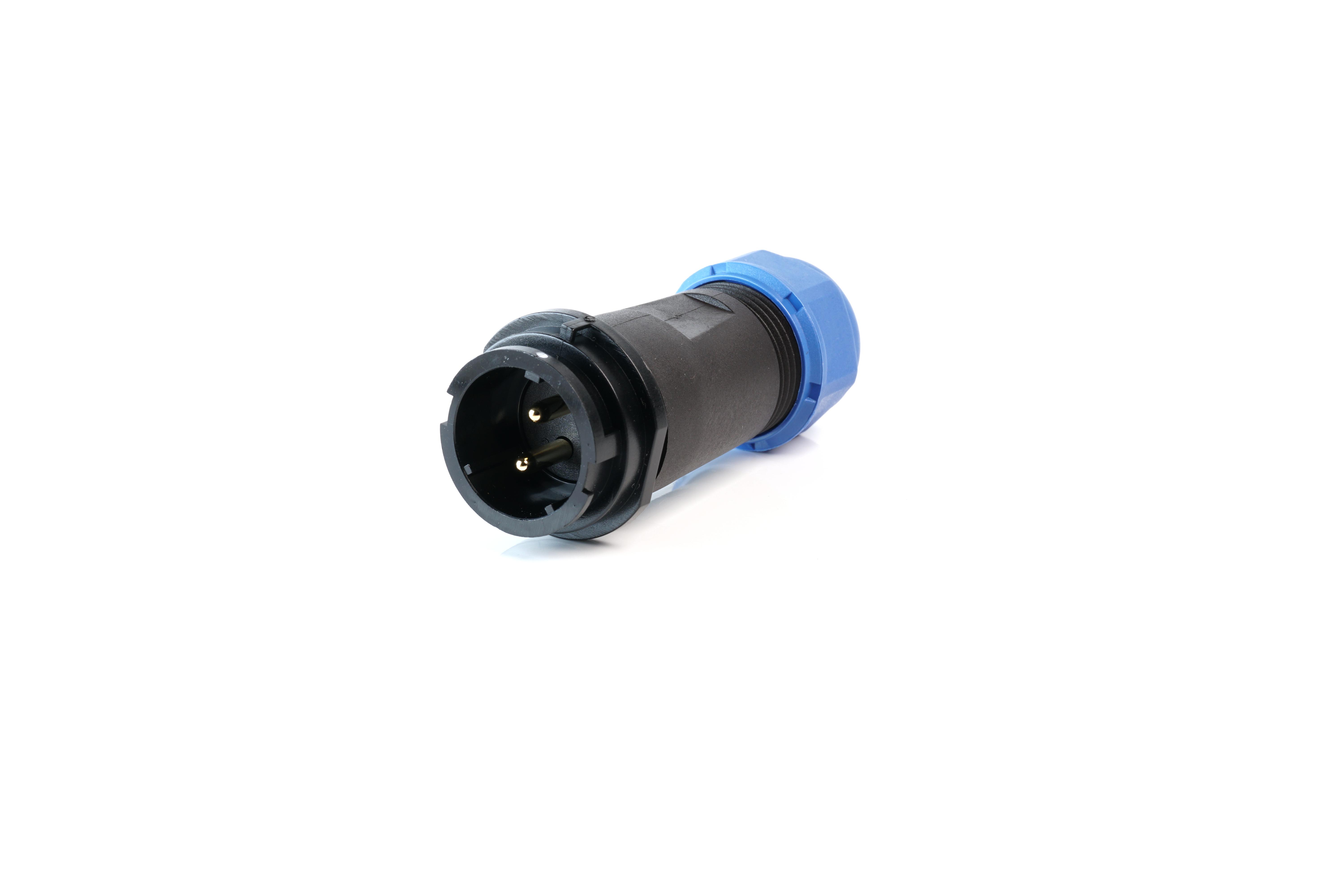

MULTICOMP PRO MP002681 weatherproof industrial connectors
The MP-T21 IP67 series connectors are robust, weatherproof components designed for reliable industrial and outdoor use. Featuring bayonet couplings, they ensure quick, secure connections and disconnections. Available in panel, cable, and in-line mount configurations, these connectors support multiple contact variants, including 2, 3, 4, 5, 7, 9, and 12 poles, with solder or screw terminations. They are rated at IP67 for dust and water resistance, suitable for harsh environments such as automation, medical, security, and testing fields. An IP67 dust cap is also available for added protection, making these connectors versatile for outdoor and indoor applications.
MULTICOMP PRO MP002681 weatherproof industrial connectors Specifications:
- IP67 rated for dust and water resistance
- Bayonet coupling for quick connection/disconnection
- Configuration options include 2, 3, 4, 5, 7, 9, 12 pins
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Temperature range: -40°C to +80°C
- Termination types: Solder and screw
- Mating cycle: 500
- Maximum contact current: 30A
- Rated voltage: 500V AC for most contacts, 400V AC for smaller contacts
- Wire size: up to 1.5mm² for screw terminations, compatible with approximately 18 AWG
- Includes dust cap for protection against environmental elements
- Suitable for industrial automation, medical, security, test, and measurement applications
Buy the multicomp U2026 Reliable Connectors for Industrial Applications
Purchase multicomp IP67 weatherproof connectors now to ensure secure, reliable connections for your industrial, automation, and outdoor projects. These durable connectors feature bayonet couplings for quick assembly, supporting multiple configurations from 2 to 12 poles with solder or screw termination options. Designed with nylon66 shells, brass contacts, and IP67 sealing, they provide excellent resistance against dust, water, and harsh conditions. An IP67 dust cap is available for added environmental protection. Ideal for a wide range of industrial, medical, security, and test applications, these connectors deliver high performance and easy installation for demanding environments.
Buy multicomp IP67 connectors now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002681?
You can click on the BUY or RFQ button to purchase MP002681 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002681?
You can download the MP002681 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002681?
MULTICOMP PRO
