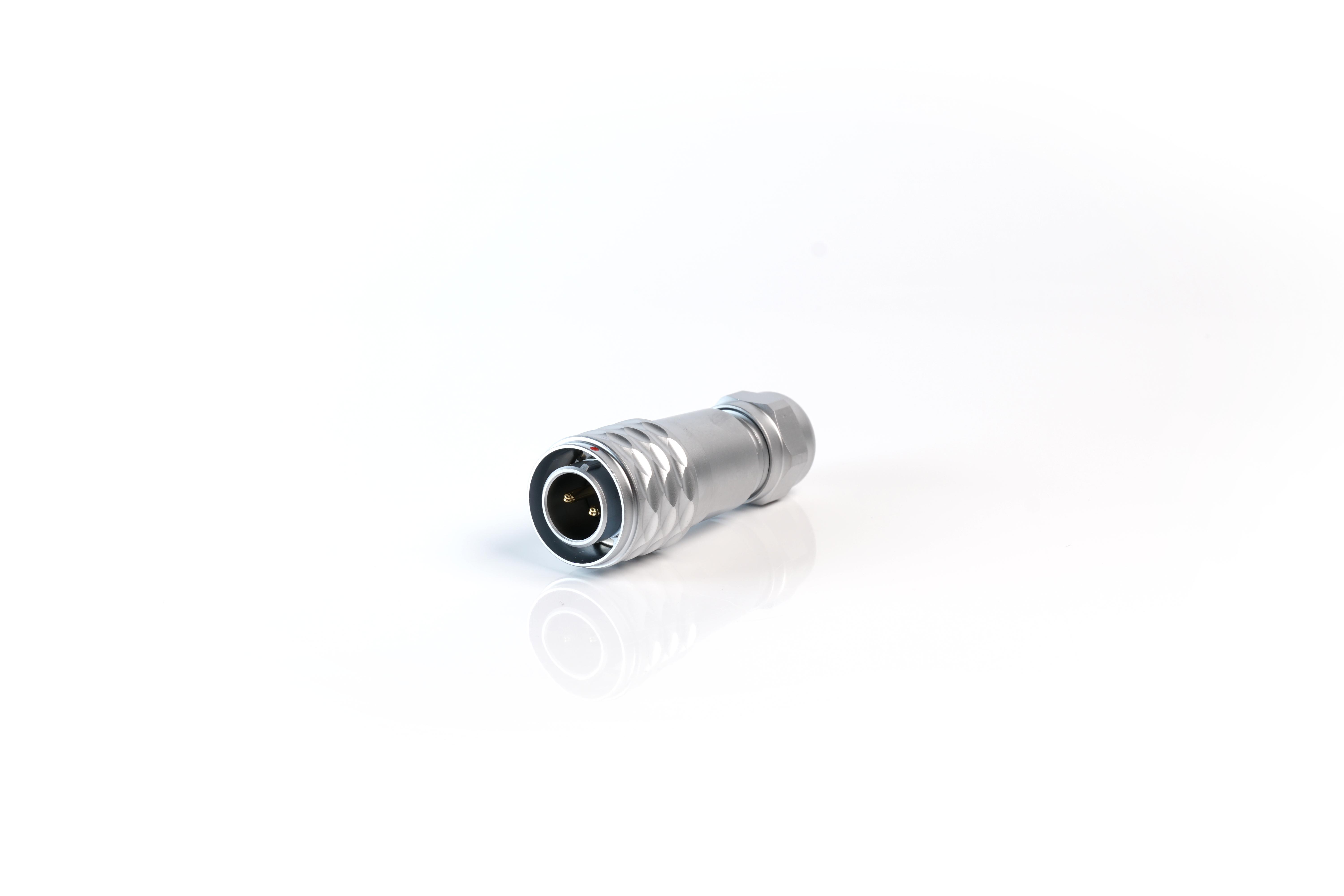

MULTICOMP PRO MP002731 Industrial M12 Push-Pull Connector
The MP M12 push-pull connectors are rugged, chrome-plated brass connectors designed for harsh environments while maintaining an attractive appearance. Available in panel mount, cable mount, and inline configurations, they facilitate cable-to-cable or cable-to-panel connections. The push-pull coupling provides quick, secure connections, and the IP67 weatherproof rating ensures excellent protection against dust and water. Suitable for indoor and outdoor use, these connectors feature a 12mm mounting cut-out, solder termination, and support 2, 4, 5, or 7 poles, making them ideal for industrial automation, process control, and automation systems.
MULTICOMP PRO MP002731 Industrial M12 Push-Pull Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13A (2-pin), 5A (others)
- Rated Voltage: 250V (2-pin), 200V, 180V, 125V (others)
- Test Voltage: 1500V or 1000V (depending on contact)
- Contact Resistance: 2.5 to 5 mΩ
- Wire Size: 0.75/18 AWG
- Connector Diameter Range: 4mm to 6.5mm
- Mounting Type: Panel, cable, in-line
- Dimensions: 4 to 6.5 mm outer diameter, 20 mm panel cutout
- Coupling Mechanism: Push-pull
- Termination: Solder
- Operating Temperature: -40°C to +85°C
Buy the Multicomp Series M12 Push-Pull Connector: MP002731
Order the Multicomp M12 Push-Pull Connector MP002731 today for your industrial automation projects. Engineered with a durable chrome-plated brass shell and high-quality contacts, this connector offers IP67 weatherproofing for outdoor and indoor environments. Its versatile options include panel, cable, or inline mounting, supporting 2, 4, 5, or 7 contacts. Easy to connect with push-pull mechanism, rated for 13A current, and capable of withstanding harsh conditions. Perfect for automation, process control, security systems, and testing applications—rely on this rugged, long-lasting connector for your industry needs.
Get Multicomp MP002731 today—built for rugged industrial automation and reliable connections with IP67 sealing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002731?
You can click on the BUY or RFQ button to purchase MP002731 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002731?
You can download the MP002731 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002731?
MULTICOMP PRO
