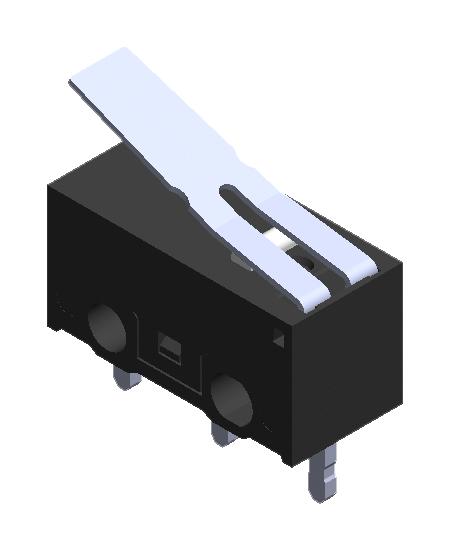

MULTICOMP PRO MP005558 Microswitch
High-reliability through-hole snap action microswitch designed for various electronic and household applications including mice, projectors, communication devices, and security systems. It features long operating life up to 1,000,000 cycles, contact ratings up to 3A at 125V AC, and voltage resistance of AC 1500V for one minute. The switch operates between -25°C to +75°C, ensuring consistent performance in diverse environments. With multiple actuator options such as hinge, bent, pin, and roller levers, this versatile switch offers durability, precise switching, and excellent electrical insulation resistance, suitable for PCB mounting.
MULTICOMP PRO MP005558 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 0.1A at 30V DC
- Mechanical Durability: 1,000,000 cycles MIN.
- Electrical Durability: 8,000 cycles MIN.
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MQ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground, AC 1500V 1 minute between each terminal and non-current-carrying metal part.
- Operating Temperature: -25°C to +75°C.
- Actuator Types: Hinge, Bent, Pin, Simulated Roller Lever.
- Mounting: Through-hole snap action switch.
- RoHS Compliant and UL certified.
- Wide application: Mice, projectors, communication equipment, security systems, household appliances.
Buy the Multicomp Series Microswitch: MP005558
Click now to purchase the high-quality Microswitch MP005558 online. Ideal for electronic projects, household appliances, and security systems, this durable switch offers long life and excellent electrical performance. Suitable for PCB mounting with various actuator options including hinge, bent, pin, and roller levers. With a contact rating of up to 3A at 125V AC and a work life exceeding 1,000,000 cycles, this switch guarantees reliability and consistent performance in demanding environments. Buy online today for fast delivery and dependable operation.
Order your Multicomp Series microswitch MP005558 today and enhance the reliability of your electronic and household devices with long-lasting and precise switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005558?
You can click on the BUY or RFQ button to purchase MP005558 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005558?
You can download the MP005558 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005558?
MULTICOMP PRO
