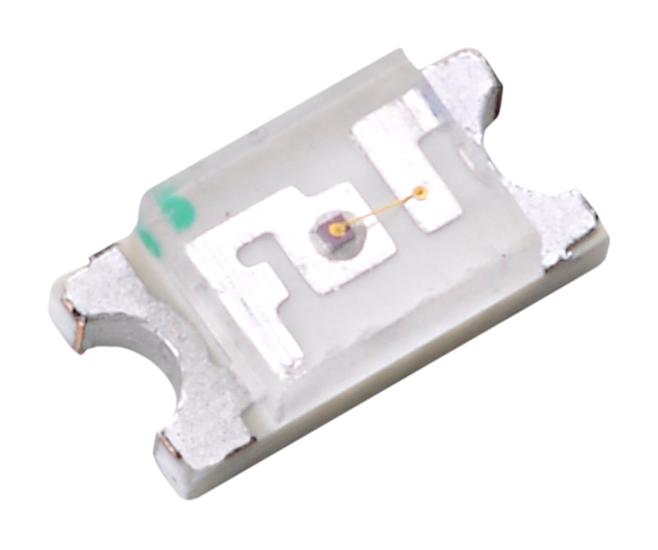

MULTICOMP PRO MP005930 Blue Chip LED
This surface mount blue chip LED in 1206 package offers a compact size of 3.2mm x 1.6mm with 0.7mm thickness, ideal for backlight and indicator applications. It features high luminous intensity, wide viewing angles up to 120 degrees, and operates efficiently within a temperature range of -40°C to +85°C. Suitable for automotive and telecommunication uses, it provides a forward voltage around 3.6V at 20mA, with excellent optical performance and RoHS compliance. Its robust design ensures reliable performance for various electronic and lighting projects.
MULTICOMP PRO MP005930 Blue Chip LED Specifications:
- Package Dimensions: 3.2mm x 1.6mm, thickness 0.7mm
- Operating Temperature: -40°C to +85°C
- Forward Voltage: 3.6V at 20mA
- Peak Forward Current: 100mA
- Reverse Voltage: 5V
- Luminous Intensity: 170 to 385 mcd
- Viewing Angle: 120 degrees
- Wavelength: 464 to 476 nm
- Power Dissipation: 95mW
- RoHS Compliant
- Material: InGaN
- Peak Current: 100mA
- Storage Temperature: -40°C to +85°C
Buy the Multicomp MP005930 – Reliable Blue LED for Industrial Applications
Order the Multicomp Blue Chip LED in 1206 package today and enhance your electronic projects with high brightness, wide viewing angles, and superior durability. Ideal for backlighting, indicators, and LCD displays, this RoHS-compliant surface mount LED ensures consistent performance across a range of temperatures. Its compact size makes it perfect for space-constrained applications in automotive, telecommunication, and industrial equipment. Shop online now to enjoy fast delivery and competitive prices on this reliable, high-quality LED component designed for demanding electronic applications.
Buy Multicomp MP005930 now and experience unmatched reliability and performance for your lighting and indicator needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005930?
You can click on the BUY or RFQ button to purchase MP005930 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005930?
You can download the MP005930 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005930?
MULTICOMP PRO
