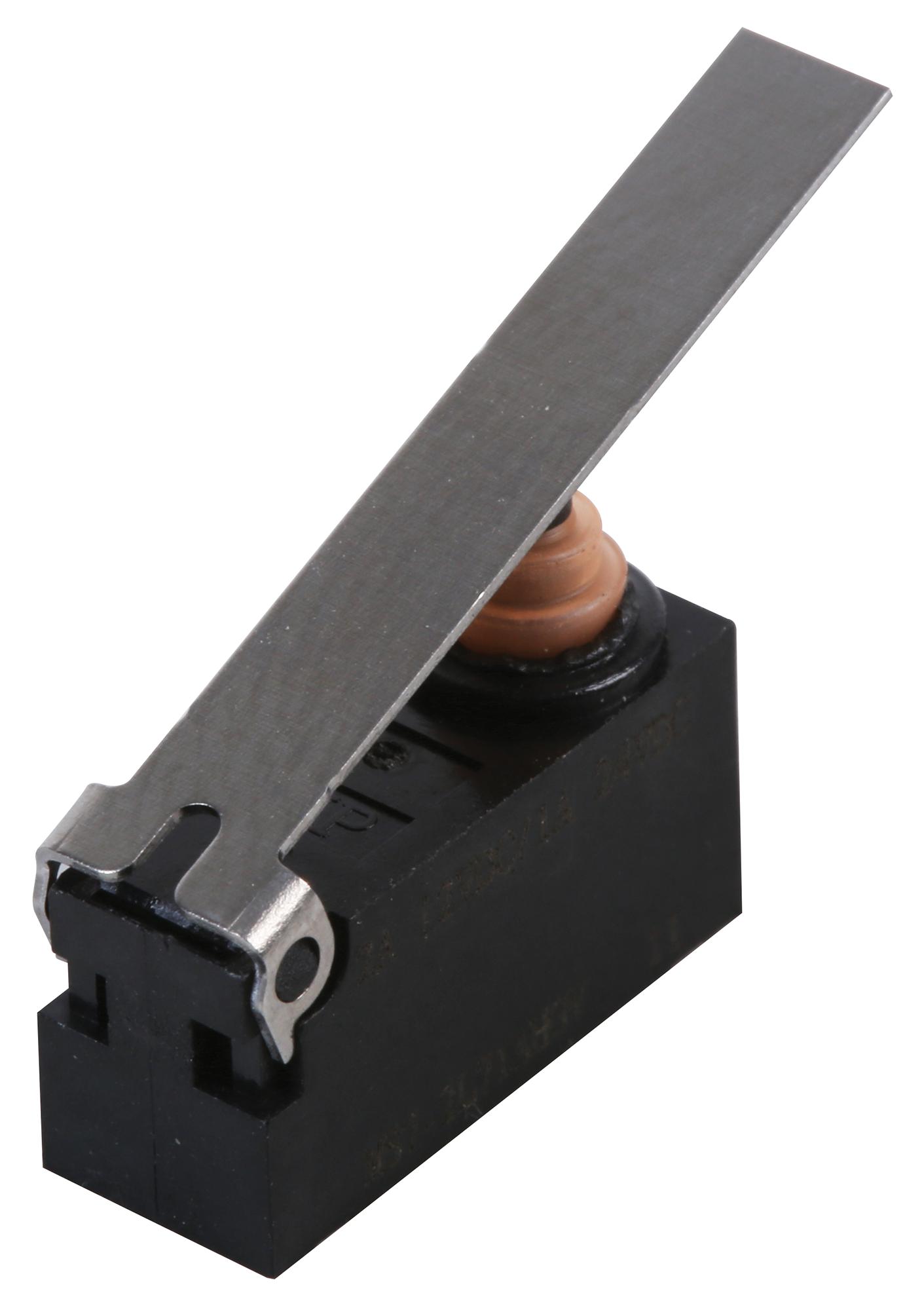

MULTICOMP PRO MP006210 Snap Action Microswitch
This compact snap action microswitch features a pin plunger actuator with SPDT contact configuration, designed for industrial, automotive, and household appliance applications. It offers durable mechanical and electrical performance, with withstands over a million cycles, operating in temperatures from -40°C to +85°C, and sealing IP67 for protection against dust and moisture. Suitable for use with various lever options and through-hole terminals, it provides reliable switching for automation and control systems, supporting resistive loads up to 2A at 12V DC. Its high durability and flexible mounting make it ideal for demanding environments.
MULTICOMP PRO MP006210 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500V DC
- Dielectric Strength: 600V AC terminal to terminal; 1500V AC terminal to ground
- Operating Temperature: -40°C to +85°C
- Sealing: IP67
- Actuator Types: Pin plunger, long hinge lever, simulated roller lever
- Mounting: Through-hole terminals
- Rated Voltage Resistive Load: 12V DC, 2A
- Overtravel: 1.4mm to 2.5mm, depending on model
- Operating Force: 50-122gf (0.5-1.2N)
- Release Force: 3-10gf (0.03-0.1N)
- Total Travel: 5.1mm to 9.5mm, depending on model
- Physical Size: Length around 5.1mm to 41mm, Width approximately 6.4mm to 15mm
Buy the Buy multicomp snap action microswitch Part Number MP006210 Online
Order the multicomp snap action microswitch MP006210 online now to benefit from reliable performance in industrial, automotive, and household applications. Featuring a pin plunger actuator, SPDT contacts, and IP67 sealing, this switch is designed for demanding environments, supporting resistive loads up to 2A at 12V DC. Its robust construction ensures over a million cycle durability and temperature tolerance from -40°C to +85°C. Perfect for automation, control, and safety systems, it provides quick, dependable switching with versatile mounting options for easy installation.
Get multicomp MP006210 today—built for precision and long-lasting durability in automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006210?
You can click on the BUY or RFQ button to purchase MP006210 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006210?
You can download the MP006210 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006210?
MULTICOMP PRO
