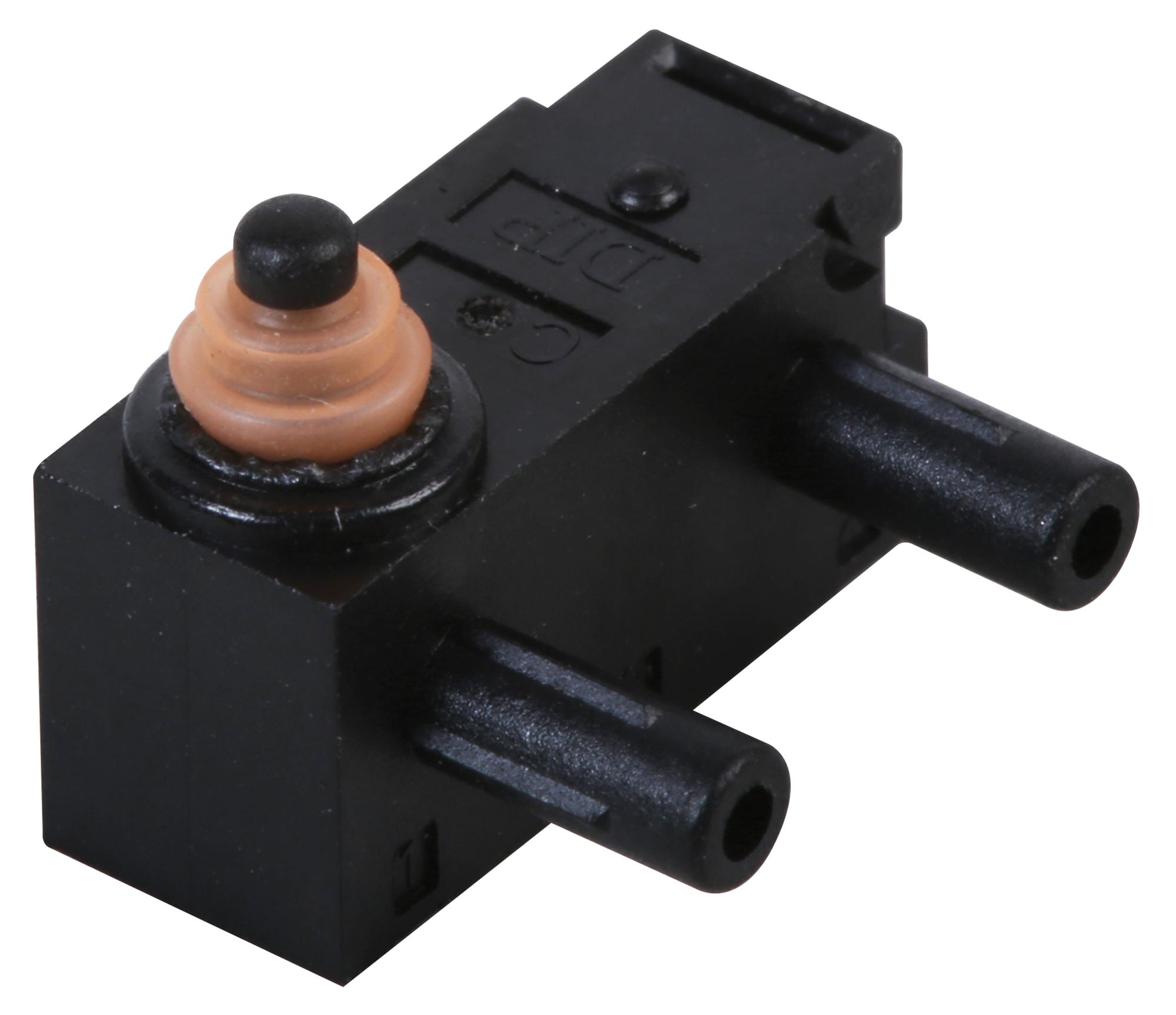

MULTICOMP PRO MP006212 Snap Action Microswitch
This is a versatile snap action microswitch designed for automation, household appliances, and automotive applications. It features multiple actuator options, including pin plungers, levers, and simulated rollers, with sealed IP67 construction for durability. The switch supports resistive loads up to 2A at 12V DC, with mechanical durability exceeding 1 million cycles. Its compact size and various terminal configurations make it suitable for PCB mounting and through-hole assembly, providing reliable and precise switching performance in demanding environments.
MULTICOMP PRO MP006212 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 12V DC, 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ maximum
- Insulation Resistance: 100MΩ minimum at 500V DC
- Dielectric Strength: 600V AC between terminals, 1500V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Sizes: Approximately 13.3mm x 5.3mm x 7.2mm
- Various actuator options including pin plunger, long hinge lever, simulated roller lever, with sealed IP67 enclosure
- Designed for automated, household, and automotive applications with PCB and through-hole terminals
Buy the Multicomp Series Microswitches: MP006212
Order the Multicomp Series MP006212 microswitch online today and ensure reliable performance in automation, household appliances, and automotive systems. Equipped with multiple actuator options and sealed IP67 enclosure, this durable switch supports 2A at 12V DC, providing long-lasting, precise switching in demanding environments. Its compact size and versatile mounting options make it ideal for PCB and through-hole installations. Trust in high quality and quick online delivery to keep your projects running smoothly with this dependable switch.
Get Multicomp Series MP006212 microswitch today—built for precision and long-lasting durability in automation and household applications.
