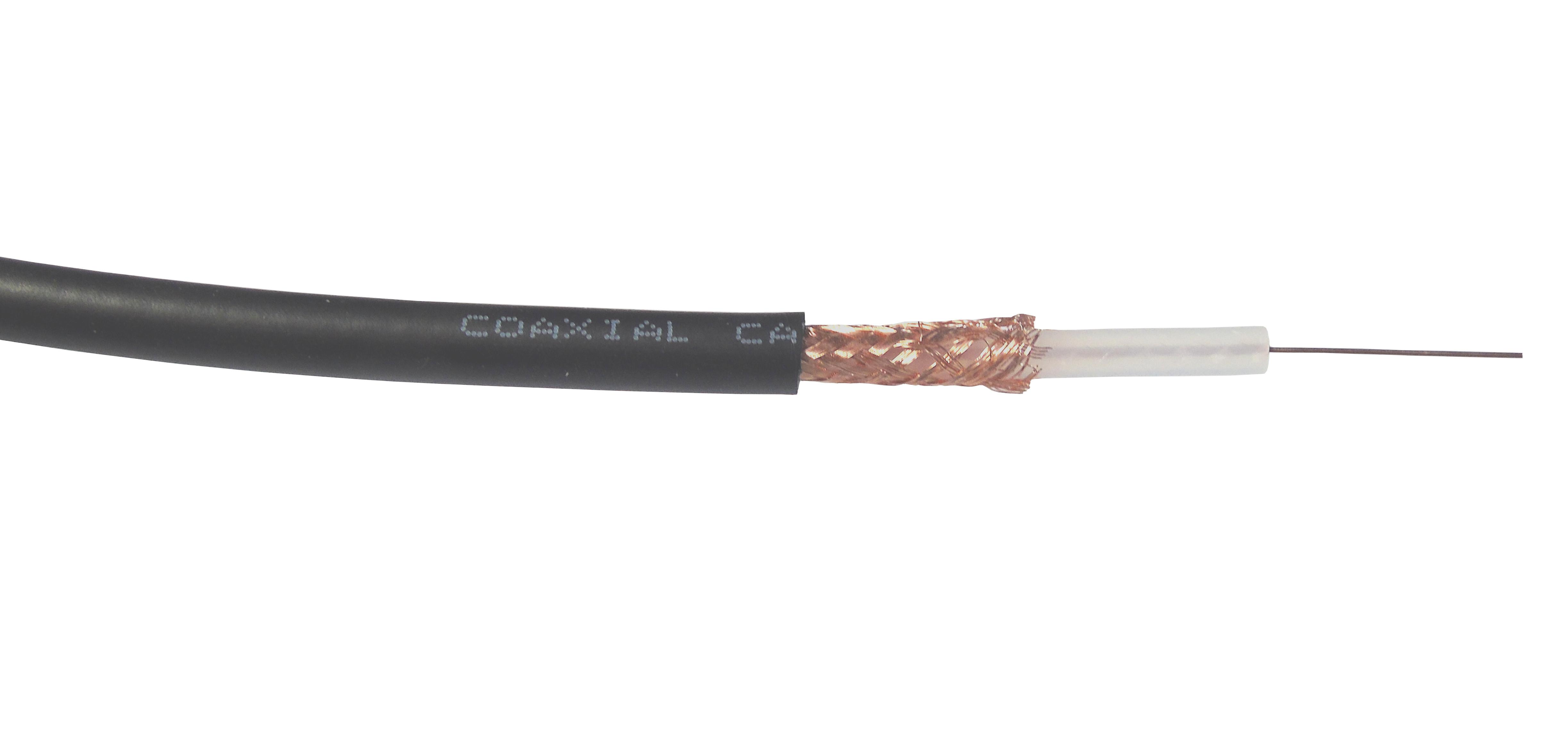

MULTICOMP PRO RG59 RG59 Coaxial Cable
RG59 coaxial cable is a high-quality, durable cable designed for signal transmission in surveillance, CCTV, and broadband applications. It features a solid polyethylene dielectric, copper braid shield, and PVC black jacket, offering excellent shielding and flexibility. With a characteristic impedance of 75 ohms and maximum operating frequency of 1GHz, it delivers minimal signal loss with attenuation levels suitable for long-distance transmission. The cable withstands voltage surges up to 1700V and operates efficiently within a temperature range of -40°C to +85°C. Ideal for reliable, high-performance data, video, and RF signal transfer.
MULTICOMP PRO RG59 RG59 Coaxial Cable Specifications:
- Impedance: 75Ω ±30
- Capacitance: 67pF/m
- Velocity of Propagation: 66%
- Max. Operating Frequency: 1GHz
- Max. Operating Voltage: 1700V
- Corona Extinction Voltage: 2300V
- Voltage Withstand: 7000V RMS
- Spark Test: 5000V RMS
- Inner Conductor Material: Copper Covered Steel
- Dielectric Material: Solid Polyethylene
- Shield: 80% Copper Braid
- Jacket: PVC-black
- Diameter Inner Conductor: 0.023 inch (0.58 mm)
- Diameter Dielectric: 0.146 inch (3.7 mm)
- Diameter Shield: 0.185 inch (4.7 mm)
- Diameter Jacket: 0.242 inch (6.15 mm)
- Temperature Range: -40°C to +85°C
- Attenuation (dB/100m): at 10MHz - 3.6, at 50MHz - 8.5, at 100MHz - 11.1, at 200MHz - 16.9, at 400MHz - 23.5, at 600MHz - 30.2, at 860MHz - 35.6, at 1000MHz - 39.5
Buy the Multicomp Series RG59 Coaxial Cable: RG59
Purchase Multicomp RG59 coaxial cable today and experience reliable high-frequency data and video transmission. With a 75-ohm impedance, solid PE dielectric, copper braid shield, and PVC jacket, it ensures minimal signal loss and maximum durability. Ideal for CCTV, security systems, and broadcasting, this cable operates up to 1GHz, withstands voltage surges of 1700V, and functions comfortably between -40°C and +85°C. Efficient, durable, and easy to install for all your communication needs.
Get Multicomp RG59 coaxial cable today—designed for high-frequency signal transmission with excellent shielding and durability for CCTV and broadcast needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO RG59?
You can click on the BUY or RFQ button to purchase RG59 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part RG59?
You can download the RG59 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of RG59?
MULTICOMP PRO
