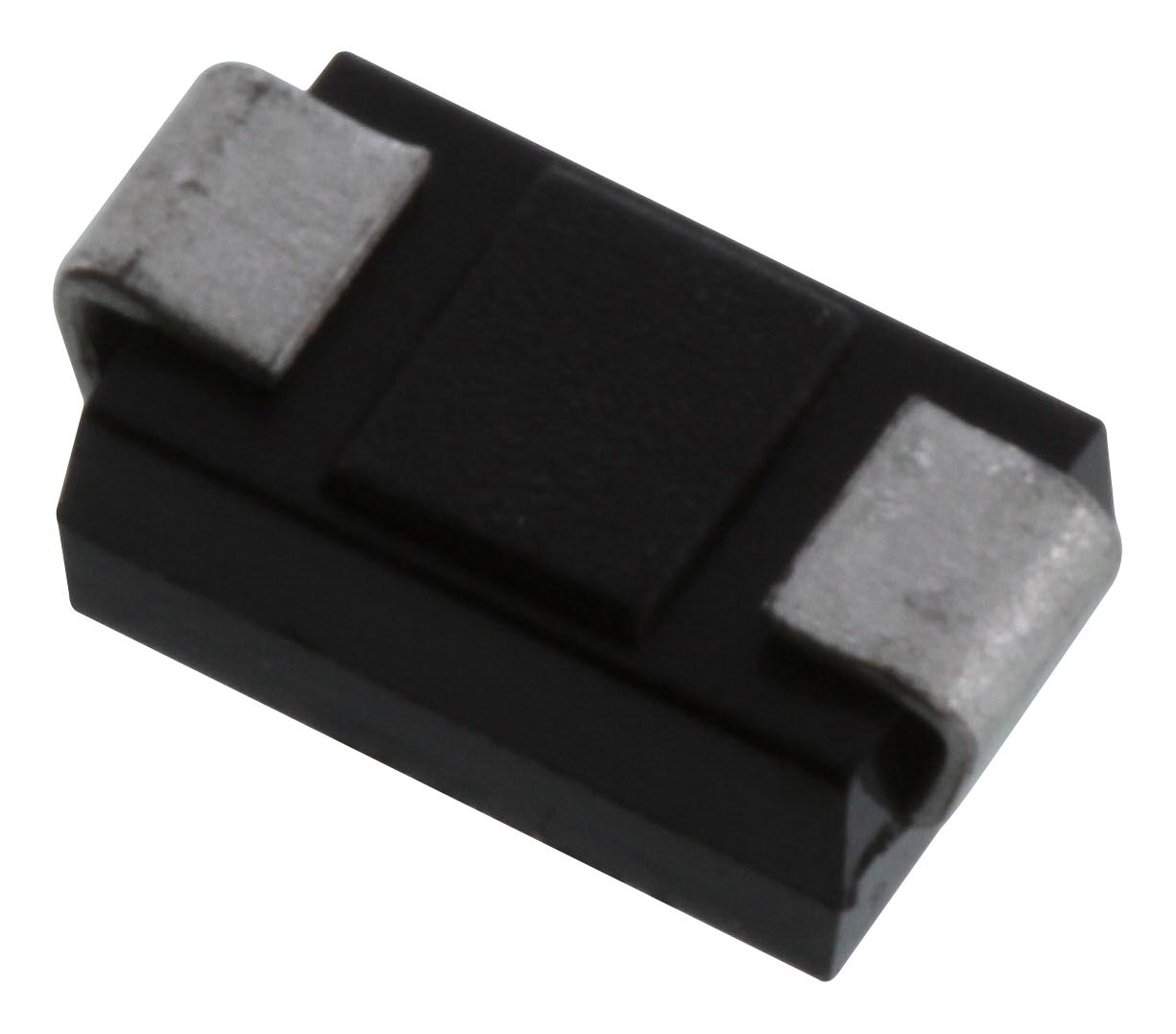

MULTICOMP PRO SMAJ30CA Transient Voltage Suppressor Diode
This surface mount transient voltage suppressor diode offers reliable protection for electronic circuits against voltage transients. Designed with a plastic UL 94-0 rated case, it features fast response times—less than 1.0ns for unidirectional and less than 5.0ns for bidirectional devices—making it ideal for protecting sensitive components from voltage spikes. With a maximum power dissipation of 400 Watts and ratings up to 170V, it suits various industrial and electronic applications. The device is lightweight, compact, and suitable for surface mount assembly, ensuring durability and high performance in demanding environments.
MULTICOMP PRO SMAJ30CA Transient Voltage Suppressor Diode Specifications:
- Case: Molded Plastic, UL 94V-0 rated
- Maximum Power Dissipation: 400 Watts at 25°C
- Peak Power Dissipation: 400 Watts at 1ms pulse
- Peak Forward Surge Current: 40 Amps (8.3ms single half sine wave)
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Reverse Voltage: 5 to 170 Volts
- Maximum Ratings at 25°C ambient
- Dimensions: Inches: .060 x .181 x .049; Millimetres: 1.52 x 4.60 x 1.25
- Mechanical: Surface mount, compact, lightweight, lead-free construction
- Polarity: Cathode band indicates unidirectional device; none for bidirectional
- Response Time: Less than 1.0ns (uni-directional), less than 5.0ns (bi-directional)
- Clamping Voltage: Varies with rated breakdown voltage; typical 17V to 193V at specified test currents
- Surge Current: 40A for 8.3ms pulse
- Reliability: High in industrial power supply protection, fast transient response.
Buy the Unidirectional and Bidirectional SMAJ30CA – Reliable Transient Voltage Suppressor for Industrial Applications
Enhance your circuit protection with the SMAJ30CA transient voltage suppressor diode, designed for surface mount applications. With a maximum power rating of 400 Watts and a maximum reverse voltage of 170V, it provides fast response times below 1.0ns for unidirectional and 5.0ns for bidirectional devices. Its robust molded plastic case conforms to UL 94V-0 standards, ensuring safety and durability. Ideal for sensitive electronic equipment, this TVS diode protects against voltage spikes, surges, and transients, ensuring reliable performance across various industrial environments. Purchase online today for quick and secure delivery.
Get Multicomp SMAJ30CA today—built for precision and long-lasting durability in circuit protection.
